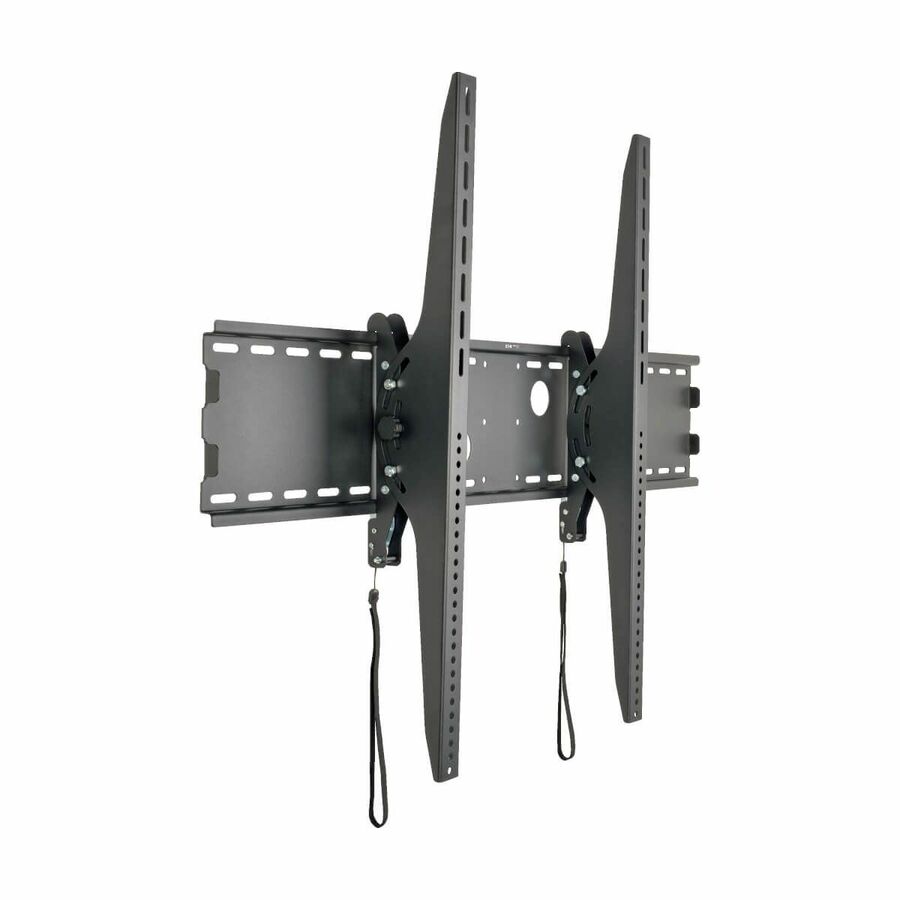

Tripp Lite by Eaton Display TV LCD Wall Monitor Mount Tilt 60" to 100" TVs / Monitors / Flat-Screens
350 lb Load Capacity - Metal - Black
- SKU
- DWT60100XX
- Category
- Mounting Kits
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- DWT60100XX
- Category
- Mounting Kits
Overview
Tripp Lite's VESA-compliant DWT60100XXTilt Flat-Screen Wall Mount's low-profile design features an open frame for easy wall access and optimal flexibility for display positioning, allowing you to effortlessly reposition your display at any time, even after installation. It is ideal for freeing up valuable space in your workstation. The DWT60100XX packs a lot of functionality into an unobtrusive frame. It has a tilt adjustment with a wide range of motion (-15° to 15°) for improved viewing angles in applications where the audience is located below the display. Its durable, all-metal construction with scratch-resistant, powder-coat finish supports up to 350 lbs. and fits most 60" to 100" flat-screen displays. It comes with all the necessary mounting hardware. To help you install it perfectly, the DWT60100XX features a horizontal adjustment to compensate for off-center wall studs. For peace of mind, the DWT60100XX comes with a 5 year warranty. More from the Manufacturer
LC/LC Connectors and Premium Construction
The N820-02M comes with widely compatible dual LC connectors that are thoroughly tested to ensure they meet Tripp Lite's stringent insertion loss standards. The connectors' edges are also beveled and color coded for easy and secure connection throughout your network. The N820-Series is OM3-rated, designed for 10Gb Ethernet networks and is also backward compatible with existing 50/125 fiber.
The N820-02M is manufactured using top quality materials. With 10Gb 50/125 duplex fiber, a Low-Smoke, Zero Halogen (LSZH) jacket, sturdy connectors and fiber made from glass instead of a polymer, Tripp Lite's fiber optic cables are made to last in high-demand data center and networking applications.
Lifetime Product Warranty and Environmentally Responsible Design
When you choose this genuine Tripp Lite cable, you get superior performance plus peace of mind! We're so confident of the quality of the N820-02M that we warrant it to be free from defects in material and workmanship—for life! The N820-Series is compliant with RoHS (Reduction of Hazardous Substances) standards, reflecting Tripp Lite's commitment to environmental responsibility.
Why Choose Tripp Lite?
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect and protect your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
Warranty
Limited Warranty: 5 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Fits most flat-panel displays from 60 to 100 in.
- Hangs out of sight for a sleek, professional appearance
- -15° to +15° tilt capability for wide range of motion
- 5-year warranty
- Supports up to 350 lb.
Specifications
| Package Contents |
|
|---|---|
| Product Type | Wall Mount |
| Device Supported | Flat Panel Display |
| Manufacturer Part Number | DWT60100XX |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 17.36 lb |
| Durability | Scratch Resistant |
| Features | Tilt, Horizontal Adjustment, Adjustable Viewing Angle, Durable |
| Manufacturer | Eaton Corporation |
| Product Model | DWT60100XX |
| Product Name | Tilt Wall Mount for 60" to 100" Flat-Screen Displays |
| Maximum Load Capacity | 350 lb |
| Brand Name | Tripp Lite series |
| Country of Origin | China |
| Height | 32.76" |
| Width | 44.88" |
| Depth | 5.12" |
| Environmentally Friendly | Yes |
| Minimum Screen Size Supported | 60" |
| Maximum Screen Size Supported | 100" |
| VESA Mount Compatible | Yes |
| Number of Displays Supported | 1 |
| Mounting Pattern | 400 x 200, 400 x 400, 600 x 400, 800 x 400, 800 x 600, 1000 x 400, 1000 x 600, 200 x 200, 1000 x 800 |
| Product Color | Black |
| Color Family | Black |
| Product Material | Metal |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
