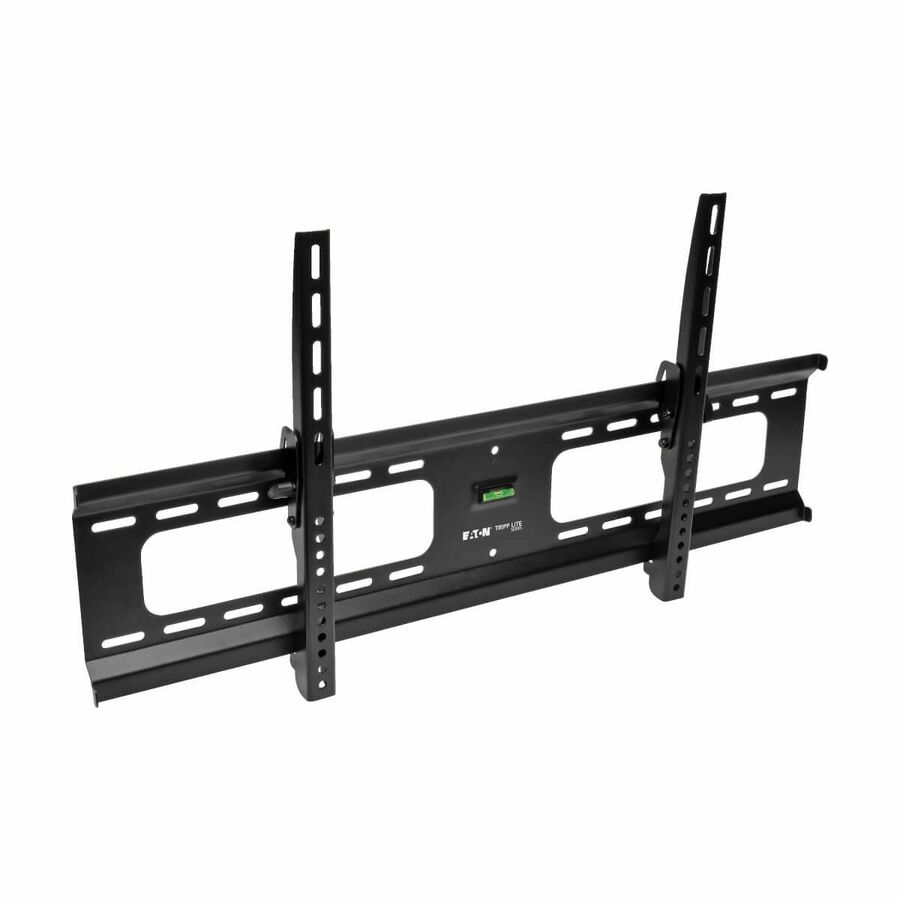

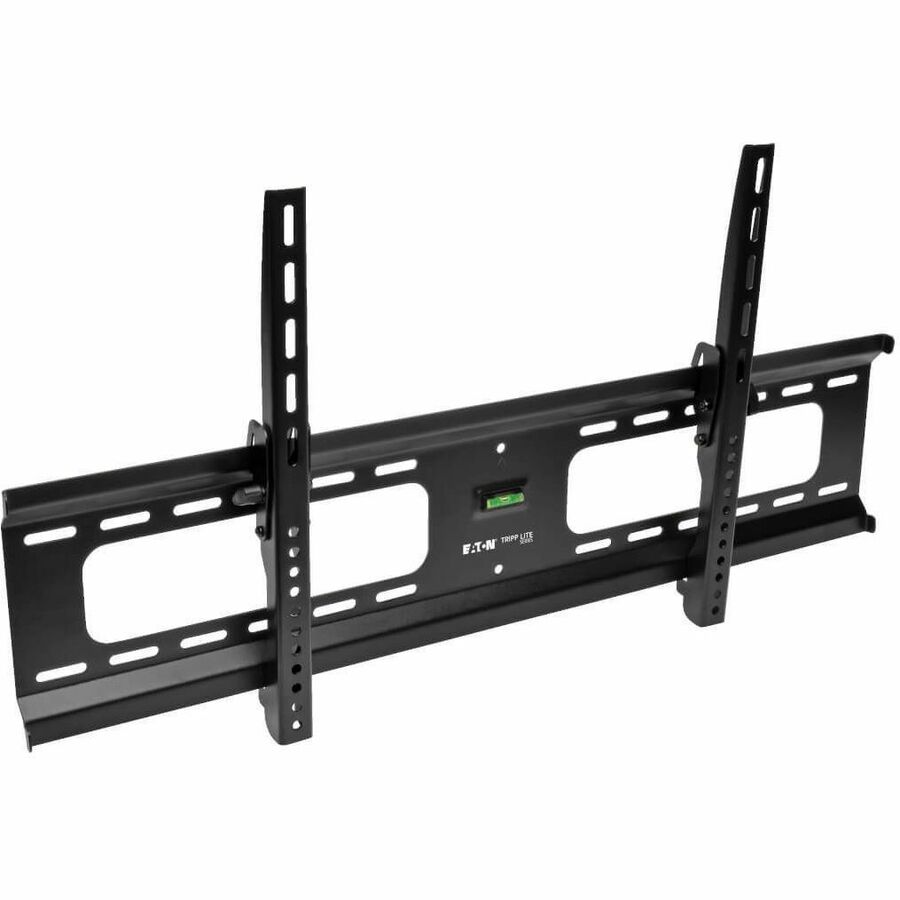

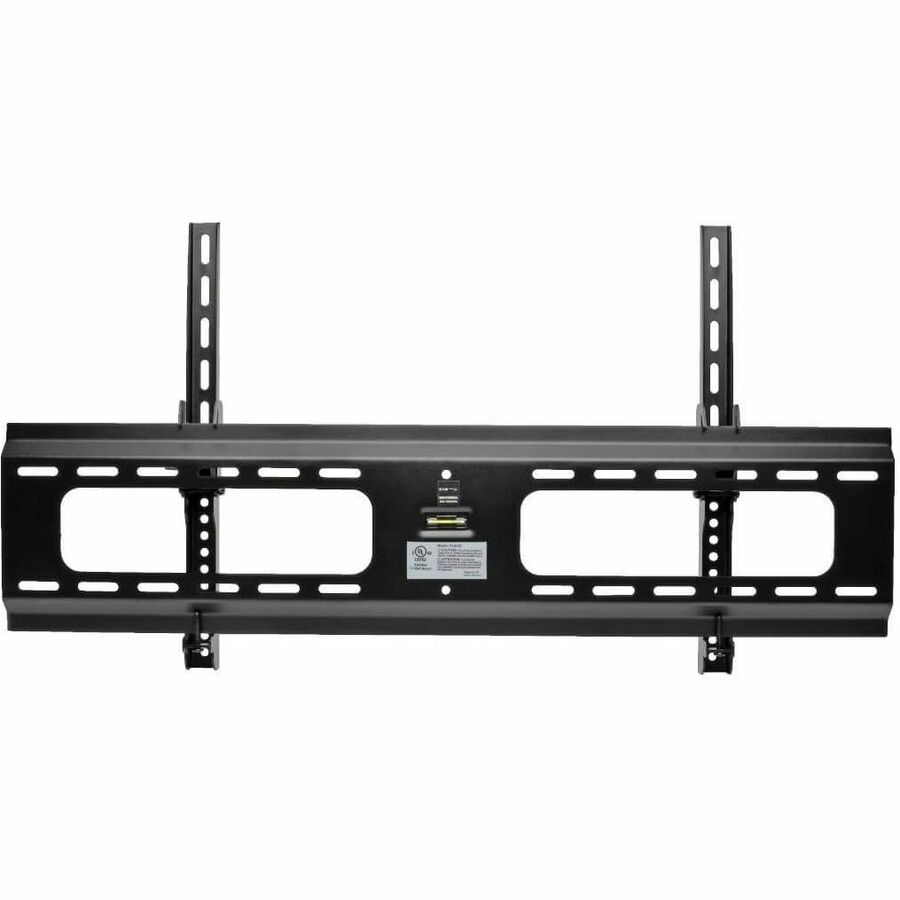

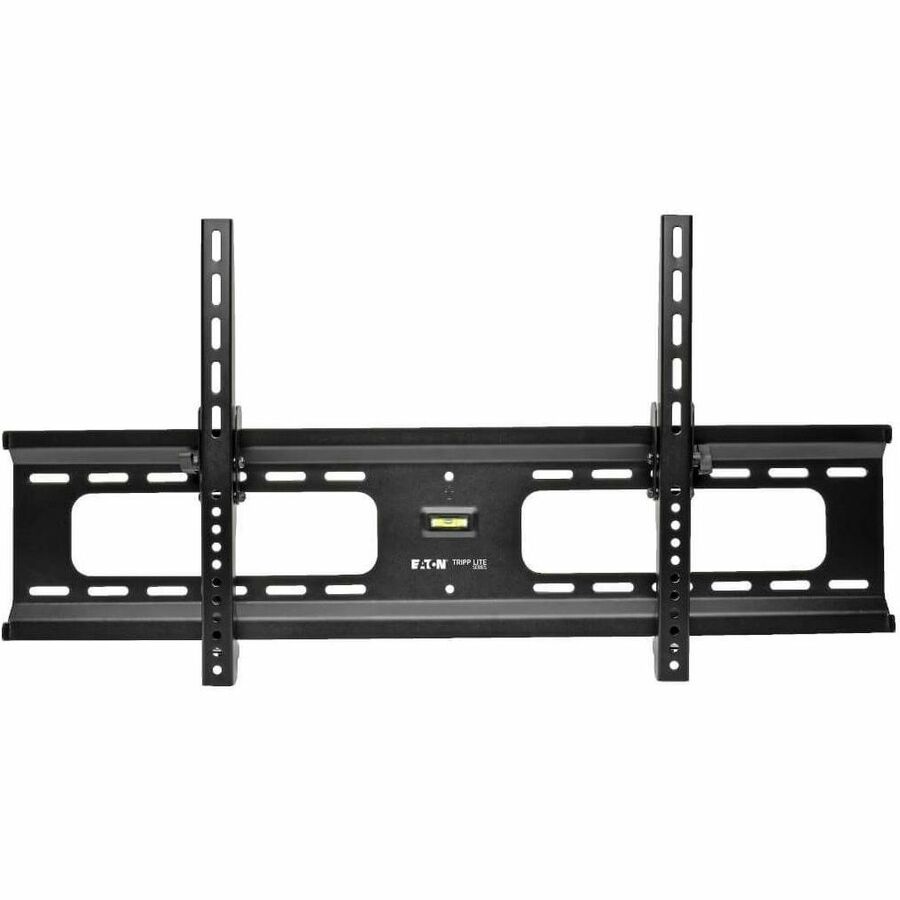

Tripp Lite by Eaton Heavy-Duty Tilt Wall Mount for 37" to 80" TVs and Monitors Flat or Curved Screens UL Certified

Overview

The VESA-compliant DWT3780XUL Heavy-Duty Tilt Wall Mount allows you to mount your flat-panel or curved-screen television, monitor or other display on the wall. Recommended for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most displays from 37 to 80 inches.

A -10° to 0° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Adjusting the tilt angle is simple using the easy-grip twin knobs located on the wall plate.

The mount is concealed behind the display to give a sleek, professional appearance. An open back enables easy access to cabling. Built-in bubble level allows accurate wall plate leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 pounds. Mounting hardware included.

Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm.

This mount has been tested in accordance with UL Standard 2442.

Features

Mounts Your TV or Monitor to the Wall

• Fits most flat-panel or curved-screen televisions, monitors and other displays from 37 to 80 in.

• Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants

• Mounts out of sight behind display for sleek, professional appearance

• Mounting hardware included

Convenient Angle Adjustment

• -10° to 0° tilt capability provides comfortable viewing from multiple angles

• Improves viewing angles in applications where audience is below the display

• Easy-grip knobs allow simple adjustment of tilt angle

Durable Metal Construction

• Supports up to 165 lb.

• Open architecture enables easy access to cabling

• Built-in bubble level for accurate display leveling

• Scratch-resistant powder-coated finish

• Tested in accordance with UL Standard 2442

More from the Manufacturer

Designed for Better Viewing Comfort

The DWT3780XUL adjusts to optimize viewing angles and makes the most of your display environment. Its -10° to 0° tilt range helps to minimize glare, provide comfortable viewing angles and reduce viewer fatigue.

Durable Construction, UL Certification

The DWT3780XUL’s durable, all-metal frame supports displays weighing up to 165 lb. and withstands the stress of repeated adjustments and use in common areas. Its scratch-resistant powder-coat finish tolerates frequent handling. This mount is tested and certified to UL Standard 2442 for wall mounts.

VESA Compliance

VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for products such as flat-panel TVs and monitors. To comply with VESA standards, most manufacturers use a series of universal mounting hole patterns on the backs of the products. The DWT3780XUL is guaranteed to work with VESA-compliant displays with hole patterns 200 mm x 200 mm, 300 mm x 300 mm, 400 mm x 200 mm, 400 mm x 400 mm, 600 mm x 400 mm and 800 mm x 400 mm. To ensure that the DWT3780XUL is right for your display, measure the vertical and horizontal distances between the holes on the back of the display or refer to the display’s owner’s manual.

Easy Installation

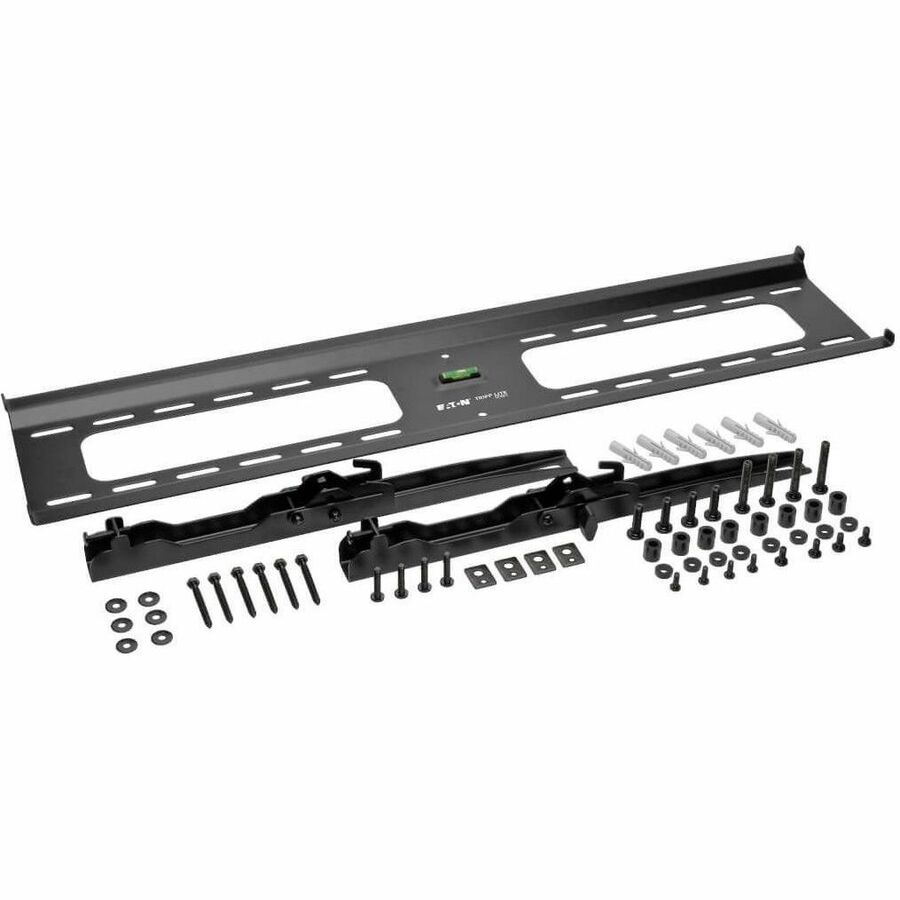

The DWT3780XUL comes with all the hardware you need for installation. The included fasteners enable installation on walls with timber or masonry construction, including wooden studs, cinder blocks, bricks and concrete. Installation is simple: just mount the wall frame, connect the display bracket and hang the display. For accurate leveling of your display, the DWT3780XUL is equipped with a built-in bubble level. Easy-to-use horizontal adjustment compensates for off-center wall studs. An open back means you can easily access cabling, even after mounting.
