Eaton Tripp Lite Series DataShield In-Line Surge Protector for Network and Phone Lines, 1-Line RJ45

SKU: DNET1
Category: Surge Suppressors/Protectors

MSRP$42.71

$32.04

Save 25%

In stock: 13,489

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: DNET1
Category: Surge Suppressors/Protectors

Overview

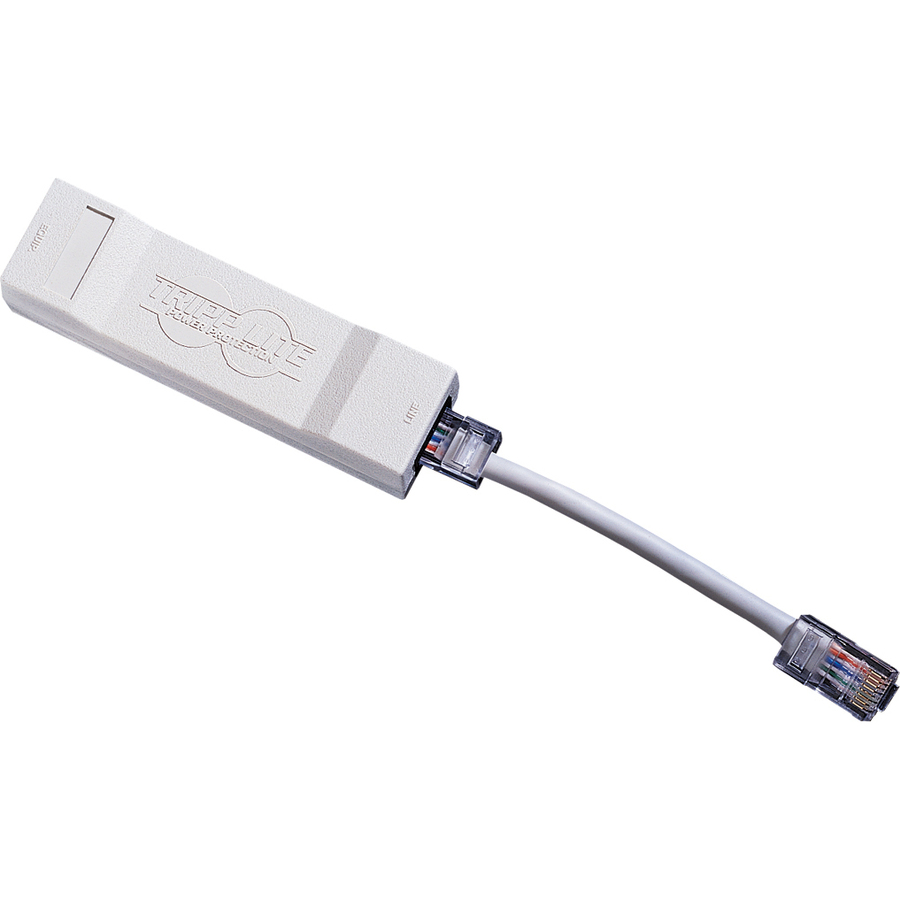

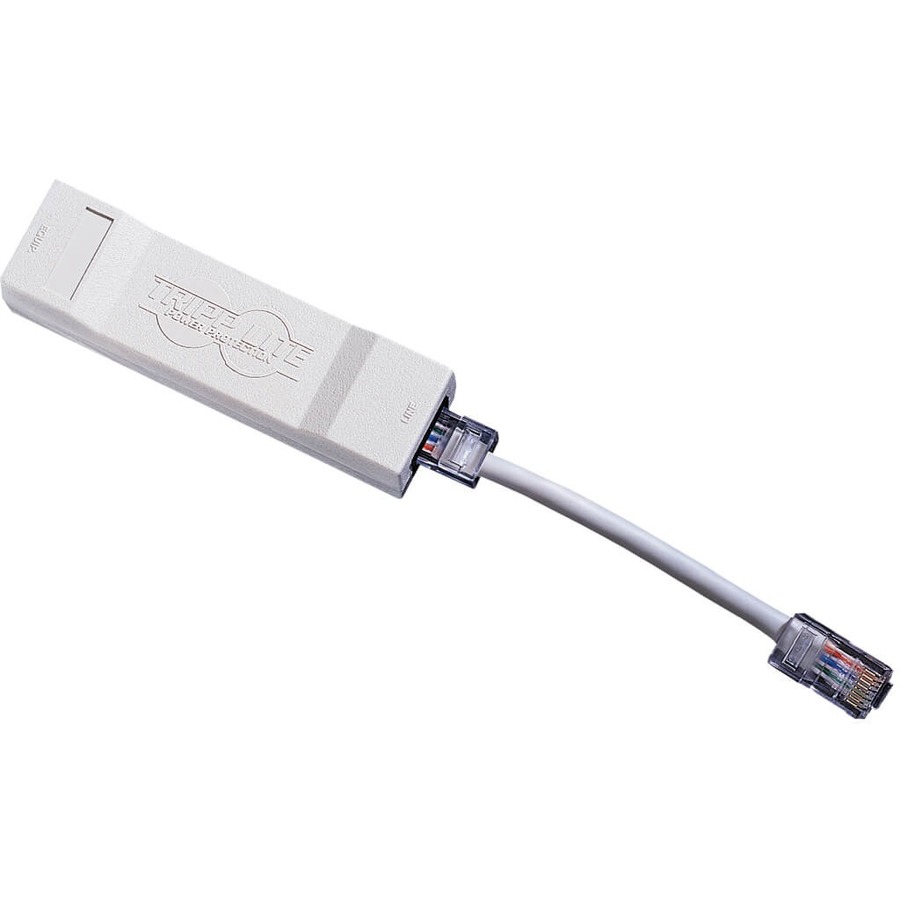

Tripp Lite's DNET1 offers network ethernet line surge suppression for 100Base-T, 10Base-T, Token Ring, AS400/Sys3x and RS422 applications. Convenient RJ45 input and output connections with included 5 inch ethernet patch cable allows convenient placement at the protected device network connection. Surge suppression is handled with balanced arrays of high-speed avalanche diodes that divert excess energies created by electrostatic discharges, faulty wiring or lightning away from network interface connections. Tripp Lite network surge suppressors reduce blown NIC cards, garbled network transmissions, system lock-ups and hard equipment failure by safely shunting dataline surges to ground. Six inch heavy guage grounding lead connects to designated grounding lugs available on the back panel of most network workstations and pieces of internetworking equipment. Lifetime warranty.SUPPRESSION: 1 set RJ45 in/out jacks, protects wires 1-8, 7.5V clamping

Warranty

Limited Warranty: Lifetime

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

Network Ethernet line surge suppression for 100Base-T, 10Base-T, Token Ring, AS400/Sys3x and RS422 applications
Ideal protection for NICs, terminals, hubs, printers, LAN equipment, and other internetworking devices
Protects against the effects of electrostatic discharge, faulty wiring and lightning
Reduces blown NIC cards, garbled network transmissions, system lock-ups and hard equipment failure
750A circuit breaker; 7.5V nominal clamping voltage
RJ45 input and output connections with included patch cable

Specifications

Package Contents	DNET1 Network Surge Suppressor DNET1 dataline protector 5-in. RJ45 patch cable Warranty information and instruction manual
Product Type	Surge Suppressor/Protector
Manufacturer Part Number	DNET1
Limited Warranty	Lifetime
Weight (Approximate)	3.73 oz
Manufacturer	Eaton Corporation
Product Name	DNET1 Network Surge Suppressor
Brand Name	Tripp Lite series
Country of Origin	China
Height	6"
Width	3"
Depth	2"
