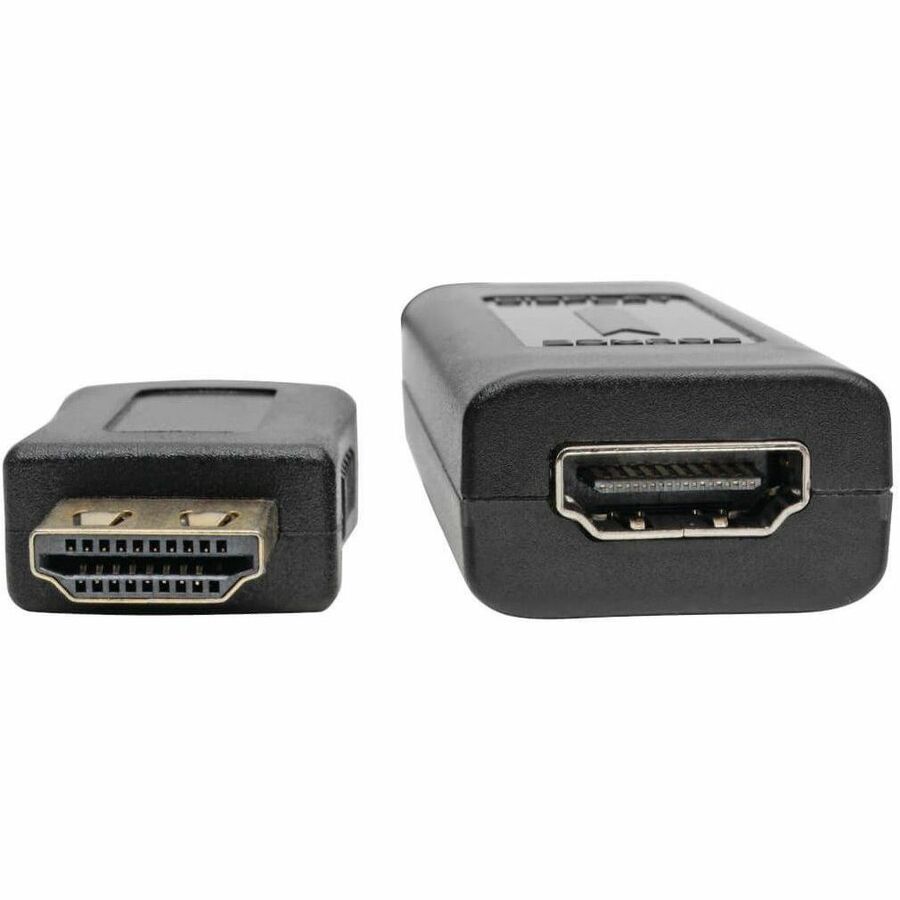

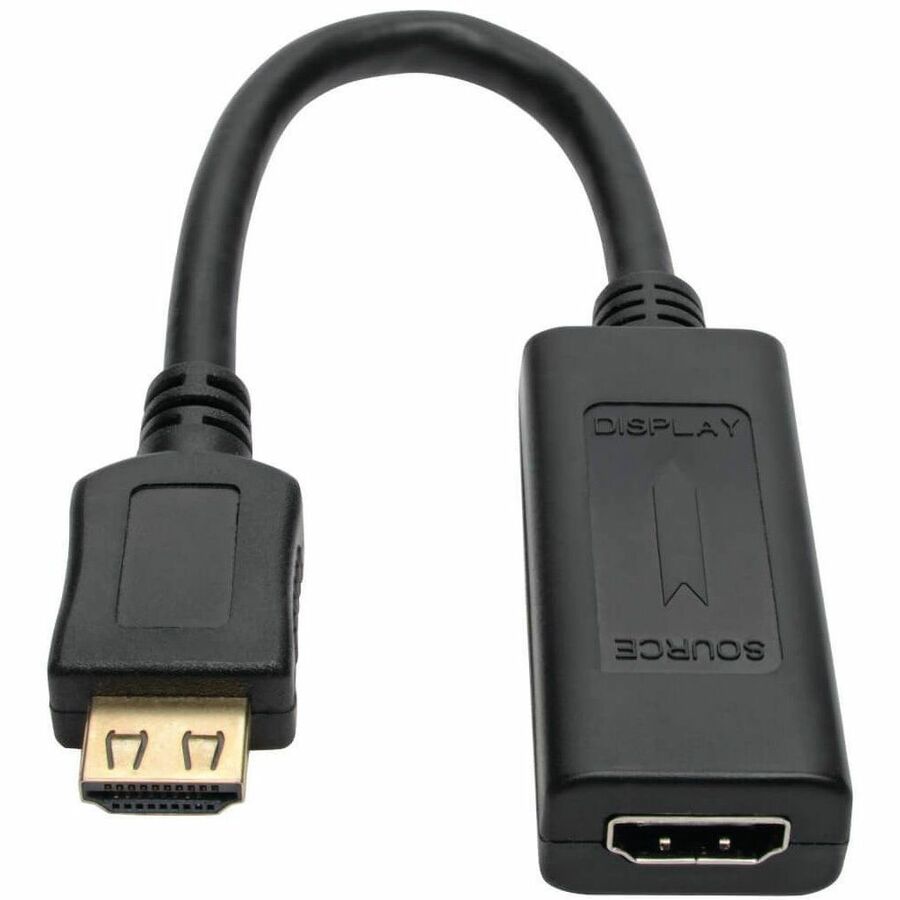

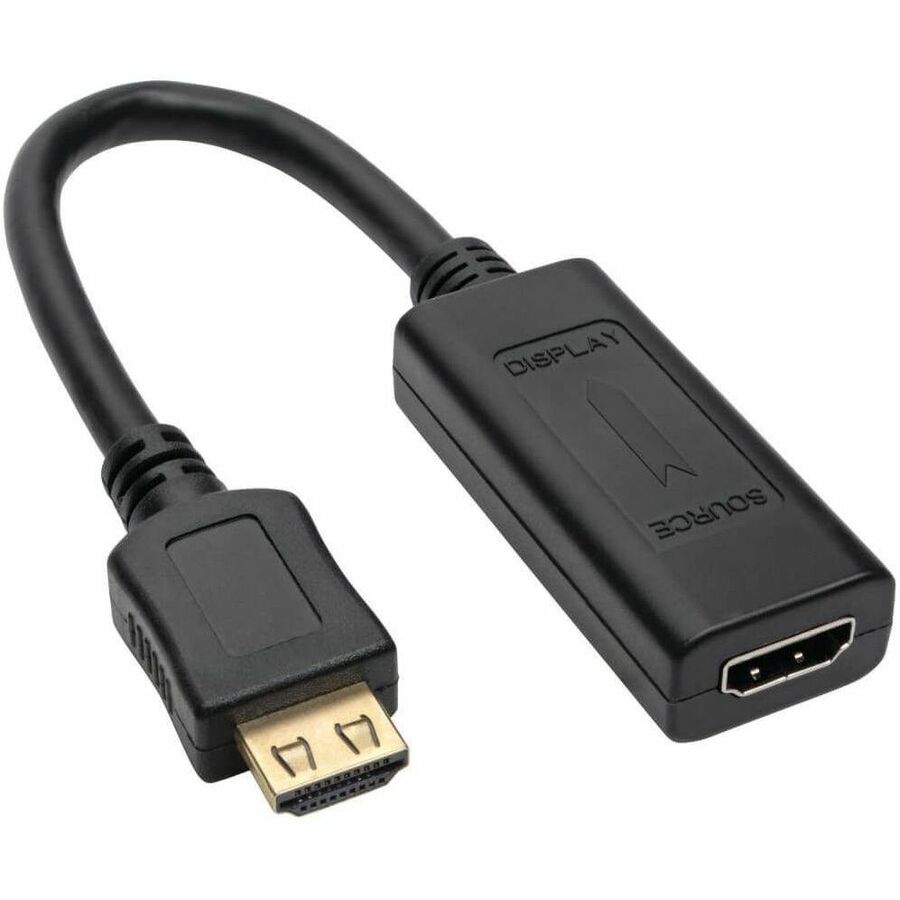

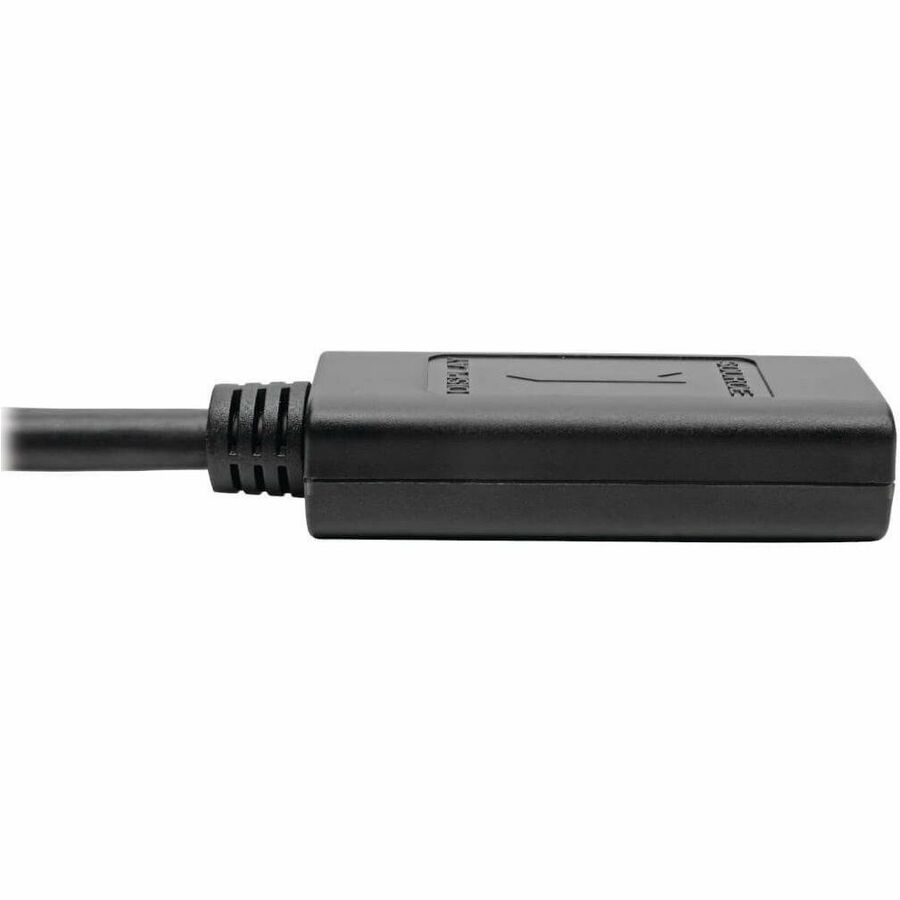

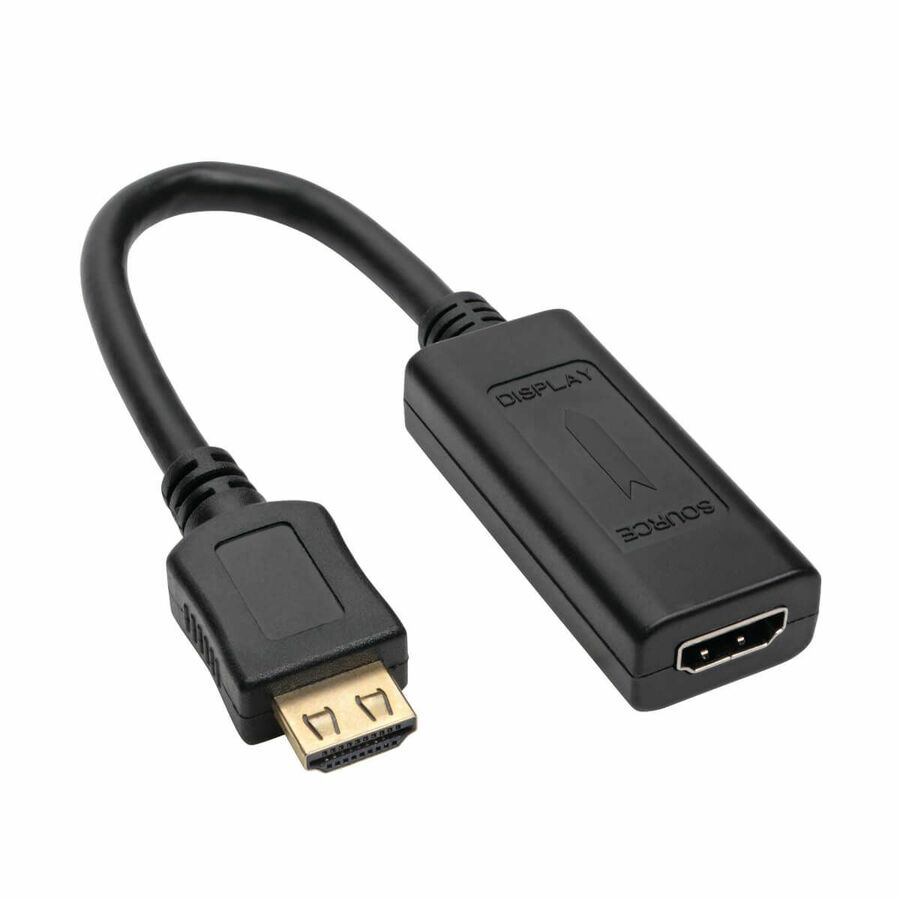

Eaton Tripp Lite Series HDMI Signal Booster / Extender Cable, 1920 x 1200 (1080p) 60Hz, Up to 125 ft. (38 m), (HDMI M/F), 1 ft, TAA

Tripp Lite's B123-001-60 HDMI Signal Extender increases the distance a 1080p @ 60Hz(or 1920 x 1200) signal can be transmitted beyond the recommended 16 ft.(5 m.). It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 60Hz, at a maximum distance of 125 ft. from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p @ 60Hz(or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD.(Lengths over 100 ft. are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable. Simply connect the longer cable between the source and the B123-001-60, and the built-in cable between the adapter and the monitor/TV. Software or drivers are not required. HDCP compliant. Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases.

• The B123-001-60 has been designed for use with Tripp Lite P568-Series HDMI cables. To ensure maximum distance and performance, it is recommended that you use Tripp Lite P568-Series HDMI cabling. For distances over 75-ft, 24AWG cable such as Tripp Lite's P568-100-HD is required.

• Although most installations will not require power, a Micro USB port is provided in the event power is needed. Using a Micro USB cable(such as Tripp Lite's UR05C-Series), connect the Micro USB port to a USB wall charger, the USB port on your monitor, or the USB port on a computer.

More from the Manufacturer

Supports 1080p at a 60 Hz Refresh Rate

The B123-001-60 supports HD video resolutions up to 1920 x 1200 at 60 Hz. It extends 1080p signals up to 125 feet from the source. Its 60 Hz refresh rate ensures smooth motion rendering consistent with all standard North American NTSC HDTVs. This unit is designed for use with Tripp Lite’s P568-series HDMI cables; for installations longer than 75 feet, the 24 AWG P568-100-HD is recommended.

Convenient Plug-and-Play Setup

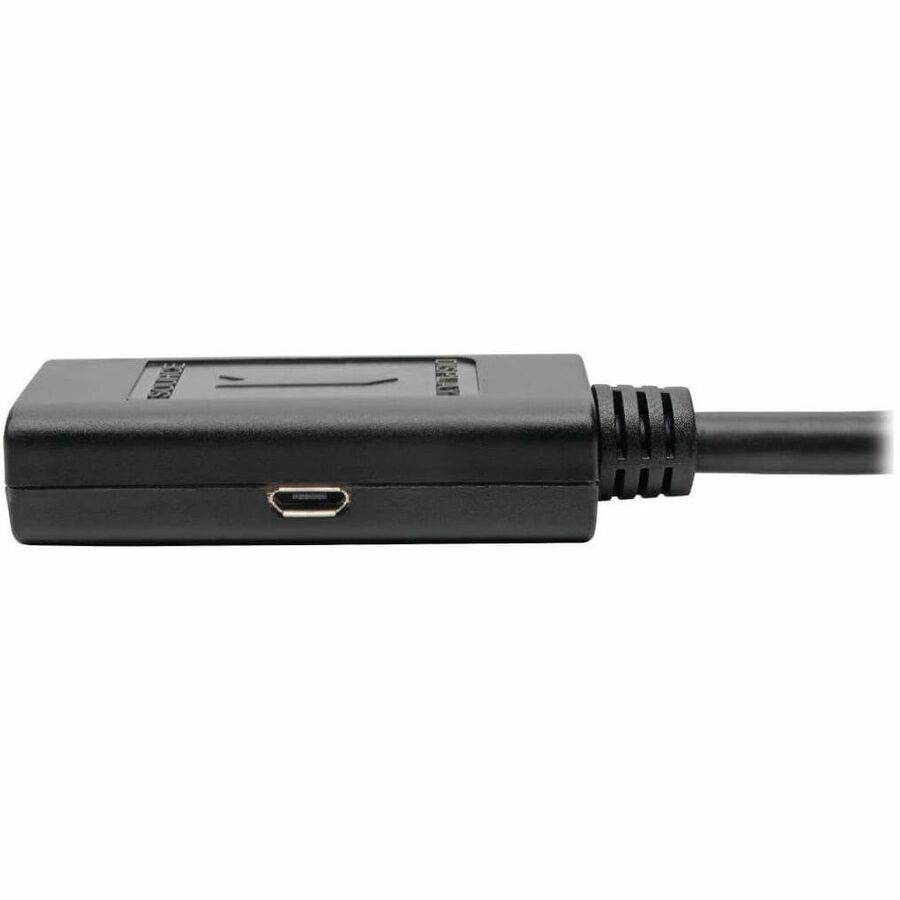

With no software or drivers to install, the B123-001-60’s plug-and-play setup gets your application up and running quickly. An internal green LED indicates the unit is receiving a signal from the source device. Most installations will not require power, but if one does, this unit features a USB Micro-B port. Simply connect a USB Micro-B cable to a computer, monitor or USB wall charger to receive power.

Works with the Latest Video & Hi-Fi Surround Sound Protocols

For maximum playback capability, the B123-001-60 is compliant with the latest HDCP and 3D digital video content standards. It is also compatible with DTS-HD, Dolby TrueHD and 7.1 channel surround sound for immersive hi-fi audio.

TAA-Compliant and Backed by a Three-Year Warranty

The B123-001-60 is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

The B123-001-60 comes with a three-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
