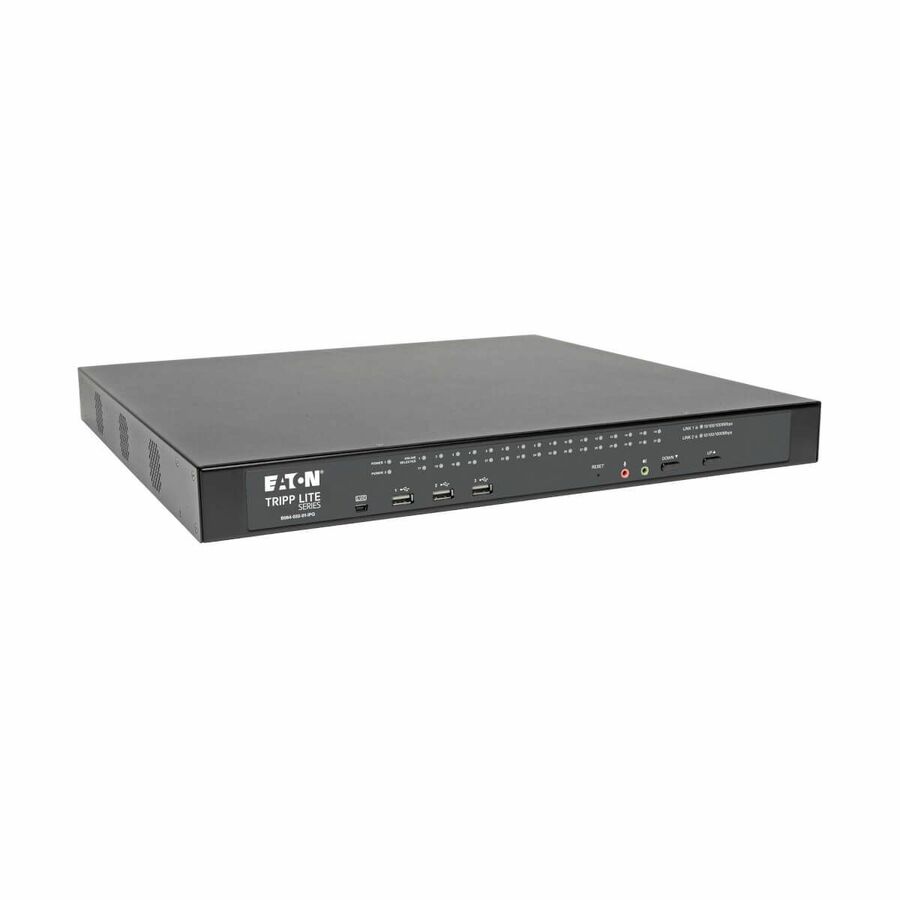

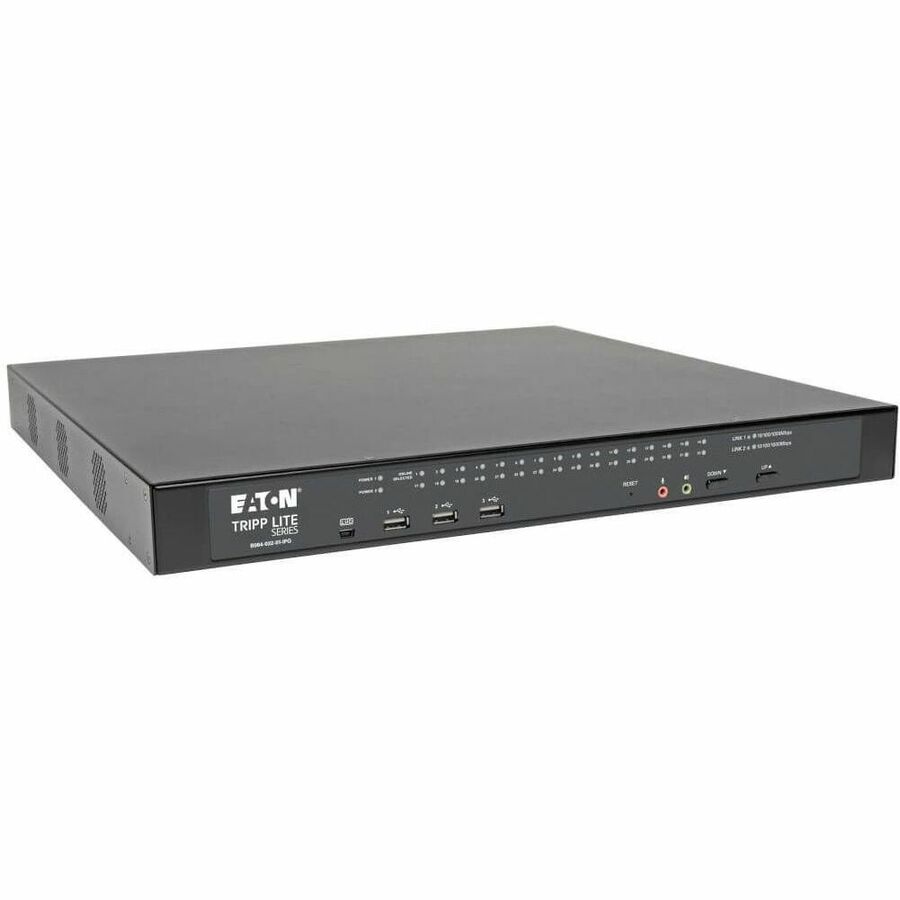

Tripp Lite by Eaton NetDirector 32-Port Cat5 KVM over IP Switch - Virtual Media 1 Remote + 1 Local User 1U Rack-Mount TAA

Control As Many As 32 Computers or Servers from Anywhere in the World

This NetDirector® Cat5 KVM switch offers BIOS-level access to multiple computers and servers in a complex, demanding IT environment. The B064-032-01-IPG provides complete control of up to 32 computers and/or servers directly, including blade servers, from a single monitor, USB keyboard and USB mouse. Dual redundant power supplies confirm the unit will continue running in the event one power supply fails, ensuring 24/7 reliability. A Laptop USB Console (LUC) port allows direct connection of a laptop for easy console operation of the KVM switch.

All-in-One Network Management for Critical Systems

The B064-032-01-IPG offers a comprehensive, cost-effective network management solution that installs in 1U of space in an EIA-standard 19-inch rack using the included hardware. No server-resident software is required, so server performance and reliability are never compromised. Flash-upgradable firmware over an Ethernet network fine-tunes compatibility with emerging standards.

Supports All Major Operating Systems and Most Web Browsers

The B064-032-01-IPG supports all major server platforms and VT100-based serial devices. Because compatibility is based on common hardware standards, rather than system software dependencies, almost any platform can be accommodated. Supported web browsers for users who log in remotely include Internet Explorer, Firefox, Mozilla, Safari, Opera and Netscape Navigator.

Simple Network Control That Gives You More Flexibility

This Cat5 KVM switch is designed to ease multi-server management in data centers, server rooms and other high-density environments. Built-in IP capability allows up to two users-one local and one remote-to access the network independently and simultaneously. An optional dial-in connection (modem port) is provided to ensure access in situations when the KVM switch is not available over the primary network. You may also select a connected computer using on-console pushbuttons, GUI (graphical user interface), OSD (on-screen display) or keyboard hotkey commands. An LED per KVM port indicates when a computer is connected to the port, when it is powered on and when it is selected.

High-Resolution On-Screen Display Offers Multi-Language Support

The advanced OSD with high-resolution video up to 1920 x 1200 (at 60 Hz) with 24-bit color depth provides a GUI with management tools, including custom port labeling, auto-scanning and panel array mode. The OSD may be set to display in English, German, Russian, Japanese, traditional Chinese and simplified Chinese.

Allows Connection of Either PS/2 or USB Keyboard and Mouse

PS/2 and USB console ports are included. Only one keyboard/mouse combination may be connected at a time.

Supports Both IPv4 and IPv6 Addresses

The B064-032-01-IPG supports IPv4, Link Local IPv6 Address and IPv6 Stateless Autoconfiguration protocols. You may set the IP address manually or have it automatically assigned via DHCP server (the default method).

Heightened Security of Every Connection

The B064-032-01-IPG offers three levels of password protection (super administrator, administrator and user) to prevent unauthorized persons from gaining access to connected servers/computers. Remote authentication support is provided via RADIUS, LDAP, LDAPS and Active Directory. The B064-032-01-IPG also incorporates advanced encryption technologies: 1024-bit RSA, 56-bit DES, 256-bit AES and 128-bit SSL. It also supports high-grade FIPS 140-2 level 1 security standards.

IP KVM Switch Provides Complete Control of Up to 32 Servers or Computers from Any Location

Tripp Lite's B064-032-01-IPG NetDirector® 32-Port Cat5 IP KVM Switch is the smart solution for controlling multiple computers and servers in a complex, demanding IT environment. Its rugged housing, premium connectors and superior functionality ensure trouble-free operation. The B064-032-01-IPG can control up to 32 servers/computers directly, including blade servers. It is compatible with USB connections using Tripp Lite B055-001-series server interface units and inexpensive Cat5/5e patch cables. Redundant dual power supplies ensure this KVM will continue running if the primary power supply fails. Built-in IP capability allows up to two users—one local and one remote—to access the network, either independently or simultaneously.

Typical Applications

Manage and control up to 32 servers or computers from an off-site location

Provide support and service to outsourced hardware

Keep mission-critical equipment in a data center or server room up and running 24/7

Provides Simple, Flexible Network Control

This KVM switch is designed for data centers, server rooms and other high-density environments. In addition to its built-in IP capability, an optional dial-in connection provides access when the primary network is unavailable. Each KVM port features an LED that lets you know when a computer is connected, powered on and selected. An advanced on-screen display (OSD) with high-resolution video up to 1920 x 1200 at 60 Hz provides a GUI (graphical user interface) with management tools, including custom port labeling, auto-scannng and panel array mode. The OSD may be set to display in English, German, Russian, Japanese, traditional Chinese and simplified Chinese.

Designed for data centers, server rooms and other high-density environments

Features an optional dial-in connection in case your primary network is unavailable

KVM port LEDs show power and connection status at a glance

Advanced on-screen display provides additional management tools

Advanced Technologies Ensure Heightened Security at Every Connection

Three levels of password protection (super administrator, administrator and user) and authentication support (via RADIUS, LDAP, LDAPS and Active Directory) prevent unauthorized people from gaining access to servers and computers.

Three levels of password protection

Authentication support via RADIUS, LDAP, LDAPS and Active Directory

Supports high-grade FIPS 140-2 level 1 security standards

Incorporates 1024-bit RSA, 56-bit DES, 256-bit AES and 128-bit SSL encryption technologies

Virtual Media Capability Allows Any Connected Computer to Access Storage Media

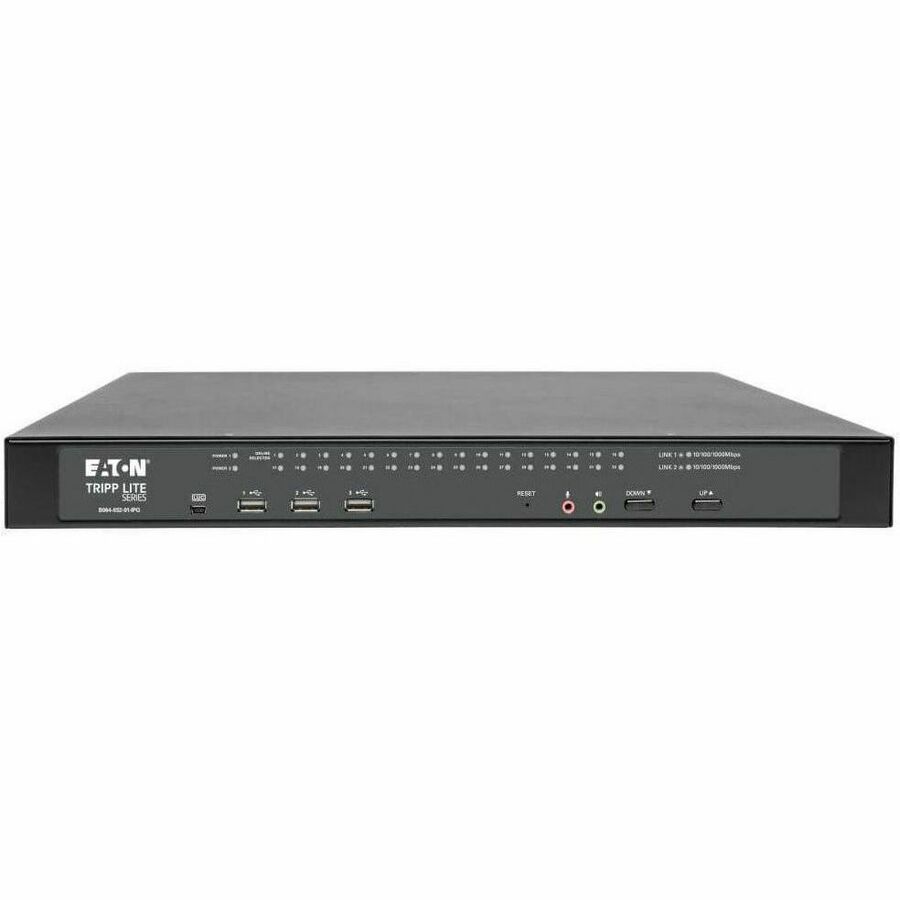

The B064-032-01-IPG features Virtual Media capability. That means any computer connected to the KVM via a server interface unit, such as a Tripp Lite B055-001-USB-V2 (sold separately), can access flash drives, DVD/CD drives and other storage media remotely, as though it were directly connected. This lets administrators perform diagnostics, install software and transfer files from across a network, reducing the need for on-site visits. Three USB ports are provided on the KVM’s front panel for use with Virtual Media or USB peripheral devices.

Virtual Media capability allows connected computers to remotely access storage media as though they were directly connected

Reduces the need to perform on-site software installations, file transfers and system diagnostics

Free Management Software Provides Access and Control from a Single Interface

Free NetDirector-AXS management software allows you to access and control the KVM from any location. From a single interface, you can remotely access server ports and manage KVM setttings. This software is available via the included CD or downloadable at www.tripplite.com/support.

... management software allows you access ports and control settings from a single interface

Software can be installed from the included CD or downloaded from Tripp Lite’s website

TAA-Compliant for GSA Schedule Purchases

The B064-032-01-IPG is compliant with the Federal Trade Agreements Act (TAA), making it eligible for GSA Schedule purchases and other federal procurement contracts.
