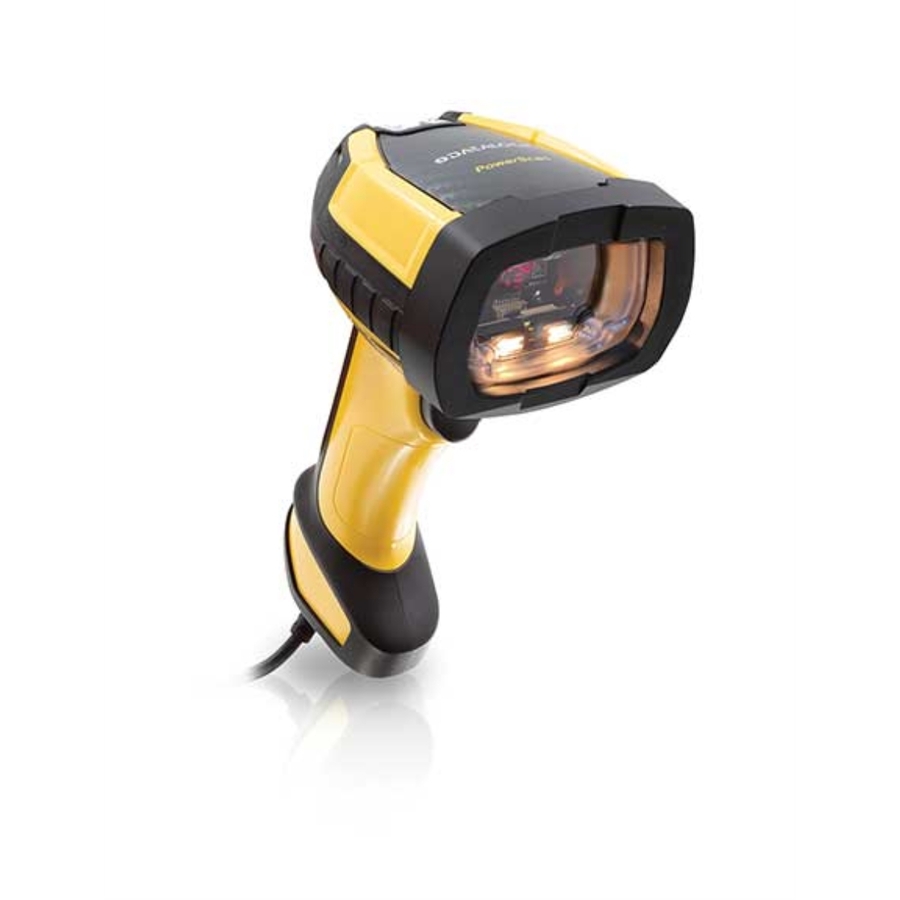

Datalogic PowerScan PM9600-HP Barcode Scanner Kit
Wireless Connectivity - 95.60" Scan Distance - Imager - Omni-directional - , Radio Frequency - Ethernet - Black, Yellow - Power Supply Included - IP65, IP67 - Industrial, Warehouse, Logistics, Manufacturing, Inventory, Picking, Assembly Line, Component Tracking, Sorting, Retail
- SKU
- PM9600-HP910RBK30
- Category
- Barcode Scanners
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Datalogic S.p.A through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PM9600-HP910RBK30
- Category
- Barcode Scanners
Overview
ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS
The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.
MOBILITY ENHANCES PRODUCTIVITY
The PowerScan 9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System?. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.
MODULARITY WITH THE BEST FLEXIBILITY
The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.
Highlights
- Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
- Increase productivity and performance by excluding the cable
Specifications
| Application/Usage | Industrial, Warehouse, Logistics, Manufacturing, Inventory, Picking, Assembly Line, Component Tracking, Sorting, Retail |
|---|---|
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Host Interface | Ethernet |
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | PM9600-HP910RBK30 |
| Connectivity Technology | Wireless |
| Durability | Water Resistant |
| Features | Beep, 3GL, Notification LED, Vibration, Ergonomic Design |
| Form Factor | Handheld |
| Input Current | 480 mA |
| Length | 5.5" |
| Manufacturer | Datalogic S.p.A |
| Product Model | PM9600-HP |
| Product Name | PowerScan PM9600-HP Barcode Scanner Kit |
| Product Line | PowerScan |
| Product Series | 9600 |
| Brand Name | Datalogic |
| Scanning Distance | 95.60" |
| Height | 7.8" |
| Width | 3.1" |
| Battery Capacity | 3350 mAh |
| Drop Specification |
|
| Scan Pattern | Omni-directional |
| Maximum Battery Recharge Time | 3.20 Hour |
| Image Sensor Type | Imager |
| Radio Frequency | Yes |
| Illumination Type | LED |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Product Color | Black, Yellow |
| Power Supply Included | Yes |
| Color Family | Dual Color |
| Illumination Color | White |
| Ingress Protection (IP) Rating | IP65, IP67 |
| Rugged | Yes |
| Field of View (Horizontal) | 38° |
| Field of View (Vertical) | 24° |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 10 mil |
| Minimum Element Resolution (PDF417) | 10 mil |
| Air Electrostatic Discharge (+/-) | 20kV |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Image Sensor Resolution | 1280 x 800 |
| Humidity (Non-condensing) | 0% to 95% |
