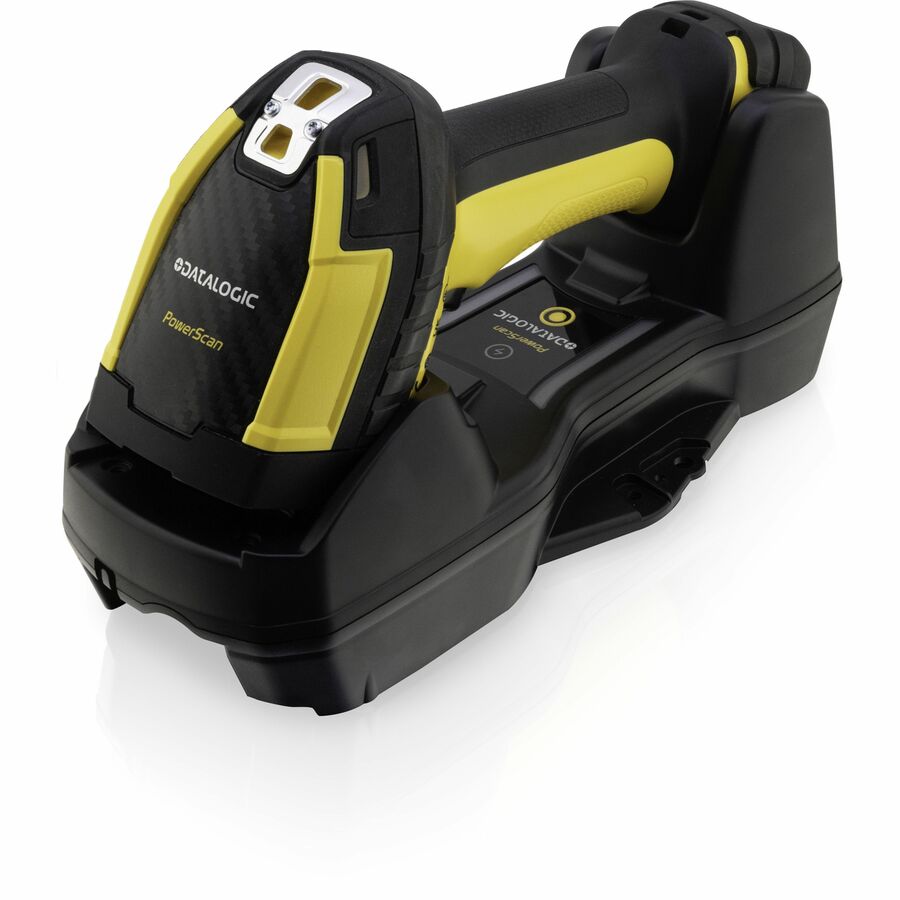

Datalogic PowerScan PM9600-HP Barcode Scanner Kit
Datalogic S.p.A

Datalogic PowerScan PM9600-HP Barcode Scanner Kit

Wireless Connectivity - 95.60" Scan Distance - 1D, 2D - LED - Imager - Area, Omni-directional - Bluetooth, Radio Frequency - Serial - Black, Yellow - Power Supply Included - IP65, IP67 - Serial - Industrial, Warehouse, Manufacturing, Logistics, Retail, Inventory, Assembly Line, Component Tracking, Picking, Sorting

SKU
PM9600-DKHP910RK20
Category
Barcode Scanners

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Datalogic S.p.A through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PM9600-DKHP910RK20
Category
Barcode Scanners

Overview

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS

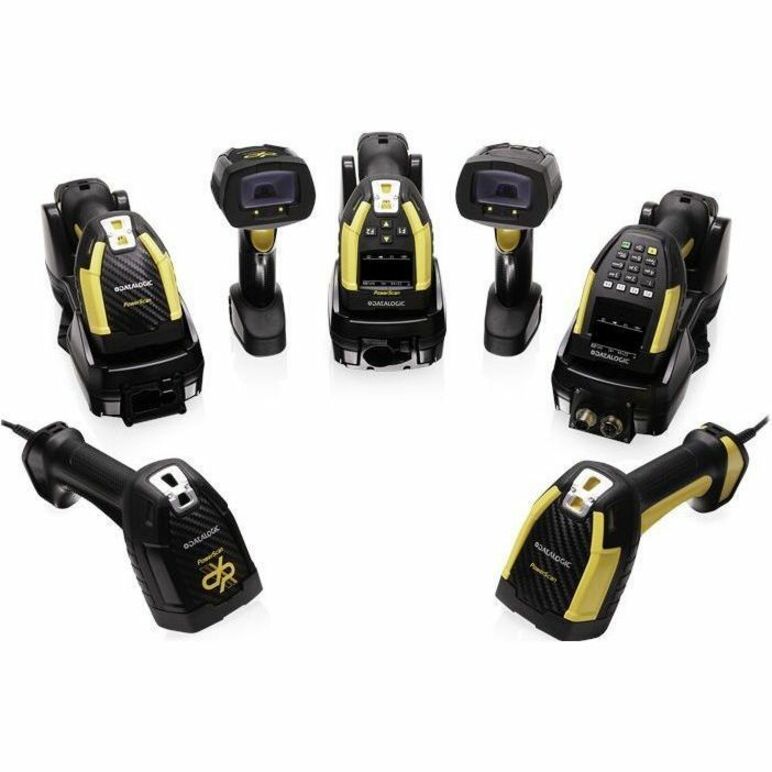

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.

MOBILITY ENHANCES PRODUCTIVITY

The PowerScan 9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System?. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.

MODULARITY WITH THE BEST FLEXIBILITY

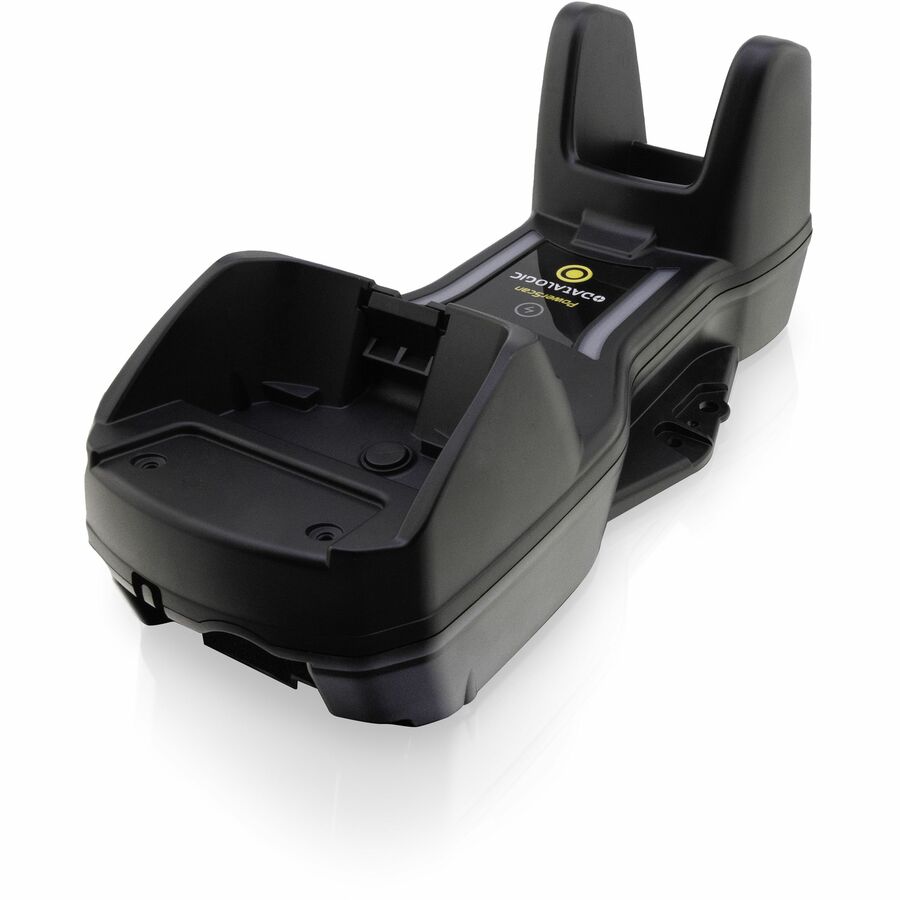

The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.

Highlights

  • Snappy omnidirectional reading on 1D, stacked and 2D codes, postal codes
  • Standard Range and High Performance models
  • Water and Particulate Sealing Rating: IP65 and IP67; Cradle IP65; 10 million hits trigger
  • Center of gravity design
  • Modular cradle design allowing interface expansion

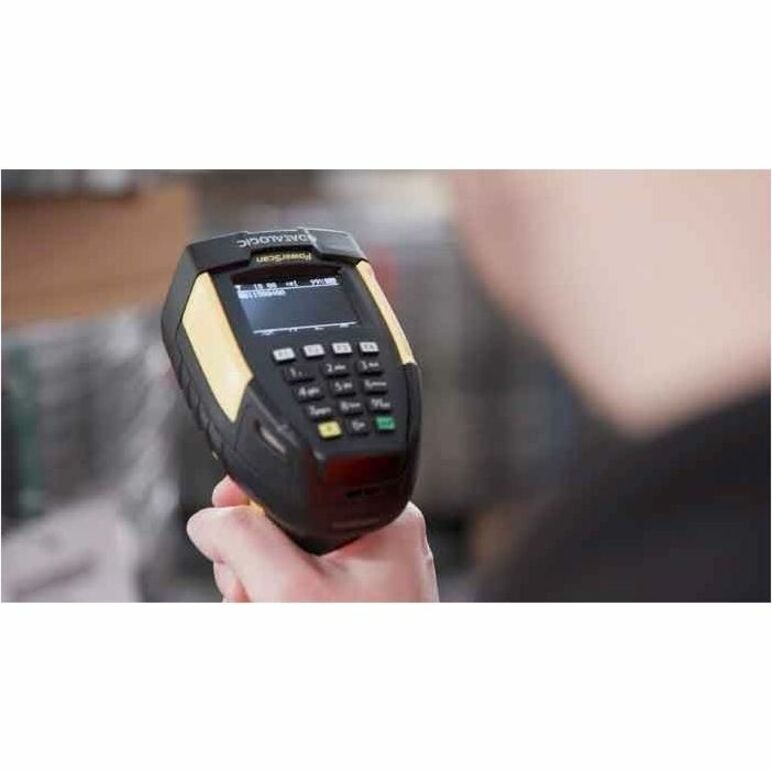

  • White light illumination High visibility OLED Display with 4-Keys /16-Keys keypad options
  • Datalogic's 3GL (3 Green Lights) technology and loud beeper for good-read feedback
  • Datalogic's Motionix motion-sensing technology
  • Wireless Charging reducing total cost of ownership
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI.

Specifications

Application/UsageIndustrial, Warehouse, Manufacturing, Logistics, Retail, Inventory, Assembly Line, Component Tracking, Picking, Sorting
Barcode Symbology Supported1D / Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar linear codes. 2D Codes: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Codee; Dot code Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites Digital Watermarking: Digimarc Barcodes (HP and DC models)
Battery ChemistryLithium Ion (Li-Ion)
Package Contents
  • 1 x PowerScan PM9600-HP Barcode Scanner
  • 1 x Cradle BC9630-910
  • 1 x Cable CAB-548
  • 1 x Power Supply 8-0935
  • 1 x Power Cord 6003-0941
Host InterfaceSerial
Product TypeBarcode Scanner Kit
Display ScreenYes
Manufacturer Part NumberPM9600-DKHP910RK20
Number of Keys16
Limited Warranty3 Year
Weight (Approximate)14.99 oz
Connectivity TechnologyWireless
DurabilityWater Resistant, Dust Resistant
FeaturesBeep, 3GL, Vibration, Notification LED, Ergonomic Design
Form FactorHandheld
Length5.5"
ManufacturerDatalogic S.p.A
Product ModelPM9600-HP
Product NamePowerScan PM9600-HP Barcode Scanner Kit
Product LinePowerScan
Product Series9600
Brand NameDatalogic
Scanning Distance95.60"
Light SourceLED
Height7.8"
Width3.1"
Environmentally FriendlyYes
Battery Capacity3350 mAh
BluetoothYes
Scanner RangeShort Range
Drop Specification
  • Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
Scan PatternArea, Omni-directional
Maximum Battery Recharge Time3.20 Hour
Image Sensor TypeImager
Radio FrequencyYes
Illumination TypeLED
Scan ModeTrigger
Storage Temperature-40°F (-40°C) to 158°F (70°C)
Product ColorBlack, Yellow
Power Supply IncludedYes
Color FamilyDual Color
Illumination ColorWhite
Ingress Protection (IP) RatingIP65, IP67
RuggedYes
Cable Type IncludedSerial
Scanning Capability1D, 2D
Field of View (Horizontal)38°
Field of View (Vertical)24°
Reading Angle (Skew)52°
Reading Angle (Pitch)52°
Reading Angle (Roll)360°
Maximum Ambient Light100000 lux
Minimum Print Contrast15%
Minimum Element Resolution (DataMatrix)10 mil
Minimum Element Resolution (PDF417)10 mil
Air Electrostatic Discharge (+/-)20kV
Operating Temperature-4°F (-20°C) to 122°F (50°C)
Image Sensor Resolution1280 x 800
Humidity (Non-condensing)0% to 95%
Environmental ComplianceRestriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
