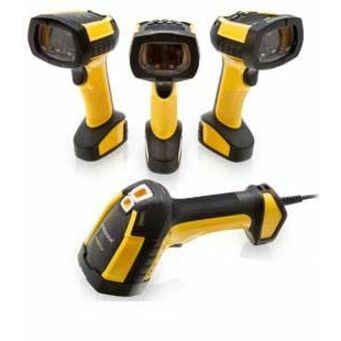

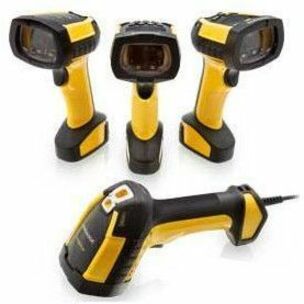

Datalogic PowerScan PM9600-AR Barcode Scanner
Wireless Connectivity - 65.58 ft Scan Distance - 1D, 2D - LED - Imager - , Radio Frequency - IP65, IP67 - Serial Cable Included - Warehouse, Logistics, Manufacturing, Inventory, Industrial
- SKU
- PM9600-DKAR433RB
- Category
- Barcode Scanners
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Datalogic S.p.A through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PM9600-DKAR433RB
- Category
- Barcode Scanners
Overview
Industrial Handheld Auto Range Scanner with extra-long range capabilities and high flexibility
ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!
The PowerScan 9600 Auto Range (AR) barcode series is designed to withstand the toughest environmental conditions of a warehouse. The PowerScan 9600 imagers have an ultra rugged center of gravity design with balanced weight to avoid any stress during daily activities. A very visible aiming system allows the precise aiming on the barcode, including codes that are either close or far away.
AUTO RANGE OPTIC TO FULFILL ANY CUSTOMER NEED
The PowerScan 9600 AR series is a top performer even on damaged barcodes or when aiming through shrink wrap, and is equipped with a very fast 1D/2D autofocus scan engine that allows the operator to move easily from a short distance of a few centimeters of a pick list up to more than 20 m / 65 ft to aim at the highest barcode of a warehouse rack, even in very challenging scanning conditions.
MOBILITY ENHANCES PRODUCTIVITY
The PowerScan 9600 AR cordless imagers further enhance operator efficiency and safety with a double option of radios: Datalogic's proprietary STAR Cordless System? or the new Bluetooth® 5.0 variant. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning.
The PowerScan 9600 family features Datalogic's Wireless Charging System. Based on inductive-charging technology, the Wireless Charging System eliminates interaction with battery contacts and pins which often get dirty, bent, or broken over time. This removes a key point of failure for devices used in industrial and retail functions.
The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communications such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.
Highlights
- Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
- Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
- LED aimer is a perfect choice for patient-facing applications
- Increase productivity and performance by excluding the cable
Specifications
| Application/Usage | Warehouse, Logistics, Manufacturing, Inventory, Industrial |
|---|---|
| Barcode Symbology Supported | 1D: Auto discriminates all standard 1D codes including GS1 DataBar? linear codes. 2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code Dot Code Postal Codes: Australian Post China Post IMB Japanese Post KIX Post Planet Code Portuguese Post Postnet Royal Mail Code (RM4SCC) Swedish Post Stacked Codes : EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E Composites |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | PM9600-DKAR433RB |
| Number of Keys | 16 |
| Weight (Approximate) | 15.70 oz |
| Connectivity Technology | Wireless |
| Features | Vibration |
| Form Factor | Handheld |
| Input Current | 770 mA |
| Length | 5.5" |
| Manufacturer | Datalogic S.p.A |
| Product Model | PM9600-AR |
| Product Name | PowerScan PM9600-AR Barcode Scanner |
| Product Line | PowerScan |
| Product Series | 9600 |
| Brand Name | Datalogic |
| Scanning Distance | 65.58 ft |
| Light Source | LED |
| Height | 7.8" |
| Width | 3.1" |
| Battery Capacity | 3300 mAh |
| Scanner Range | Auto Range |
| Drop Specification |
|
| Maximum Battery Recharge Time | 3.20 Hour |
| Image Sensor Type | Imager |
| Radio Frequency | Yes |
| Illumination Type | LED |
| Standby Current | 140 mA |
| Scan Mode | Trigger |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Illumination Color | Red |
| Ingress Protection (IP) Rating | IP65, IP67 |
| Rugged | Yes |
| Cable Type Included | Serial |
| Scanning Capability | 1D, 2D |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 20% |
| Minimum Element Resolution (Code 39) | 3 mil |
| Maximum Element Resolution (Code 39) | 20 mil |
| Minimum Element Resolution (DataMatrix) | 10 mil |
| Maximum Element Resolution (DataMatrix) | 100 mil |
| Operating Temperature | -22°F (-30°C) to 122°F (50°C) |
| Image Sensor Resolution | 1280 x 800 |
| Humidity (Non-condensing) | 95% |
