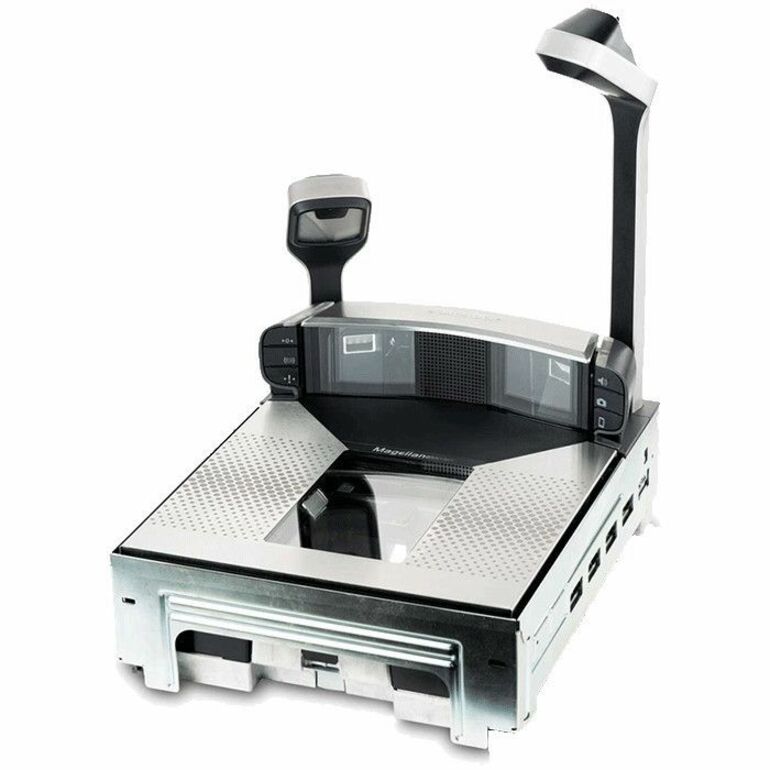

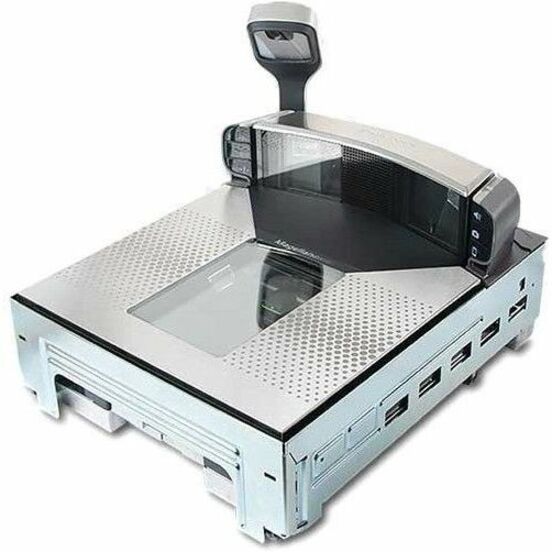

Datalogic Magellan 9800i Barcode Scanner

HIGH PERFORMANCE IN-COUNTER imaging SCANNER AND SCANNER/SCALE

The Magellan 9800i scanner/scale defines a new class of high performance bar code scanners for a worldwide market. With digital imagers in all planes, the 9800i scanner is the first scanner capable of reading both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier.

The image capture power of multiple imagers also increases the first pass read-rate on all types of bar codes because it fills in the gaps left between laser lines. With the 9800i scanner, highly truncated, damaged or small element labels are scanned at full-sweep speed, providing maximum scanning throughput and a better bottom line.

The striking new design improves ergonomics with its lower bonnet height to allow repositioning of POS or Self-Checkout touchscreens, payment terminals and receipt printers to better accommodate ADA customers. The centered speaker provides audio feedback with .wav files for greater fidelity. The large horizontal window is ergonomically positioned for both standing and seated cashiers.

An integrated, customer-facing mobile device reader enables retailers to easily engage in mobile commerce. This eliminates the need for an additional scanner, power supply, outlet, interface cable, POS port and mounting hardware. The customer can scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.

The 9800i scanner provides two scale options. First is the integrated 0.1 to 15.0 kg / 0.01 to 30.00 lb capacity scale; second is an integrated high-resolution scale for low weight/high per lb price items that provide additional revenue and higher profits

Shrink reduction ranks high among retailers' concerns and the Magellan 9800i scanner has key features designed to reduce shrink at the POS. Long, variable-weight produce that does not easily fit on the scale platter introduces the opportunity for shrink to occur. Hurried cashiers regularly lay this long produce partially on the adjacent check stand and therefore do not capture the full weight. Datalogic's new ScaleSentry technology senses when this type of shrink event occurs and automatically alerts the cashier to take corrective action. Additionally, the 9800i scanner accommodates Checkpoint?, Sensormatic and Nedap EAS antennas and loss prevention software to reduce shrink and Failure to Deactivate (FTD) events.

Remote Management is supported for OPOS, JavaPOS, IBM Director and Wavelink Avalanche. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
