Datalogic Magellan 9600i Barcode Scanner
Datalogic S.p.A

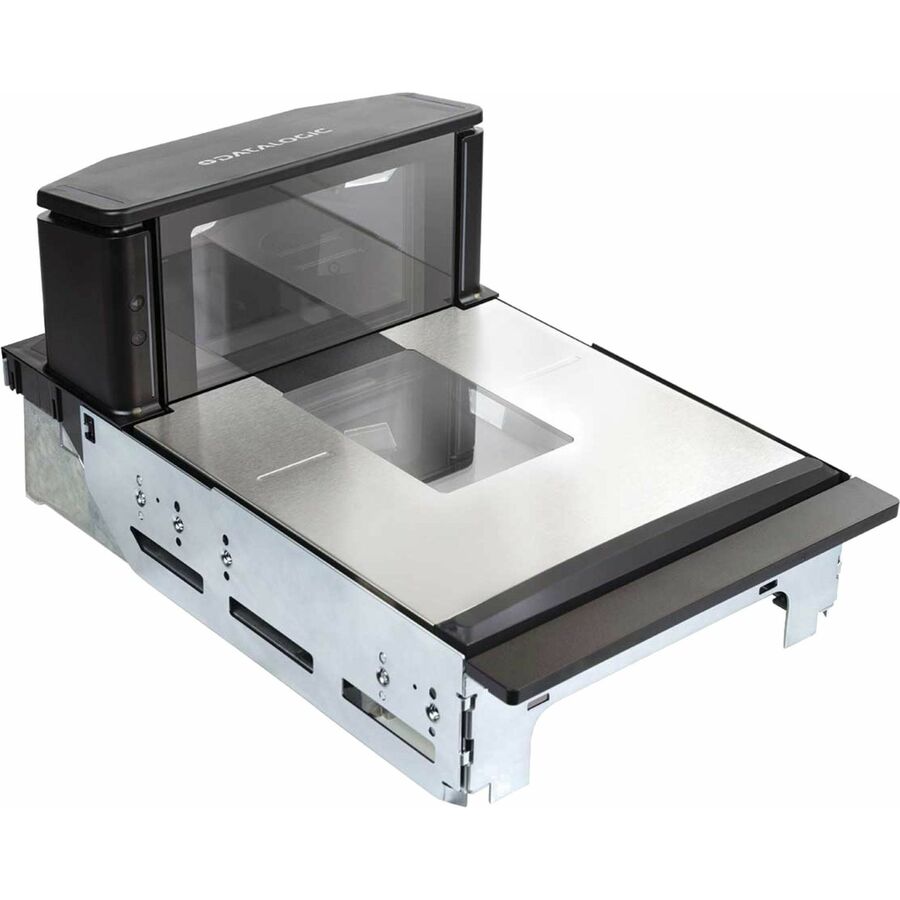

Datalogic Magellan 9600i Barcode Scanner

Cable Connectivity - , Infrared - USB - Retail, Self-checkout, Industrial

SKU
96211313000-020530
Category
Barcode Scanners

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Datalogic S.p.A through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
96211313000-020530
Category
Barcode Scanners

Overview

Scanning Excellence with an AI Edge

THE NEXT GENERATION IS HERE

The #1 selling "in counter" scanners for assisted and self check-out are now even better. Fresh styling, rugged design, industry-leading scan performance and new options that enable Artificial Intelligence (AI) at the check-out put the Magellan 9600i portfolio in a class of its own.

With basic and advanced configurations, the 9600i scanner and scanner/scale is the perfect companion for Point of Sale (POS) systems in all high throughput check-out environments.

The ability to choose from 3 chassis lengths and multiple check stand mount options allows customers to have a tailored solution that solves all of their assisted and self check-out needs.

ENHANCING THE CASHIER OR CUSTOMER EXPERIENCE

Packed with the latest imaging technology, the 9600i scanners feature the largest scan volume in their class. This ensures fastest read rates and ease of use regardless of 1D, 2D, GS1 or Digimarc symbologies.

The new Magellan scanners feature capacitive touch buttons and smooth surfaces to ensure the above counter areas are easy to clean and sanitize.

The 9600i offers an optional external mounted customer-facing reader enabling customers to scan mobile devices and coupons independent from a cashier in assisted lanes.

FEATURES FOR TODAY AND THE FUTURE

Magellan 9600i is powered by QuadVision, a multi-core processor and multi-camera system with embedded Linux operating system to future-proof the platform. ScanSentry color camera options and neural processors coming in 2023 will result in a check-out that is fully enabled to support Artificial Intelligence (AI) software that will boost customer satisfaction and improve loss prevention.

Highlights

  • Magellan 9600i features QuadVision, a powerful IMX8 multi-core processor utilizing 4 cameras (2 horizontal and 2 vertical) that will deliver multiple high resolution images for each scan. Combine the powerful processors, 5 sided image capture and Datalogic's legendary software and you have previously unheard of performance to decode the most difficult and damaged barcodes. In addition, two optional color cameras can be used for machine learning image capture and simultaneous video streaming via Ethernet or USB 3.0 for loss prevention in future releases.
  • Optional built-in neural processors and accelerators enable trillions of operations per second inside the scanner eliminating a need for extra servers or cloud connections at the checkout.
  • Note that the performance has already been optimized for the future GS1 Digital Link symbology which links valuable manufacturing and health safety details to each transaction. However GS1 final decode is subject to update during pilot testing.

Specifications

Additional Warranty Information
  • 1-Year Standard Factory Warranty (5 day turn around)
Application/UsageRetail, Self-checkout, Industrial
Host InterfaceUSB
Product TypeBarcode Scanner
Display ScreenYes
Manufacturer Part Number96211313000-020530
Platform SupportedPC, Linux, Android
Limited Warranty1 Year
Connectivity TechnologyCable
FeaturesNotification LED, Diagnostic Reporting, Sensormatic EAS, Checkpoint EAS
Form FactorIn-counter
Length15.7"
ManufacturerDatalogic S.p.A
Product Model9600i
Product NameMagellan 9600i Barcode Scanner
Product LineMagellan
Brand NameDatalogic
Width11.5"
InfraredYes
Illumination TypeLED
Storage Temperature-40°F (-40°C) to 158°F (70°C)
RuggedYes
Maximum Operating Power Consumption9.30 W
Maximum Ambient Light86080 lux
Air Electrostatic Discharge (+/-)25kV
Operating Temperature50°F (10°C) to 104°F (40°C)
Humidity (Non-condensing)5% to 95%
Environmental ComplianceChina Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
AI-poweredYes
