CyberPower PDU41001G Single Phase 100 - 120 VAC 15A Switched
CyberPower Systems

CyberPower PDU41001G Single Phase 100 - 120 VAC 15A Switched

8 Outlets, 12 ft, NEMA 5-15P, Horizontal, 1U, SNMP, LCD, 3YR Warranty

SKU
PDU41001G
Category
PDUs

MSRP$1,000.00

$713.72

Save 29%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PDU41001G
Category
PDUs

Overview

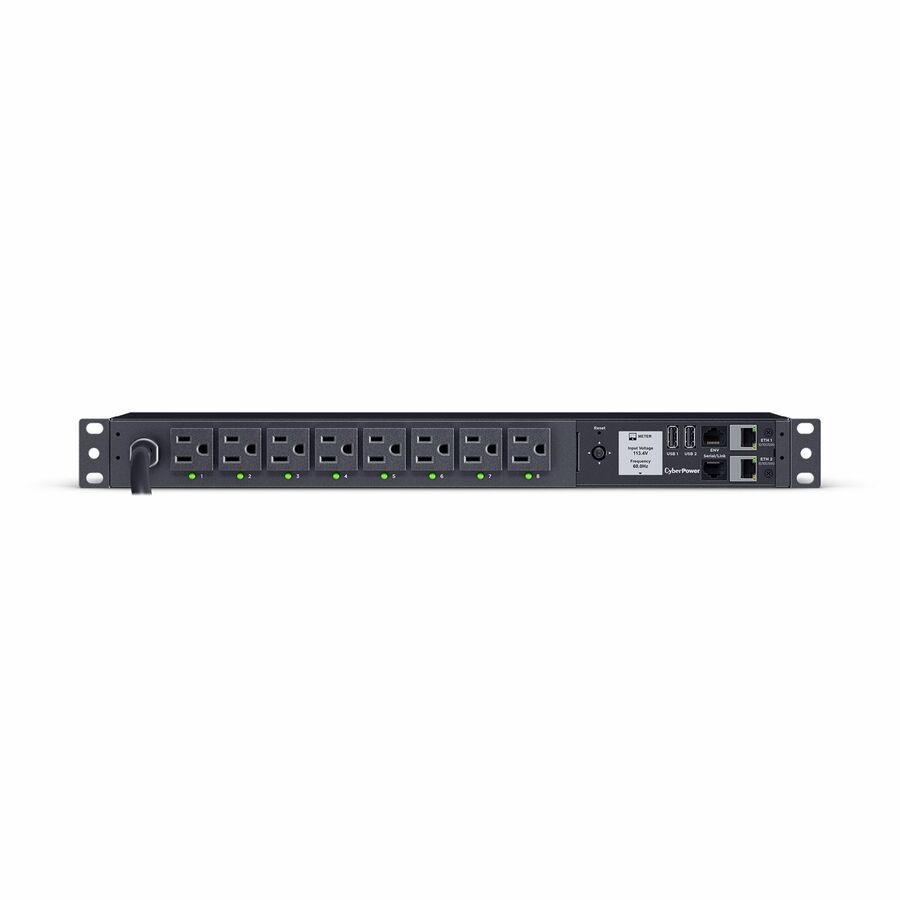

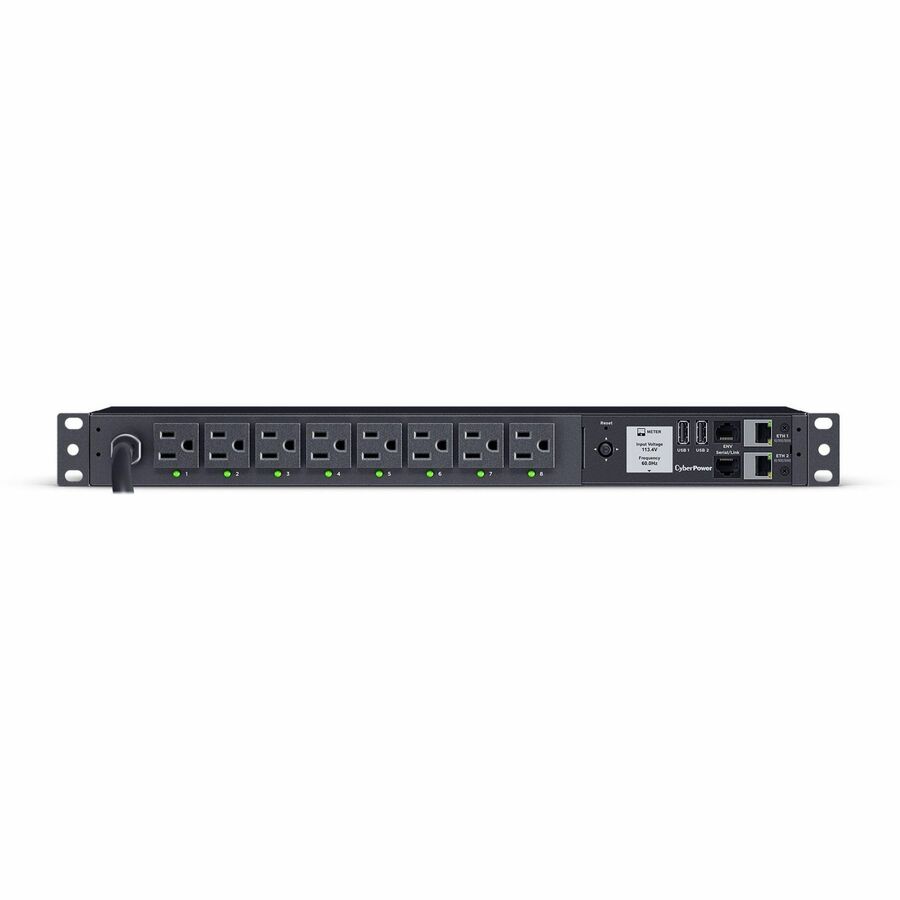

The CyberPower PDU41001G, an 8-outlet (front), 1U rackmount gigabit switched power distribution unit (PDU), provides 120V 15A output. It distributes power to 8 NEMA 5-15R receptacles from a single NEMA 5-15 plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.

Highlights

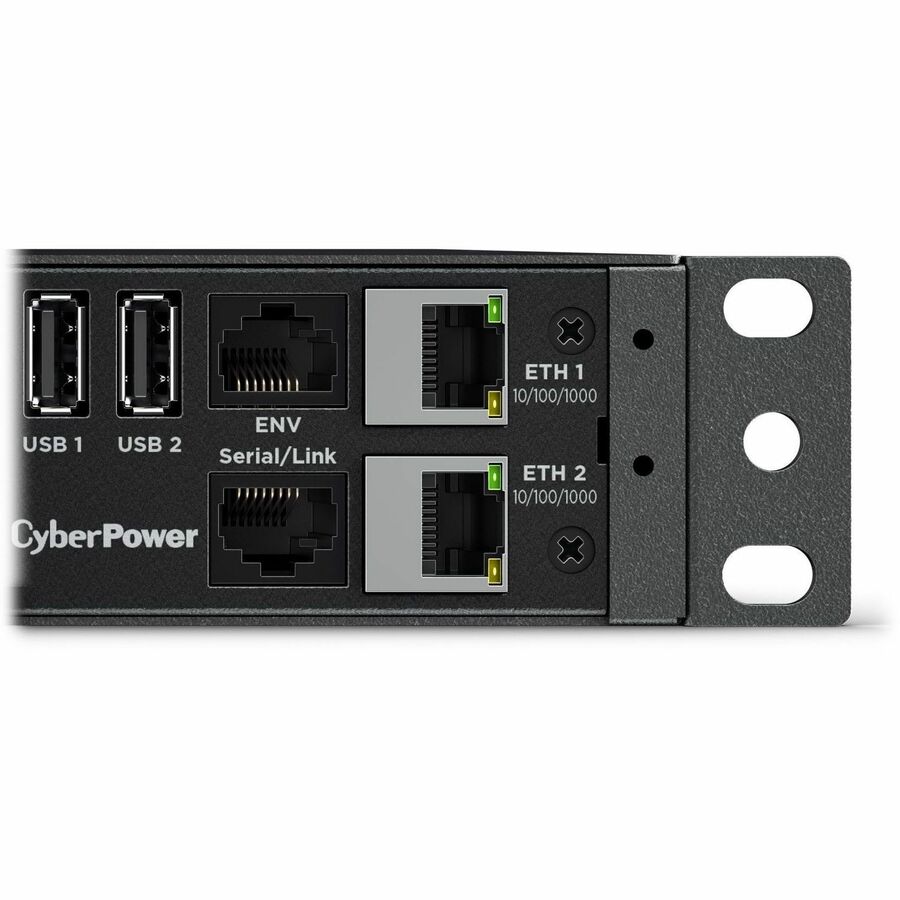

  • Gigabit Switched PDU: Dual Network Gigabit 10/100/1000 Ethernet Ports, SNMP, and Switchable Outlets
  • Automated notifications: Email, SMS Text, and SNMP Trap
  • Phase: Single
  • Amps: 15A (Derated to 12A)
  • Volts: 100 - 120 V
  • Frequency: 50Hz/60Hz
  • Plug type: 5-15P

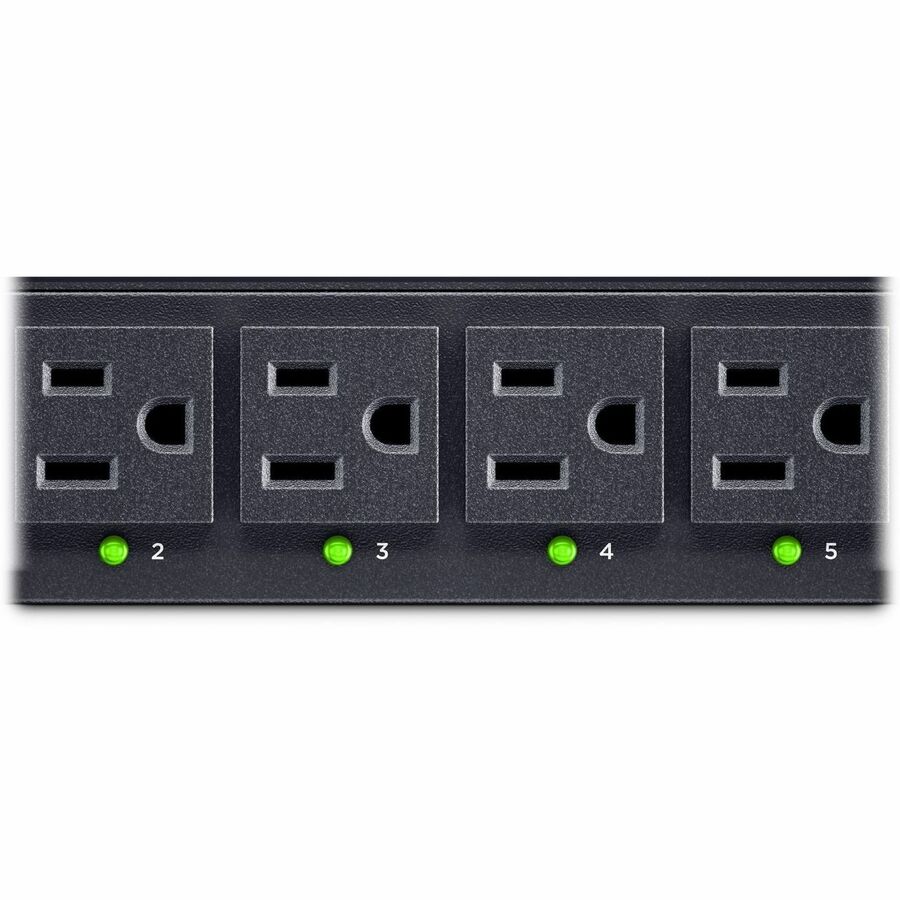

  • Outlets: 8 x 5-15R
  • Size: 1U Rackmount

Specifications

Product TypePDU
Input Voltage120 V AC
Manufacturer Part NumberPDU41001G
Limited Warranty3 Year
Output Voltage120 V AC
Weight (Approximate)5.70 lb

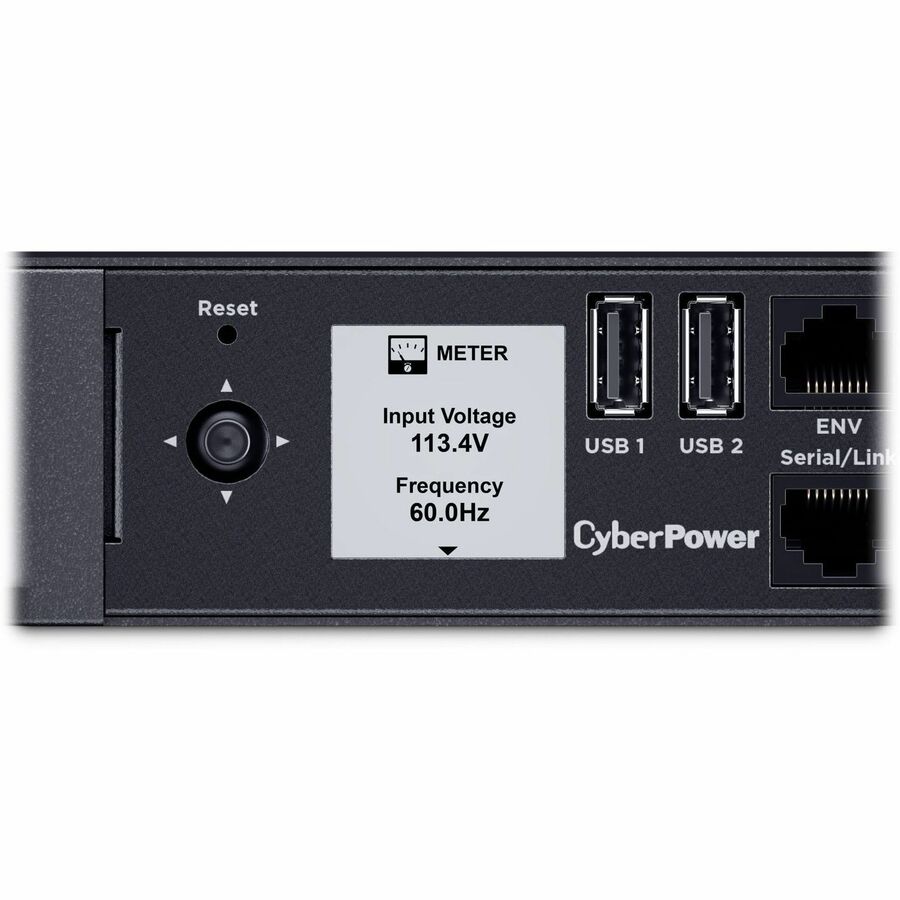

FeaturesLCD Display, LED Status Indicator
Input Current15 A
Management
  • IPv4
  • TCP/IP
  • UDP
  • SNMPv1
  • HTTP
  • NTP
  • DNS
  • Telnet
  • DHCP
  • SMTP
  • FTP
  • IPv6
  • SNMPv3
  • HTTPs
  • SSH
  • SSL
  • TLS
  • LDAP(S)
  • RADIUS
  • Syslog
  • CLI
  • Windows AD
ManufacturerCyberPower Systems, Inc
Product ModelPDU41001G
Product NamePDU41001G 8-Outlets PDU
Mount TypeRack-mountable
Protection TypeOverload Protection
Rack Height1U
Brand NameCyberPower
Plug/Connector TypeNEMA 5-15P
Cord Length12 ft

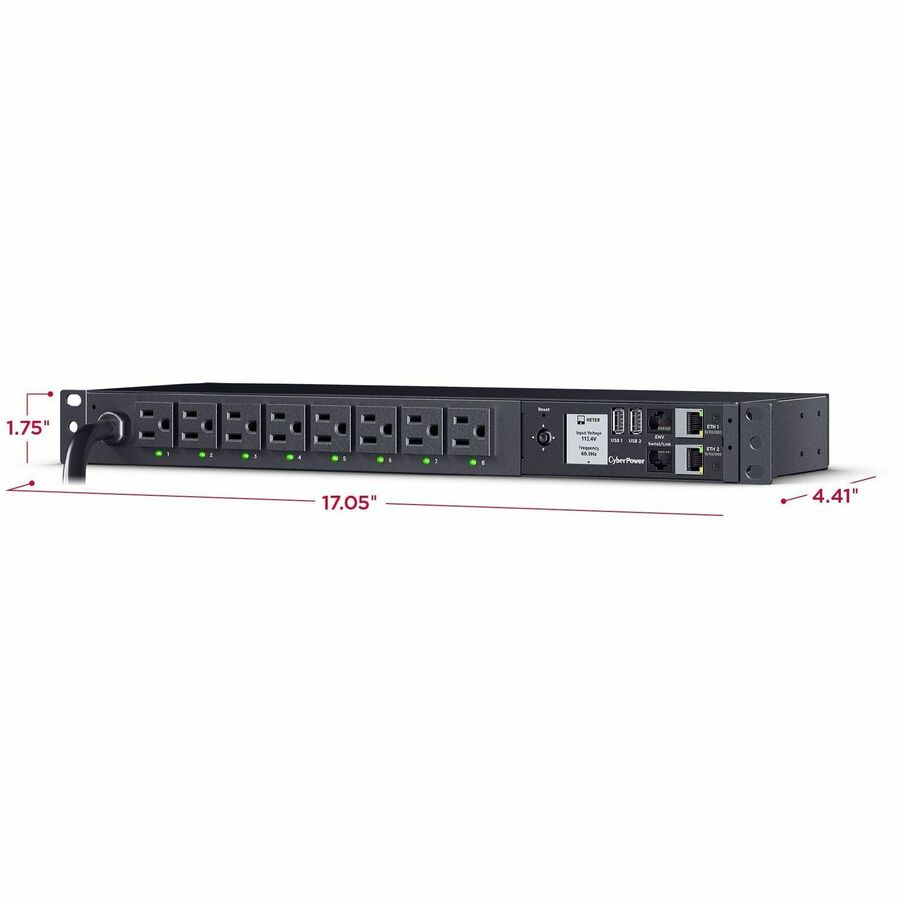

Height1.8"
Width4.4"
Depth17.1"
Input Frequency60 Hz
PhaseSingle Phase
Receptacle TypeNEMA 5-15R
Output Voltage Range100 V AC - 120 V AC
Minimum Operating Temperature32°F (0°C)
Maximum Operating Temperature104°F (40°C)
Minimum Storage Temperature5°F (-15°C)
Maximum Storage Temperature149°F (65°C)
Network (RJ-45)Yes
DesignModular
PDU TypeSwitched
Remote Outlet SwitchingYes
Mounting OrientationHorizontal
Product ColorBlack
Color FamilyBlack
Locking ReceptaclesCord Retention Tray
Receptacle Detail8 x NEMA 5-15R
Product MaterialSteel, Metal
Minimum Operating Humidity0%
Maximum Operating Humidity95%
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
