CyberPower PDU30MVT24F 100 - 125 VAC 30A Metered PDU
CyberPower Systems

CyberPower PDU30MVT24F 100 - 125 VAC 30A Metered PDU

24 Outlets, 10 ft, NEMA L5-30P, Vertical, 0U, Lifetime Warranty

SKU
PDU30MVT24F
Category
PDUs

MSRP$572.00

$398.54

Save 30%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PDU30MVT24F
Category
PDUs

Overview

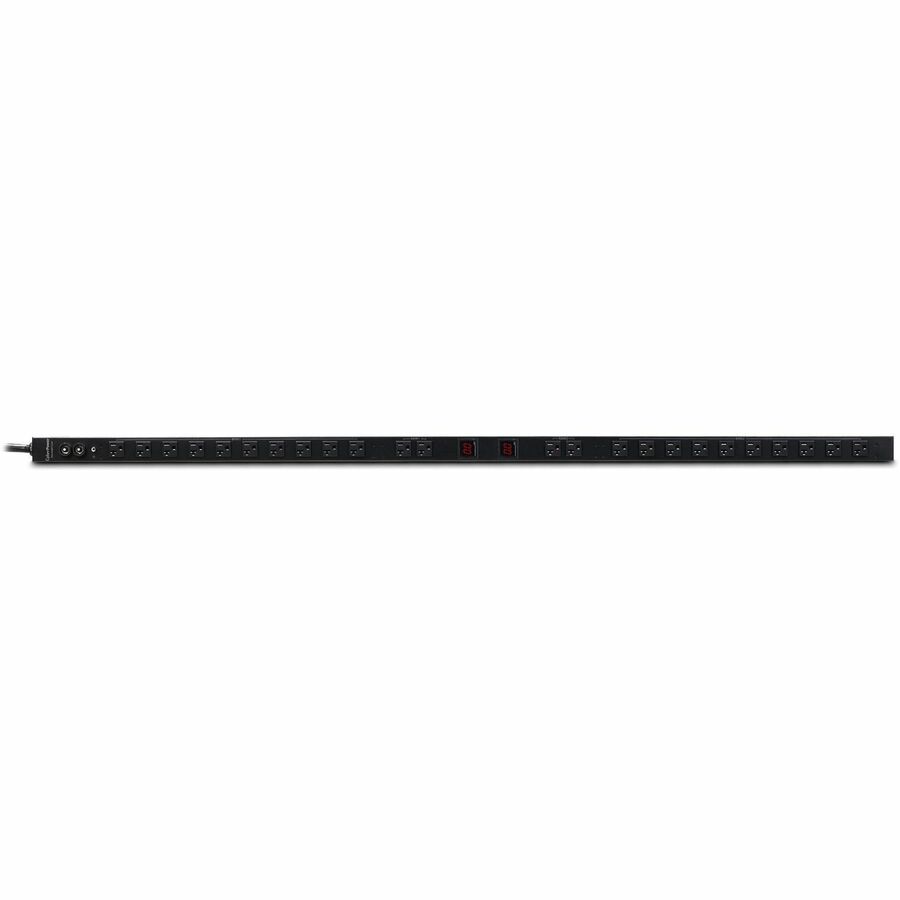

The CyberPower PDU30MVT24F, a 24-outlet (front), 0U vertical rackmount metered power distribution unit (PDU), provides 100 ? 125 V 30A output. It distributes power to 24 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front of two LCDs for real-time load monitoring.

Highlights

  • Digital meter: Displays Amperage
  • Phase: Single
  • Amps: 30A (Derated to 24A)
  • Volts: 100 - 125 V
  • Frequency: 50Hz/60Hz

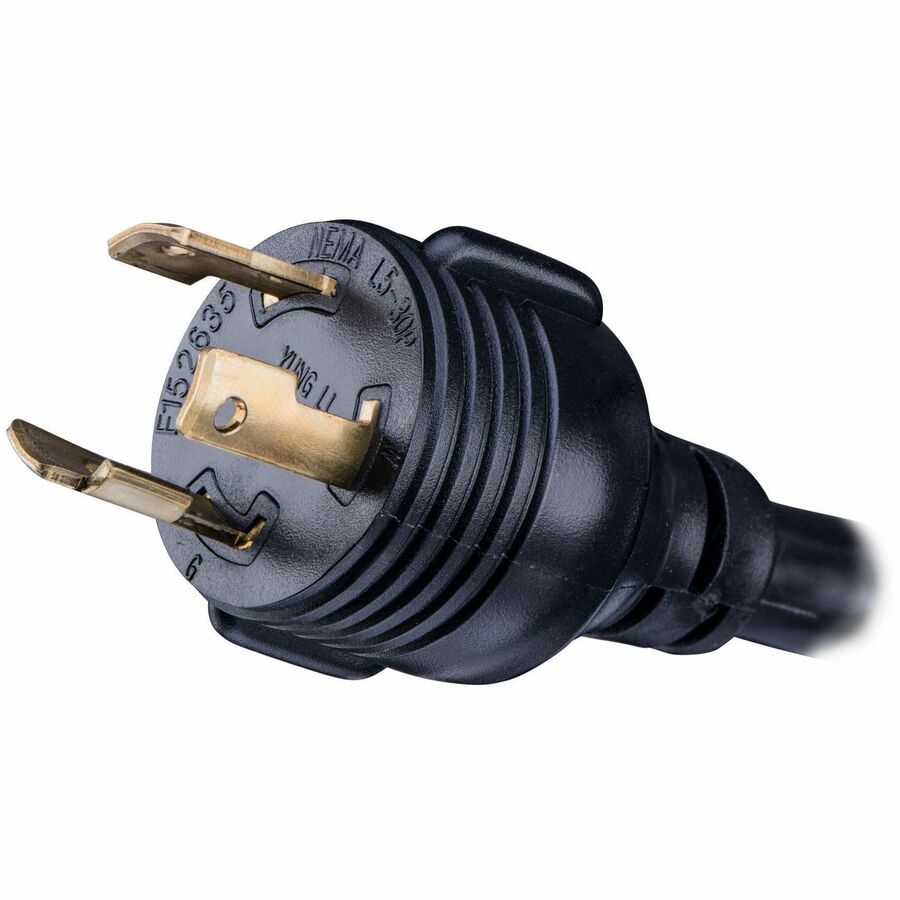

  • Plug type: NEMA L5-30P
  • Outlets: 24 NEMA 5-20R
  • Size: 0U Rackmount
  • Dimensions (in.): 1.75W x 60H x 2.25D
  • Cord length (ft.): 10
  • Warranty: Limited lifetime

Specifications

Package Contents
  • Metered PDU30MVT24F 24-Outlets PDU
  • Cord Retention Tray
Product TypePDU
Input Voltage120 V AC
Manufacturer Part NumberPDU30MVT24F
Limited WarrantyLifetime
Output Voltage120 V AC
Weight (Approximate)11.40 lb
ManufacturerCyberPower Systems, Inc
Product ModelPDU30MVT24F
Product NamePDU30MVT24F 100 - 125 VAC 30A Metered
Mount TypeWall-mountable, Rack-mountable
Protection TypeOverload Protection
Product SeriesMetered PDU
Brand NameCyberPower
Plug/Connector TypeNEMA L5-30P
Country of OriginChina
Receptacle TypeNEMA 5-20R
Environmentally FriendlyYes
Mounting OrientationHorizontal/Vertical
Receptacle Detail24 x NEMA 5-20R
Plug/Connector Detail1 x NEMA L5-30P
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
