CyberPower PDU24007 Single Phase 240 - 200 VAC 30A Metered ATS PDU
CyberPower Systems

CyberPower PDU24007 Single Phase 240 - 200 VAC 30A Metered ATS PDU

19 Outlets, 10 ft, 2 x NEMA L6-30P, Horizontal, 2U, LCD, 3YR Warranty

SKU
PDU24007
Category
PDUs

MSRP$1,300.00

$860.16

Save 34%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PDU24007
Category
PDUs

Overview

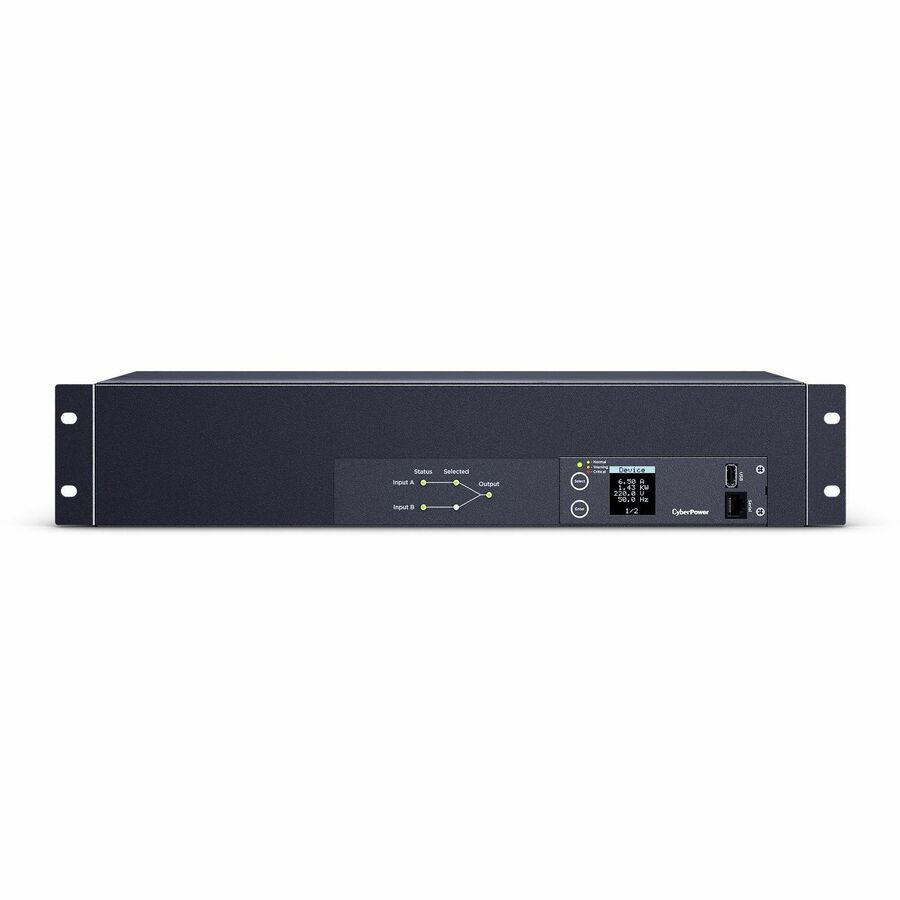

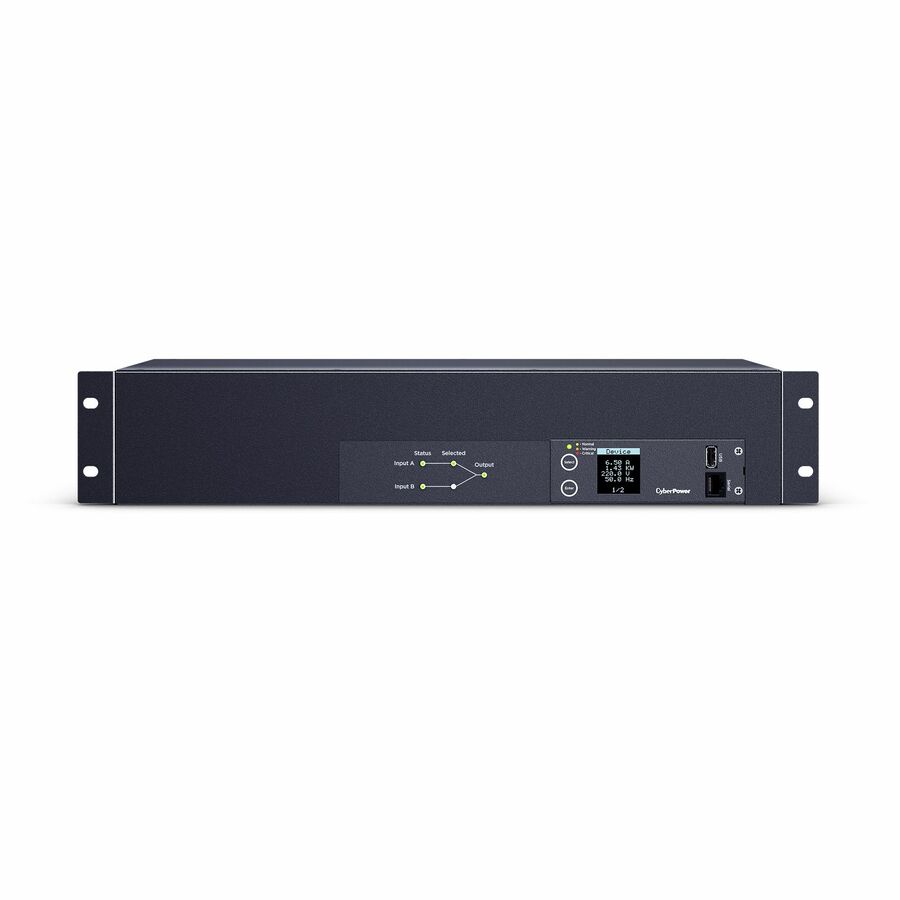

Ensure continued operation of critical devices with the CyberPower PDU24007 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

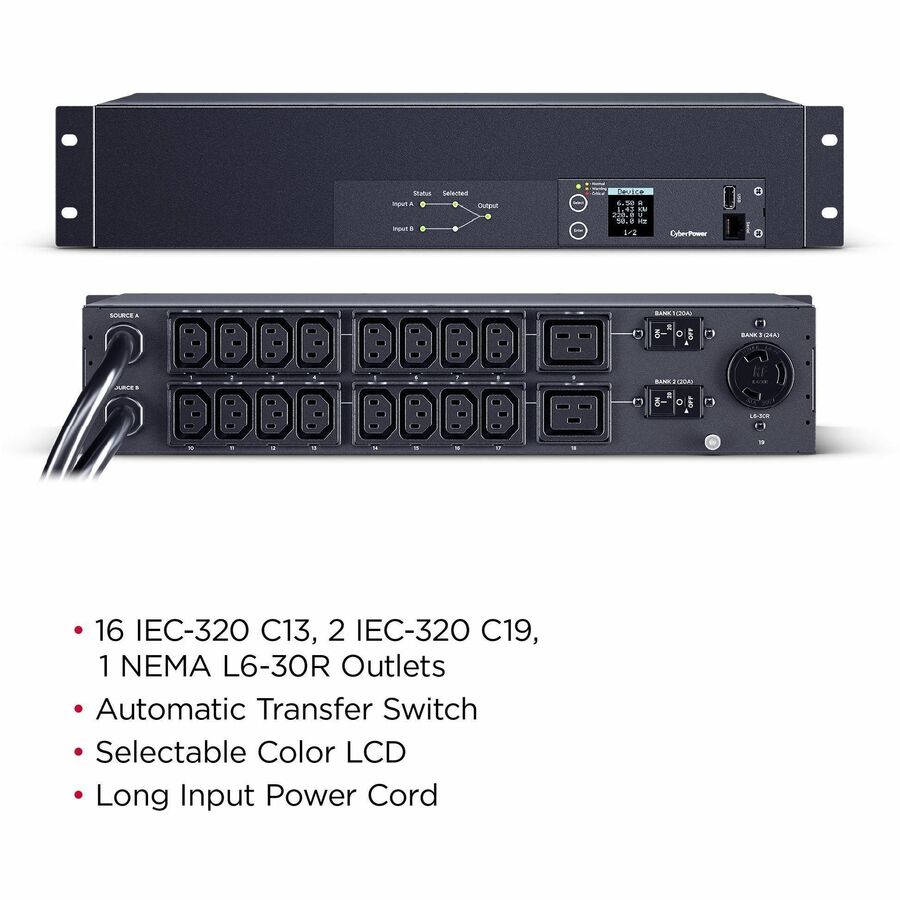

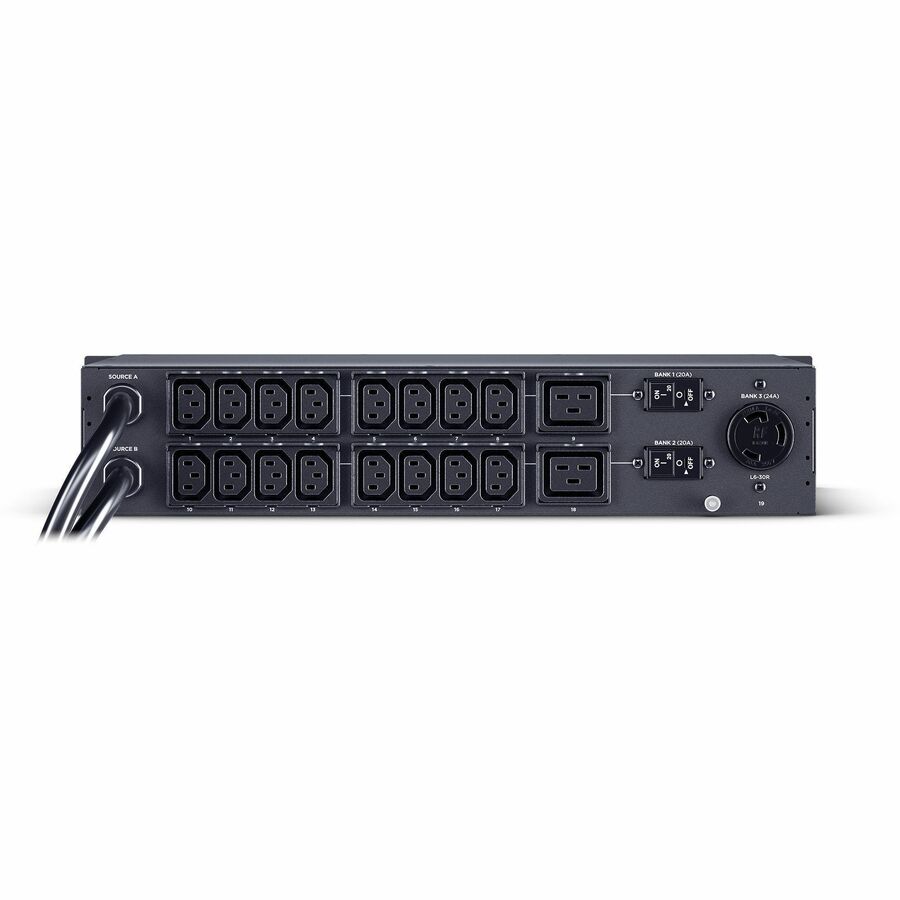

The PDU24007 supports inputs between 200-240V and includes (16) IEC C13, (2) IEC C19, and (1) NEMA L6-30R outlets. Dual NEMA L6-30P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24007 is protected by a three-year limited warranty.

More from the Manufacturer

Highlights

  • Phase: Single
  • Amps: 30A (Derated to 24)
  • Volts: 200-240V
  • Frequency: 50/60Hz

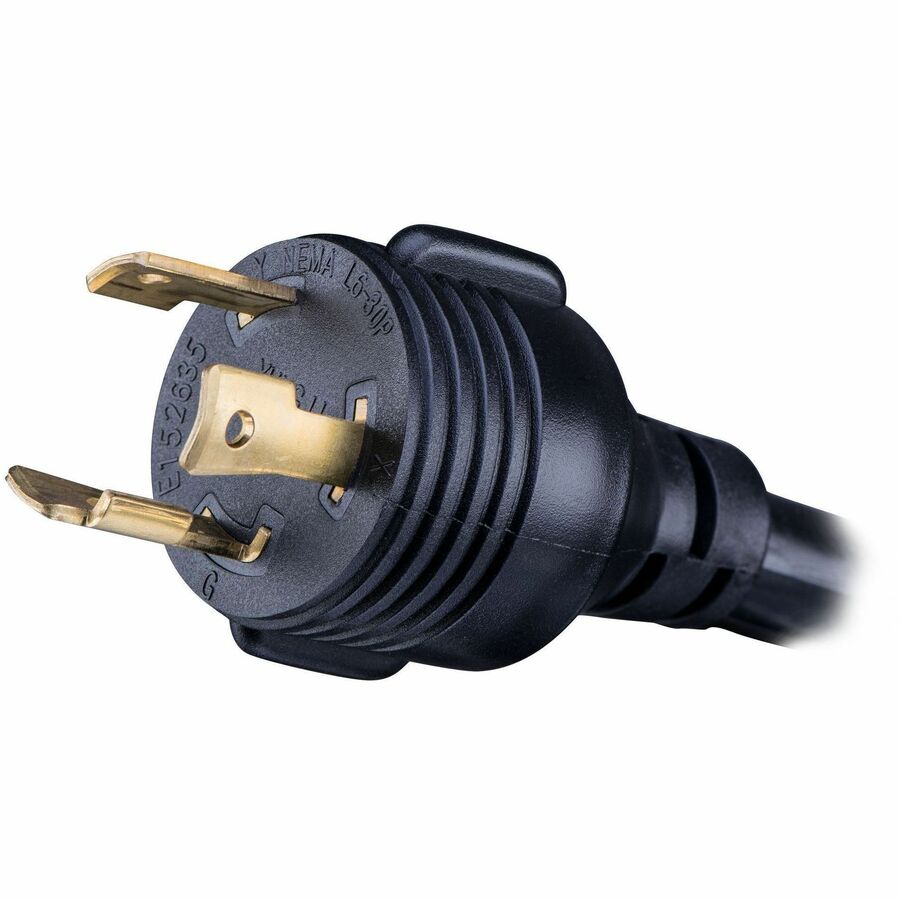

  • Plug type: 2 x NEMA L6-30P
  • Outlets: 16 x IEC-320 C13, 2 x IEC-320 C19, 1 x NEMA L6-30R
  • Size: 2U Rackmount
  • Warranty: 3 year

Specifications

Application/UsageData Center, Network Closet
Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberPDU24007
Limited Warranty3 Year
Output Voltage230 V AC
Weight (Approximate)15.41 lb
FeaturesLCD Display, LED Status Indicator
Form FactorRack
Input Current30 A
ManufacturerCyberPower Systems, Inc
Product ModelPDU24007
Product NamePDU24007
Mount TypeRack-mountable
Protection TypeOverload Protection
Product SeriesMetered ATS PDU
Rack Height2U
Brand NameCyberPower
Plug/Connector TypeNEMA L6-30P
Input Voltage Range200 V AC - 240 V AC
Country of OriginChina
Cord Length10 ft

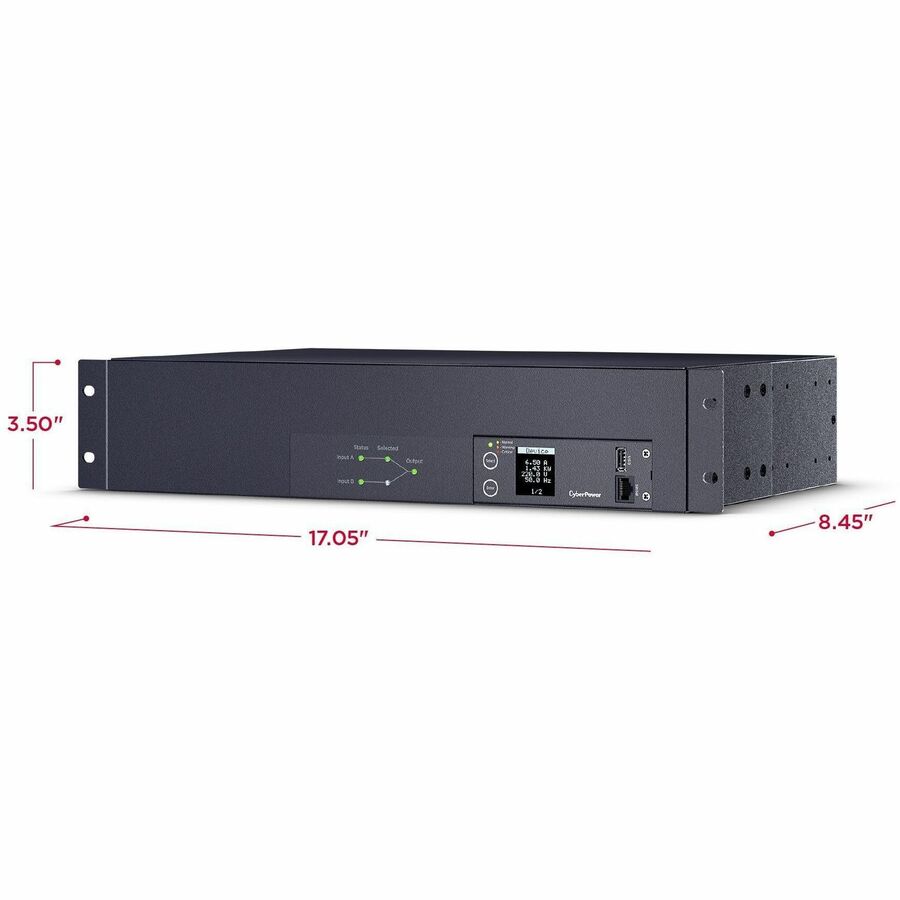

Height3.5"
Width17.1"
Depth8.4"
Input Frequency60 Hz
PhaseSingle Phase
Receptacle TypeIEC 60320 C13, IEC 60320 C19, NEMA L6-30R
Environmentally FriendlyYes
Output Voltage Range200 V AC - 240 V AC
Minimum Operating Temperature32°F (0°C)
Maximum Operating Temperature113°F (45°C)
Minimum Storage Temperature5°F (-15°C)
Maximum Storage Temperature131°F (55°C)
Network (RJ-45)Yes
UL ListedYes
PDU TypeMetered
Mounting OrientationHorizontal
Product ColorBlack
Color FamilyBlack
Locking ReceptaclesCord Retention Tray
Receptacle Detail16 x IEC 60320 C13, 2 x IEC 60320 C19, 1 x NEMA L6-30R
Plug/Connector Detail2 x NEMA L6-30P
Product MaterialMetal
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
