CyberPower PDU20MVHVIEC30F 200 - 230 VAC 20A Metered PDU
CyberPower Systems

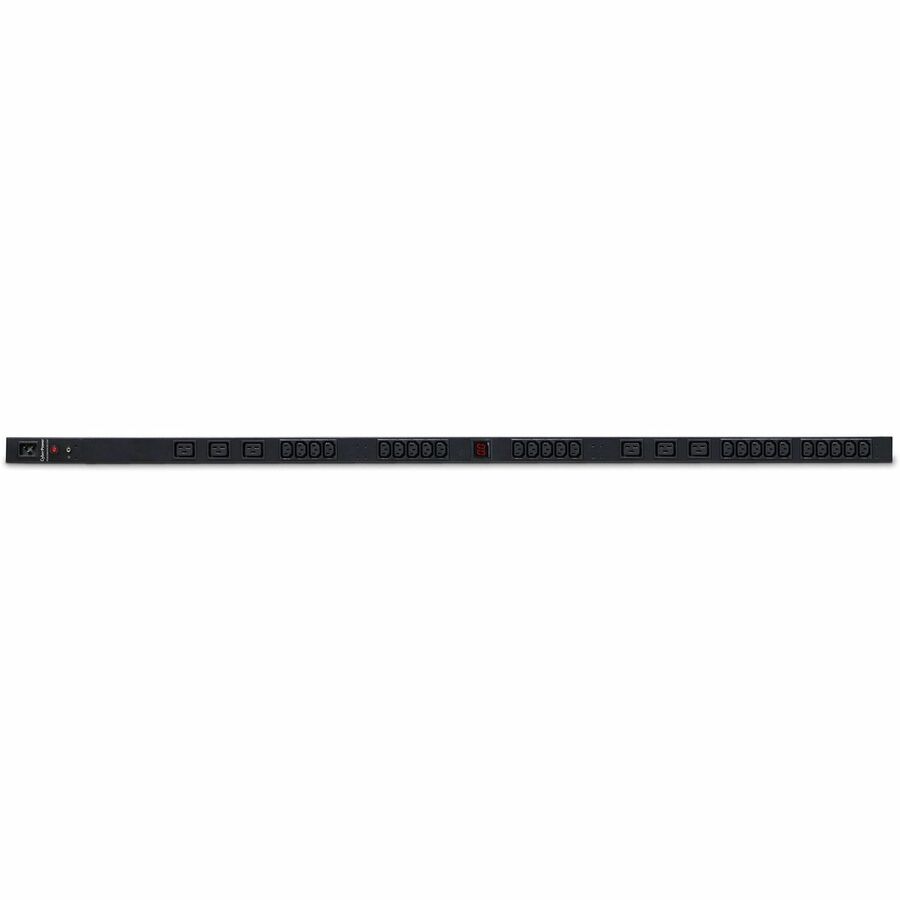

CyberPower PDU20MVHVIEC30F 200 - 230 VAC 20A Metered PDU

30 Outlets, 10 ft, IEC-320 C20, Vertical, 0U, Lifetime Warranty

SKU
PDU20MVHVIEC30F
Category
PDUs

MSRP$417.95

$238.32

Save 43%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PDU20MVHVIEC30F
Category
PDUs

Overview

The CyberPower PDU20MVHVIEC30F, a 30-outlet (front), 0U vertical rackmount basic power distribution unit (PDU), provides 200/230V 20A output. It distributes power to 24 IEC-320 C13, 6 IEC-320 C19 receptacles from a single IEC-320 C20 plug with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.

Highlights

  • Digital meter: Displays Amperage
  • Phase: Single
  • Amps: 20A (Derated to 16A)
  • Volts: 200 - 230 V
  • Frequency: 50Hz/60Hz
  • Plug type: IEC-320 C20
  • Outlets: 24 IEC-320 C13, 6 IEC-320 C19
  • Size: 0U Rackmount
  • Dimensions (in.): 1.75W x 60H x 2.25D
  • Cord length (ft.): 10
  • Warranty: Limited lifetime

Specifications

Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberPDU20MVHVIEC30F
Limited WarrantyLifetime
Output Voltage230 V AC
Weight (Approximate)8.44 lb
ManufacturerCyberPower Systems, Inc
Product ModelPDU20MVHVIEC30F
Product NamePDU20MVHVIEC30F 200 - 230 VAC 20A Metered
Mount TypeRack-mountable
Protection TypeOverload Protection
Brand NameCyberPower
Plug/Connector TypeIEC 60320 C20
Height60"
Width1.8"
Depth2.3"
Receptacle TypeIEC 60320 C19, IEC 60320 C13
Environmentally FriendlyYes
Mounting OrientationVertical
Receptacle Detail6 x IEC 60320 C19, 24 x IEC 60320 C13
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
