CyberPower PDU20BVHVT24F 200 - 230 VAC 20A Basic PDU
CyberPower Systems

CyberPower PDU20BVHVT24F 200 - 230 VAC 20A Basic PDU

24 Outlets, 10 ft, NEMA L6-20P, Vertical, 0U, Lifetime Warranty

SKU
PDU20BVHVT24F
Category
PDUs

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PDU20BVHVT24F
Category
PDUs

Overview

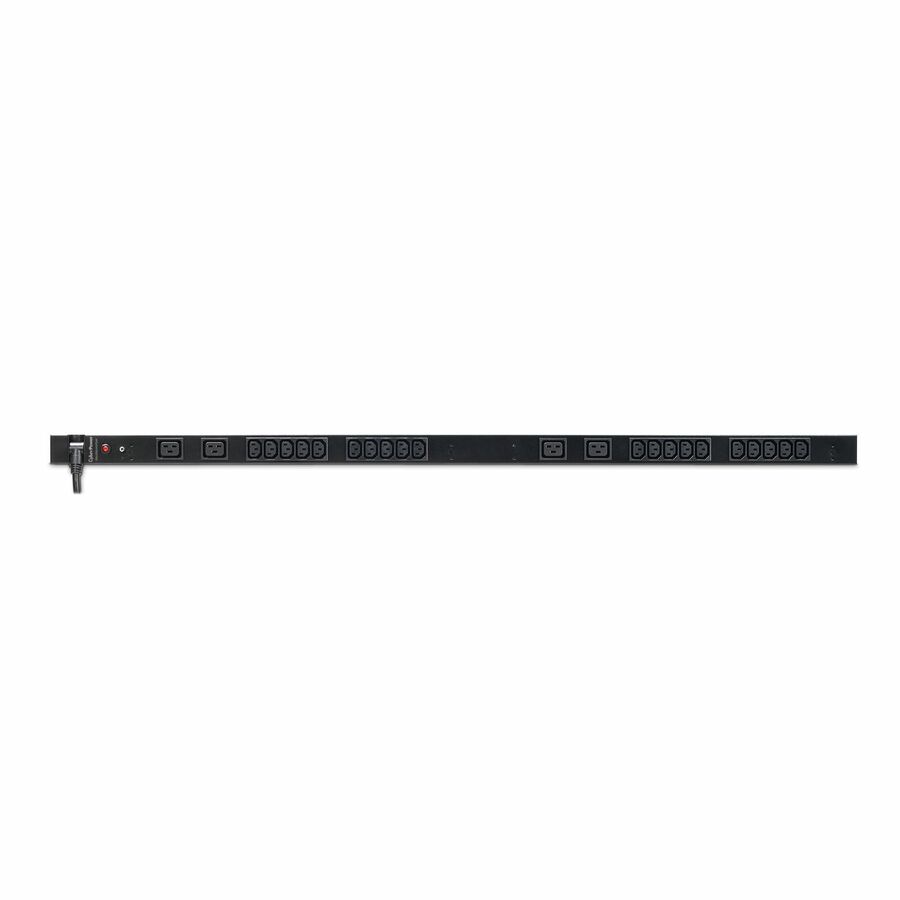

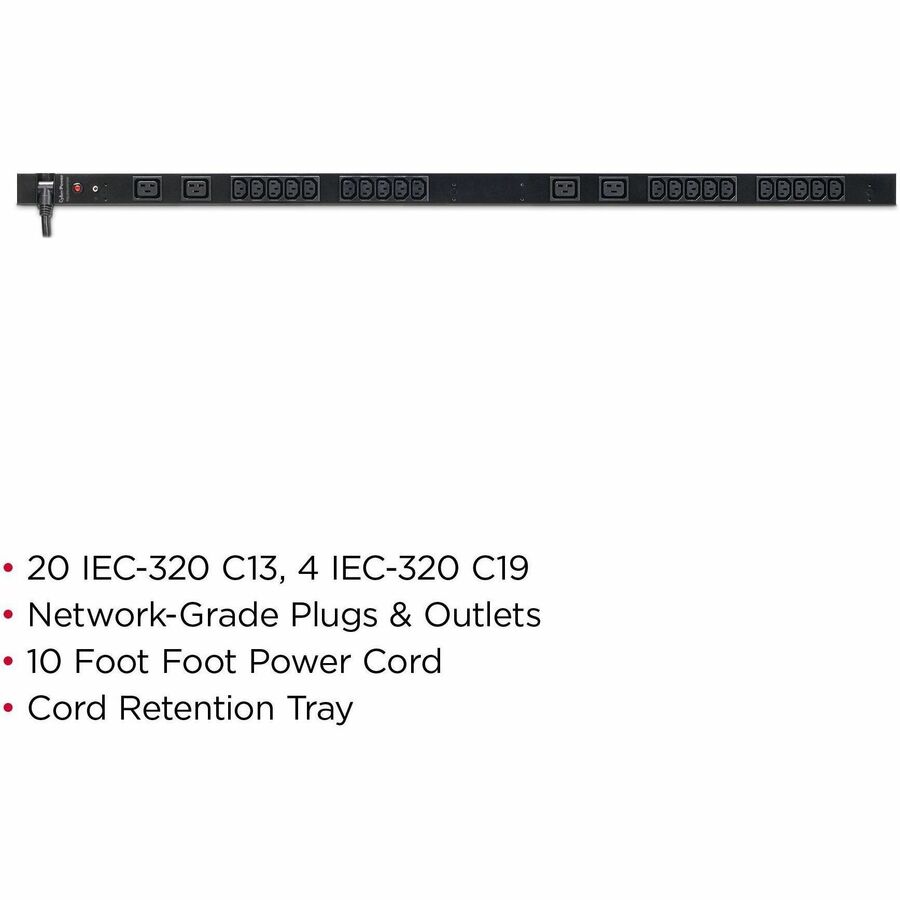

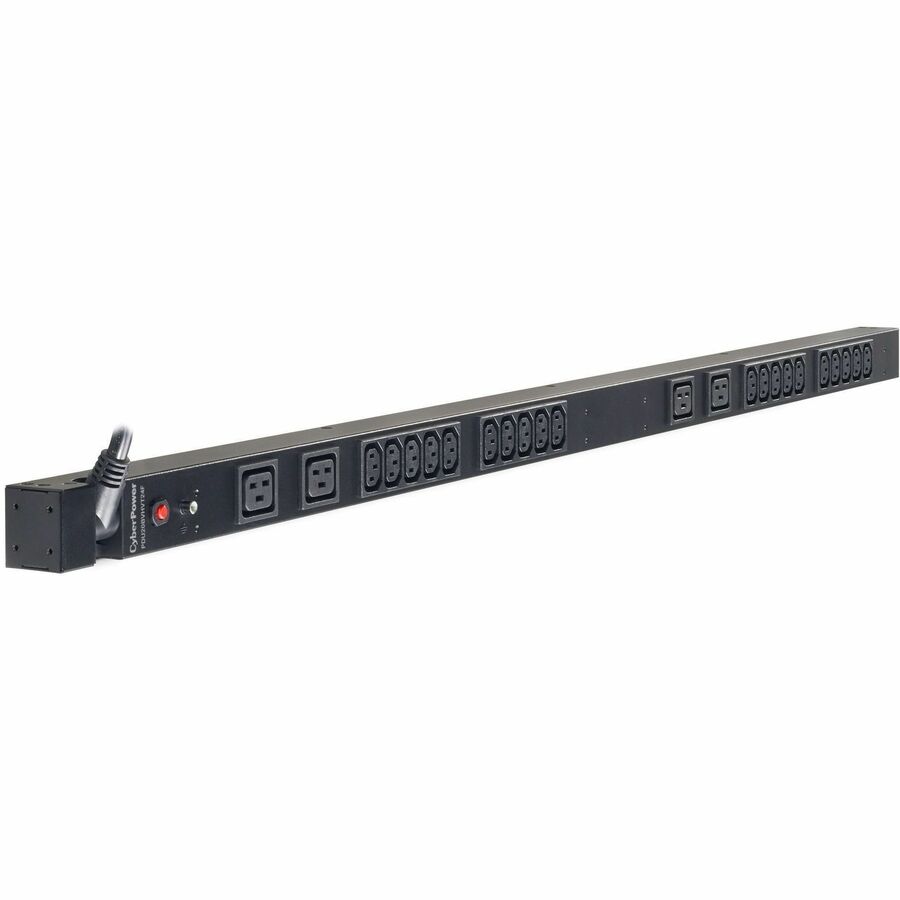

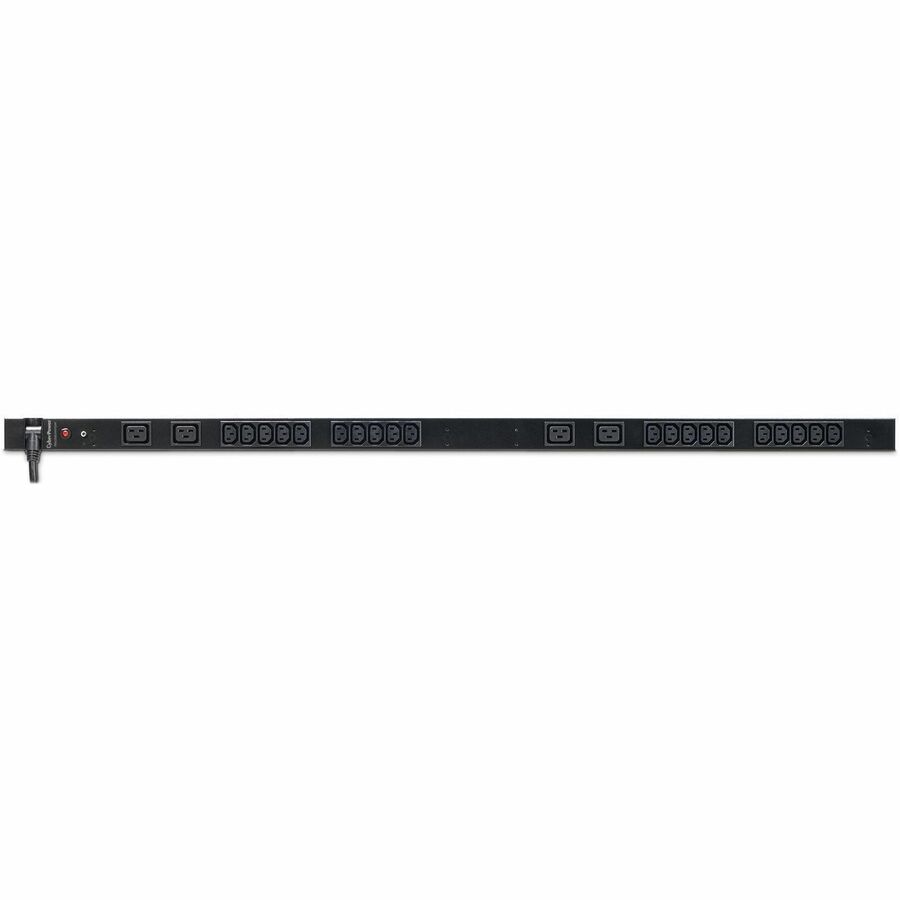

The CyberPower PDU20BVHVT24F, a 24-outlet (front), 0U vertical rackmount basic power distribution unit (PDU), provides 200/230V 20A output. It distributes power to 20 IEC-320 C13, 4 IEC-320 C19 receptacles from a single NEMA L6-20P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BVHVT24F has rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

Highlights

  • Phase:
  • Single
  • Amps:
  • 20A (Derated to 16A)
  • Volts:
  • 200 - 230 V
  • Frequency:
  • 50Hz/60Hz
  • Plug type:
  • NEMA L6-20P
  • Outlets:
  • 20 IEC-320 C13, 4 IEC-320 C19
  • Size:
  • 0U Rackmount

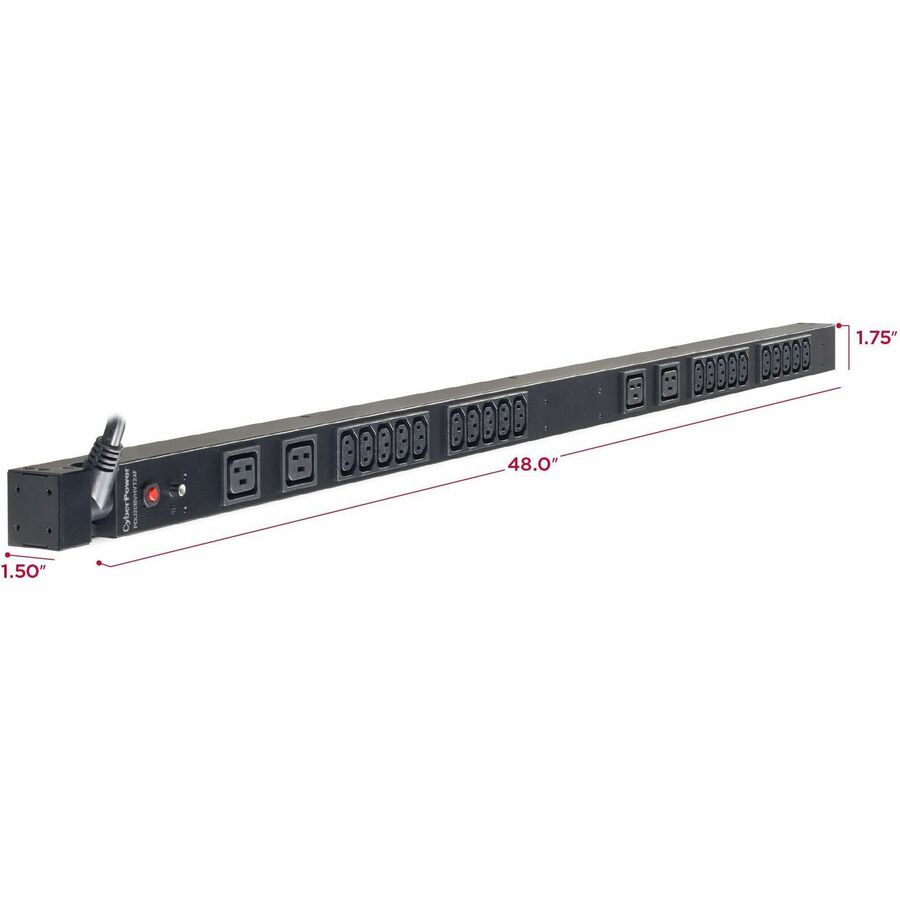

  • Dimensions (in.):
  • 1.75W x 48H x 1.5D
  • Cord length (ft.):
  • 10
  • Warranty:
  • Limited lifetime

Specifications

Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberPDU20BVHVT24F
Limited WarrantyLifetime
Output Voltage230 V AC
Weight (Approximate)7.30 lb
Length1.5"
ManufacturerCyberPower Systems, Inc
Product ModelPDU20BVHVT24F
Product NamePDU20BVHVT24F 200 - 230 VAC 20A Basic
Mount TypeRack-mountable
Protection TypeOverload Protection
Brand NameCyberPower
Plug/Connector TypeNEMA L6-20P
Country of OriginChina
Height48"
Width1.8"
Receptacle TypeIEC 60320 C19, IEC 60320 C13
Environmentally FriendlyYes
Energy StarNo
PDU TypeBasic
Mounting OrientationVertical
Receptacle Detail4 x IEC 60320 C19, 20 x IEC 60320 C13
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
