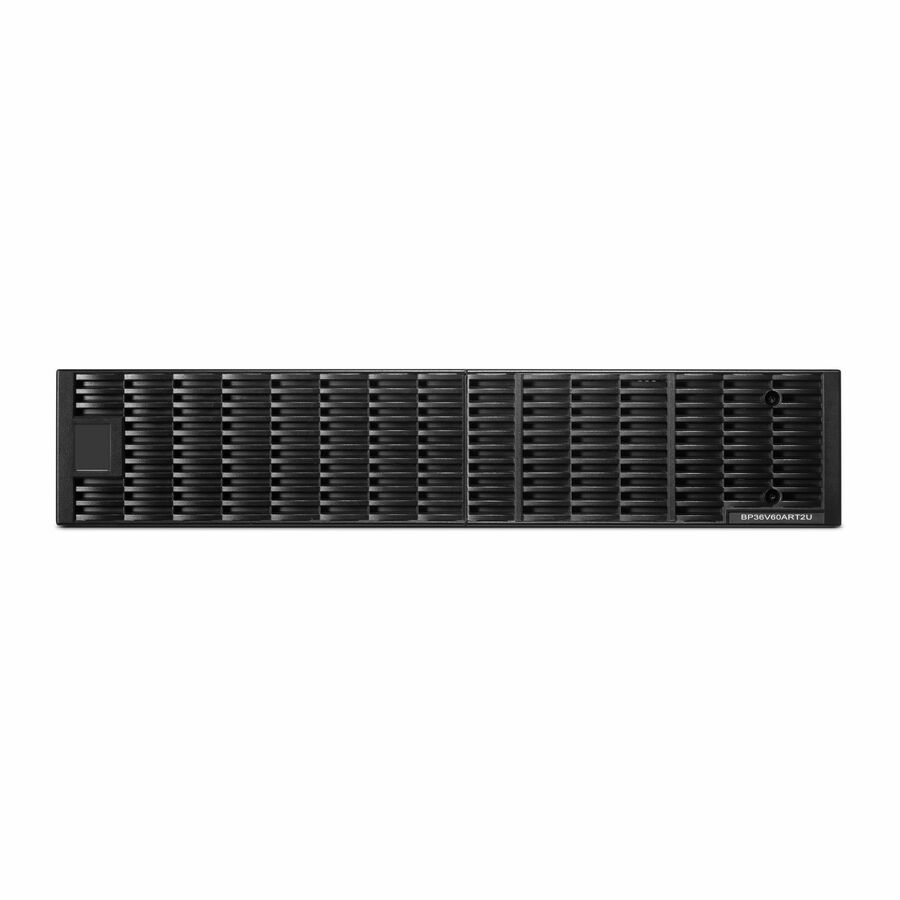

CyberPower UPS Systems BP36V60ART2U Extended Battery Modules
CyberPower Systems

CyberPower UPS Systems BP36V60ART2U Extended Battery Modules

36 VDC / 60 A - 12 V / 9 Ah Sealed Lead-Acid Battery, 3YR Warranty

SKU
BP36V60ART2U
Category
UPS Batteries

MSRP$1,055.00

$882.28

Save 16%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
BP36V60ART2U
Category
UPS Batteries

Overview

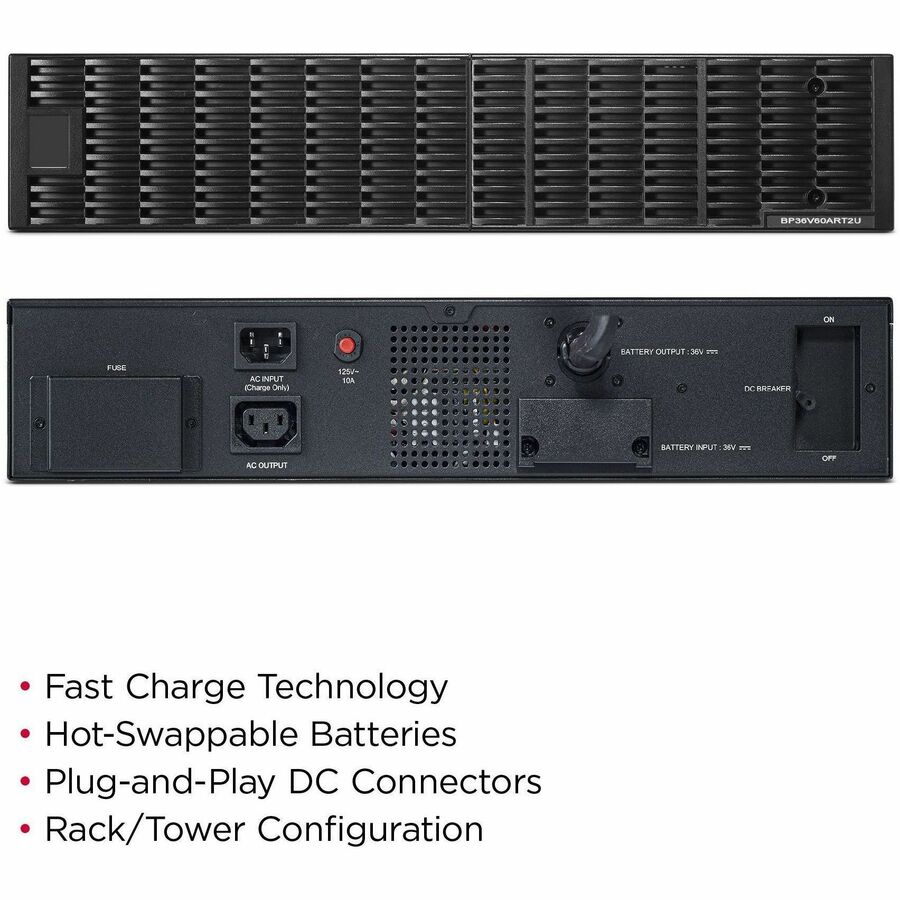

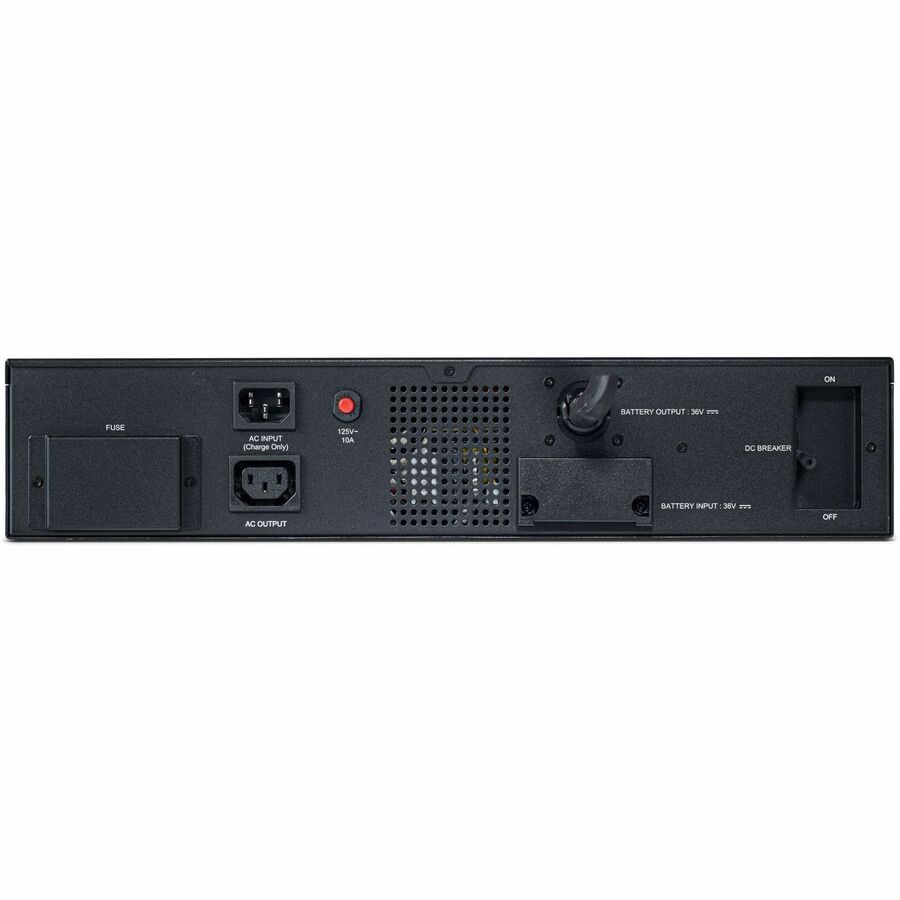

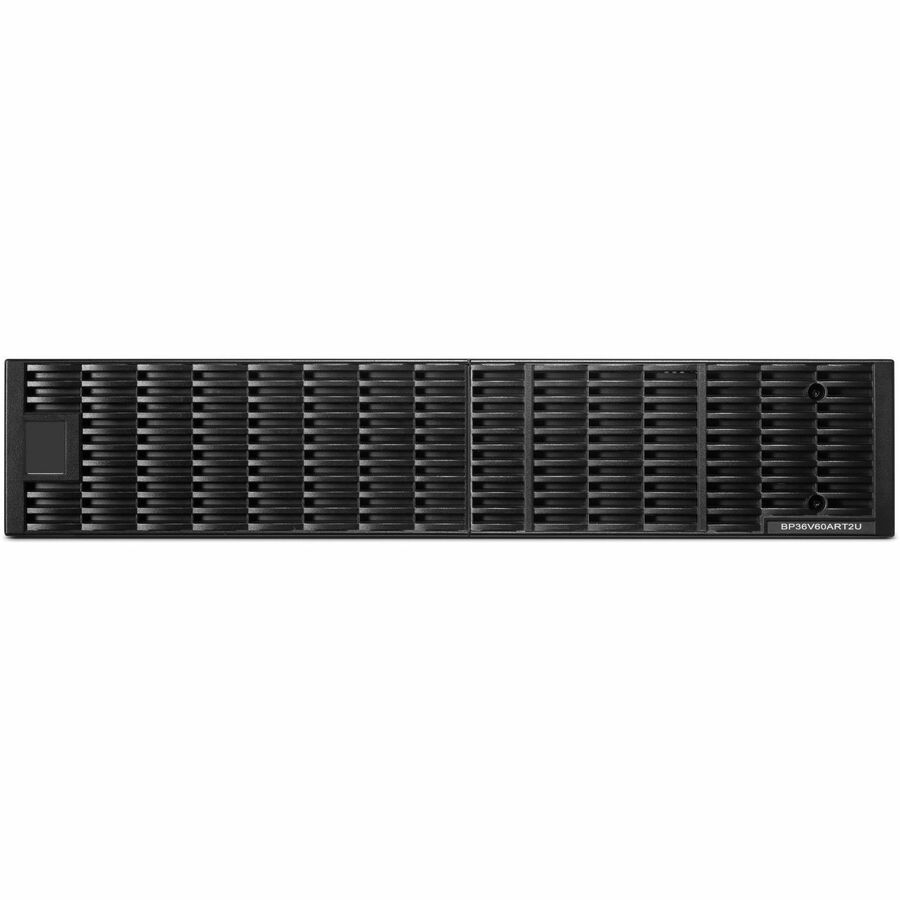

The CyberPower BP36V60ART2U rack/tower convertible Extended Battery Module (EBM), which extends battery runtimes during power outages, is designed for Smart App Online UPS systems OL1000RTXL2U, OL1000RTXL2UN, OL1500RTXL2U and OL1500RTXL2UN. This EBM takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply to full capacity.

Highlights

  • Output: 36V/60A
  • Recharge time: 4 Hours (0-90% charged)
  • Battery type & quantity: 12V/9AH (6)
  • Weight: 50.6 lbs
  • Form factor: Rack/Tower
  • Hot swappable: Yes
  • Fast Charge Technology: Yes
  • Warranty: 3 year

Specifications

Battery ChemistryLead Acid
Package Contents
  • BP36V60ART2U Battery Unit
  • User's manual
  • Registration card
  • Rackmount left rail
  • Rackmount right rail
  • Left hanging bracket
  • Right hanging bracket

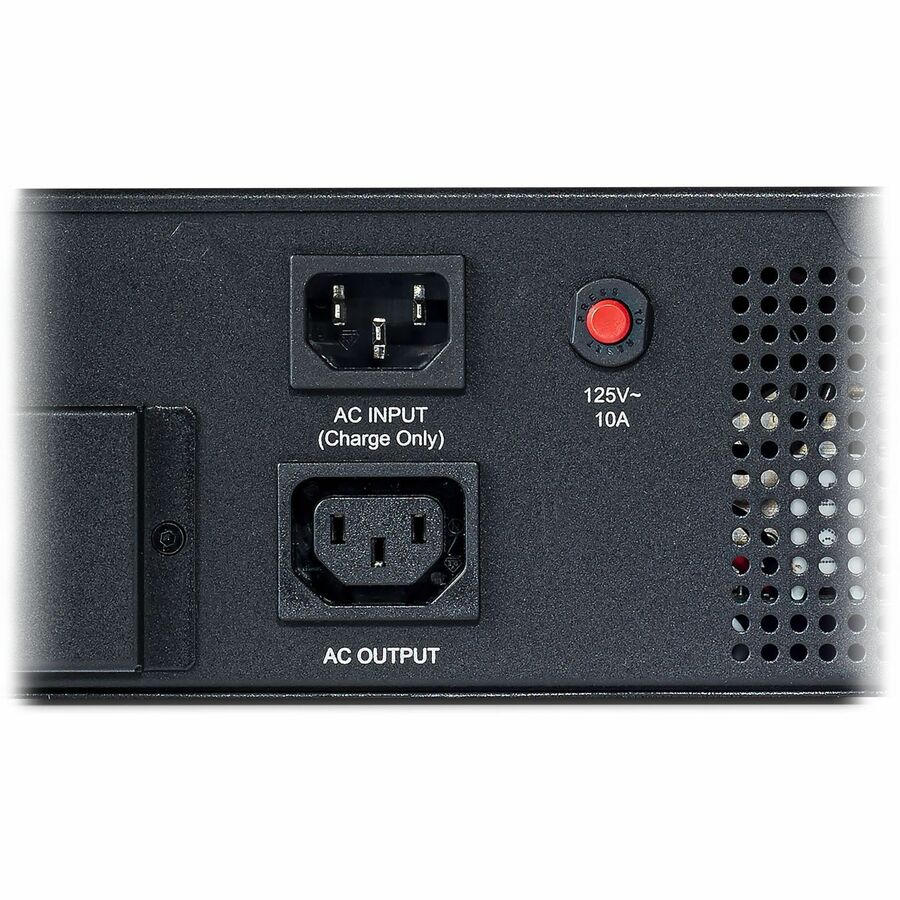

  • IEC320 C14 to NEMA 5-15P Power cord
  • 2 x Rackmount ears (Stands)
  • Tie plate
  • 8 x M5X8L black pan head screws
  • 12 x M5X12L black pan head screws
  • 6 x M5X6L silver pan head screws
  • 8 x Plastic washers
  • 10 x Screw hole dust covers
  • 12 x Rubber feet
Product TypeBattery Unit
CompatibilityCyberPower UPS: OL1000RTXL2U OL1000RTXL2UN OL1500RTXL2U OL1500RTXL2UN
Hot SwappableYes
Manufacturer Part NumberBP36V60ART2U
Limited Warranty3 Year
Output Voltage36 V DC
Weight (Approximate)50.60 lb
ManufacturerCyberPower Systems, Inc
Product ModelBP36V60ART2U
Product NameBP36V60ART2U Extended Battery Modules
Product SeriesExtended Battery Modules
Brand NameCyberPower

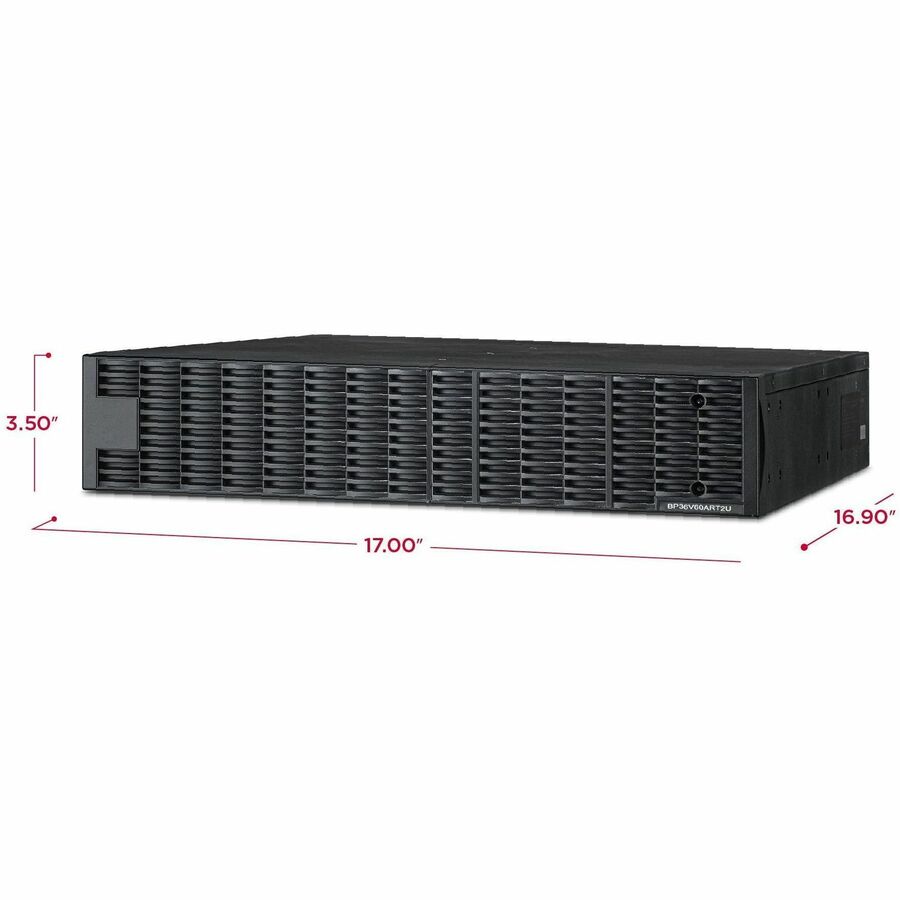

Height3.5"
Width17"
Depth16.9"
Environmentally FriendlyYes
Battery Capacity9000 mAh
Maximum Battery Recharge Time4 Hour
Battery CharacteristicsUser Replaceable
Product ColorBlack
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
