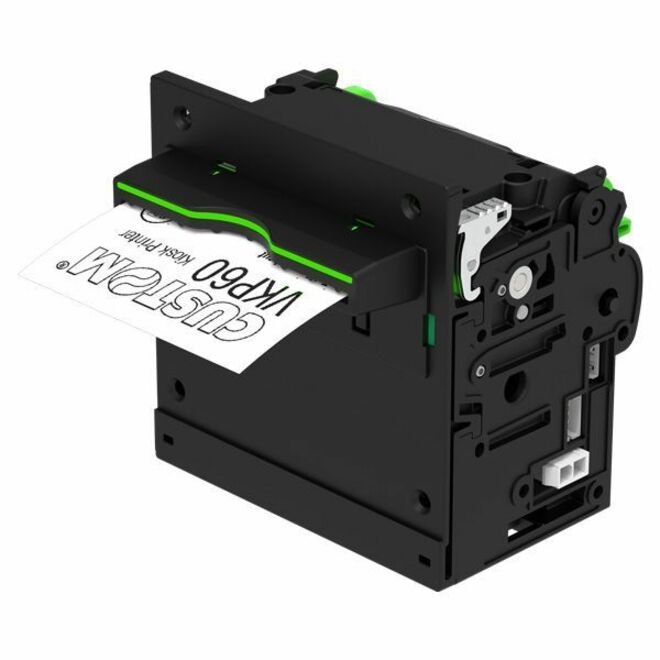

Vkp60 Usb Rs232 Paper Mouth
7.87 in/s Mono - 203 dpi - 2.36" Label Width
- SKU
- 915NA020100300
- Category
- Label/Receipt Printers
MSRP$494.00
$358.24
Save 27%Back ordered — ships when restocked.
Genuine Custom S.p.A through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 915NA020100300
- Category
- Label/Receipt Printers
Overview
VKP60 is the kiosk printer for receipts and tickets, capable of adapting to a wide range of settings thanks to its multiple configurations. Compact, versatile, and packed with features such as anti-jam, total and partial cut, this device fits in any type of kiosk with its roll holder adjustable in two positions. The product boasts self-installing Windows, Linux, OPOS, Java POS, and Status Monitor SDK drivers and it supports PrinterSet, CPT, Windows API, Driver Manager, Android API, and iOS API software tools. VKP60 is available in two different configurations: compact and paper mouth.
Highlights
- Ultra-compact solution capable of total and partial cut
- High versatility with a wide range of accessories make it a suitable for every application
- Easy software integration with CUSTOM configuration utilities and SDK for all operating systems
- Interface friendly USB as default, with serial and ethernet available as options
- Active anti-jam reduces the need for technical service and allows a reliable receipt delivery
- Paper saving mode capable of reducing paper usage by 30% while maintaining the same amount of data
Specifications
| Application/Usage | Gaming, Queue Management System, Kiosk, Banking, Gas Station, Parking, POS Terminal |
|---|---|
| Barcode Symbology Supported | QR Code, PDF417, UPC-E, ITF, EAN-13, EAN-8, Code 39, Code 93, Codabar, AZTEC, Data Matrix, UPC-A |
| Package Contents |
|
| Product Type | Direct Thermal Printer |
| Manufacturer Part Number | 915NA020100300 |
| Media Thickness | 5.12 mil |
| Power Source | DC |
| Recommended Use | Receipt/Ticket Print |
| Maximum Roll Diameter | 3.94" |
| Weight (Approximate) | 11.99 oz |
| Features | Versatile, Ultra Compact, Paper Saving Mode |
| Manufacturer | Custom S.p.A |
| Product Model | VKP60 |
| Product Name | VKP60 60mm Ultra-Compact Receipt/Ticket Kiosk Printer |
| Power Consumption | 800 mA |
| Brand Name | Custom |
| Print Head Life | 100M |
| Media Type | Ticket, Receipt |
| Height | 3.5" |
| Width | 3.4" |
| Depth | 2.8" |
| Cutter | Yes |
| Maximum Mono Print Speed | 7.87 in/s |
| Media Sensor | Paper Presence Sensor, Cover Open Sensor, Black Mark Sensor, Anti-paper Jamming Sensor, Head Temperature Sensor |
| USB | Yes |
| Serial Port | Yes |
| USB Standard | USB 2.0 |
| Maximum Label Width | 2.36" |
| USB Host | Yes |
| Cutter Life | 1000000 Cuts |
| Print Color Capability | Monochrome |
| Character Sets | Korean, PC437, PC850, PC858, PC860, PC862, PC863, PC864, PC865, PC866, Katakana, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254, PC949, Chinese (GB18030), WPC1258, WPC1257, WPC1256, WPC1255 |
| Cut Type | Full/Partial Cut |
| Maximum Print Resolution (dpi) | 203 |
| Operating Temperature | -4°F (-20°C) - 158°F (70°C) |
| Operating Relative Humidity | 10% - 90% |
