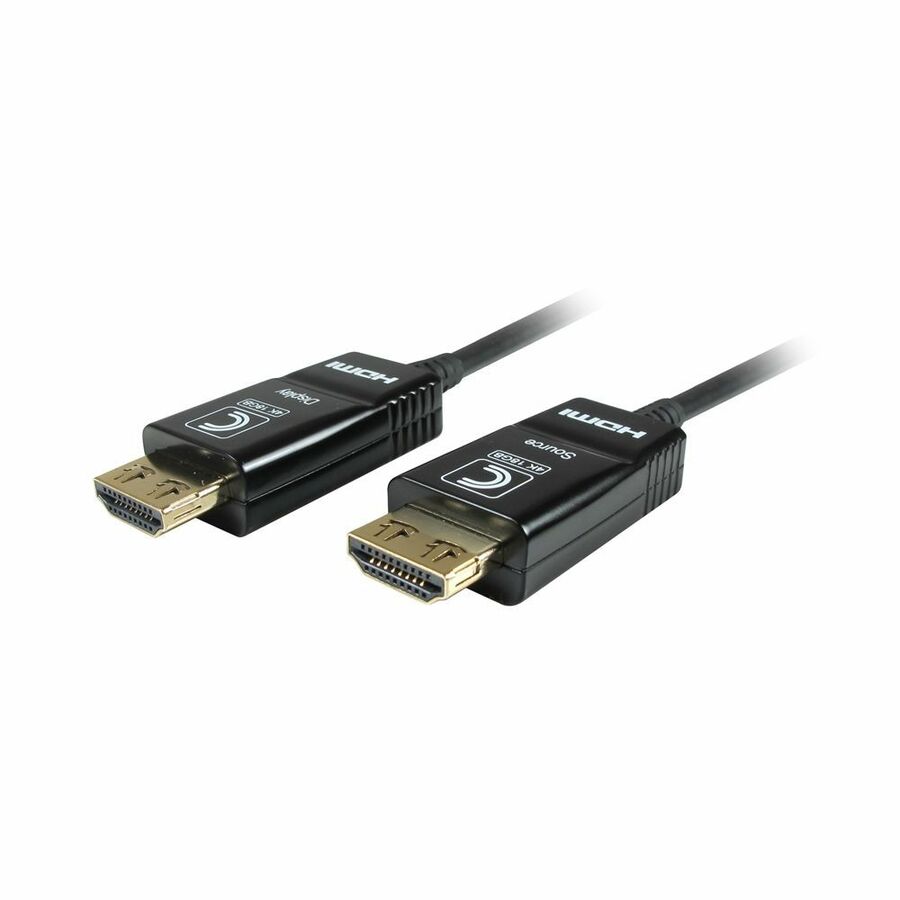

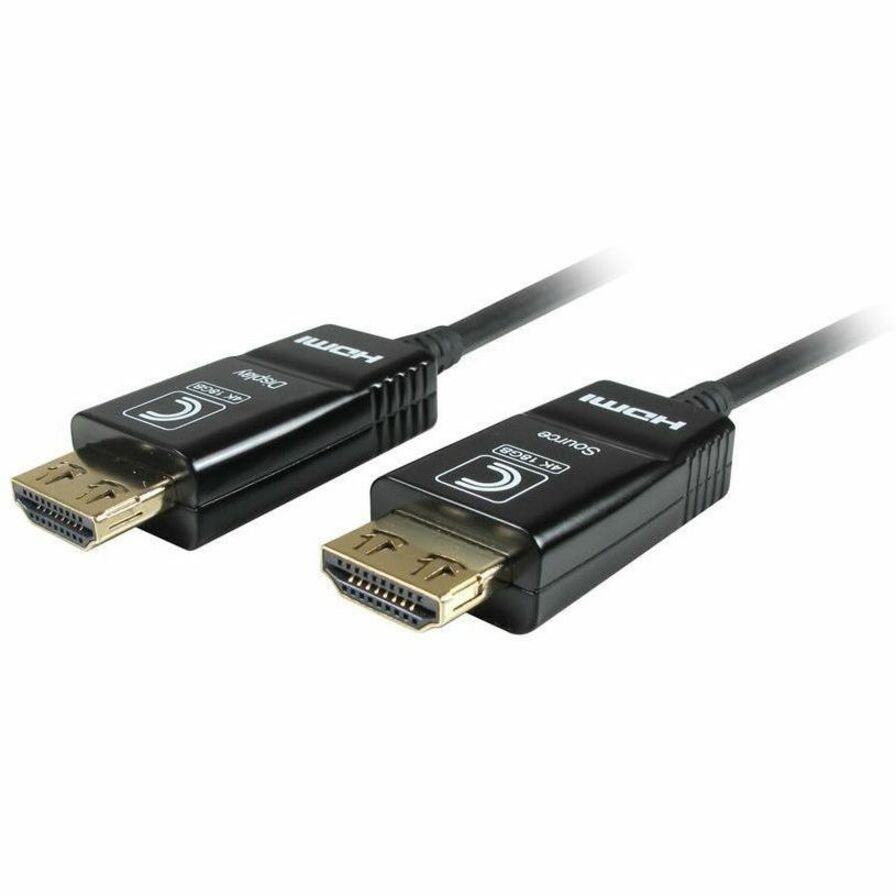

Comprehensive Pro AV/IT Integrator Series Fiber Optic Audio/Video Cable
32 ft Fiber Optic A/V Cable for Notebook, PC, Video Device - First End: 1 x HDMI 2.0b Digital Audio/Video - Male - Second End: 1 x HDMI 2.0b Digital Audio/Video - Male - 18 Gbit/s - Supports up to 3840 x 2160 - Plenum, FT6, CMP - TAA Compliant
- SKU
- HD18G-32PROPAF
- Category
- Connector Cables
MSRP$272.99
$228.83
Save 16%Back ordered — ships when restocked.
Genuine Comprehensive Connectivity through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- HD18G-32PROPAF
- Category
- Connector Cables
Overview
Comprehensive's Pro AV/IT Integrator Series? Certified Active Optical Plenum HDMI Cables offer best-in-class resolution and a low-smoke, fire-retardant plenum jacket.
Comprehensive's Pro AV/IT Active Optical Plenum HDMI Cables feature full Ultra HD, 18G 4K 60 4:4:4 End to End resolution . They enable high-speed, plug-and-play HDMI signal transmission up to 100ft. Perfect A/V distribution for conference rooms, classrooms, digital signage or other commercial applications. Comprehensive Pro AV/IT Integrator Series? Certified Active Optical Plenum HDMI Cables use active components in the connectors to perform electrical-to-optical signal conversion, drawing power from the HDMI port. Each Active Optical Plenum HDMI Cable is thin, light, flexible, and plenum rated to make it easy to pull through conduit. Comprehensive plastic optical fibers can accommodate very tight bends with no loss of signal, unlike glass optical fibers.
Pro AV/IT Active Optical Plenum HDMI Cables send video using light pulses, which provide higher immunity to EMI/RFI interference and electromagnetic noise. HDR, EDID, CEC, HDCP, and RoHS compliant. Lifetime Warranty.
Important notes:
These are Active Fiber Optic Cables which contain an active chip to process and distribute the signal. In some cases, there can be performance or compatibility challenges with certain laptops, PC's or other sources depending on a variety of system conditions. Please call our support department if you experience any of these type of issues.
This cable features a unidirectional design which requires the cable to be installed in the correct direction. The HDMI connectors are labeled "Source" and "Display" to ensure that the device and HDMI source are properly connected.
Being a Fiber Optic cable, it must be handled with more care than a copper cable during installation as extreme force and/or excessive or sharp bends could potentially damage or break the cable inside.
Highlights
- Full UHD HDMI 2.0b 18G, HDR, 4K @ 60Hz 4:4:4, with all audio support - all lengths
- ProGrip® connector utilizes up to 16 lbs of retention force to help keep connector in place
- SureLength® indicators on the connector heads make it easy to organize for installations
- Available in pre-terminated lengths up to 100ft
- Thin and flexible with indefinite long-term bend radius of ~0.2"
- Strong pull tension (up to 100lbs)
- UL CMP-OF/FT-6 rated for all plenum applications
- Active connectors require no external power supply
- Polymer optical fiber technology provides low power consumption and low EMI
- EDID, CEC and HDCP compatible
- RoHS Compliant
- Lifetime Warranty
Specifications
| Cable Length | 32 ft |
|---|---|
| Product Type | A/V Cable |
| Data Transfer Rate | 18 Gbit/s |
| Device Supported | Notebook, PC, Video Device |
| Jacket Type | Plenum, FT6, CMP |
| Manufacturer Part Number | HD18G-32PROPAF |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2.25 lb |
| Features | Active, Halogen Free, Fire Retardant, EMI/RF Protection, ProGrip, SureLength, Flexible, Extended Display Identification Data (EDID), Consumer Electronics Control (CEC), HDCP, Plug & Play |
| Manufacturer | Comprehensive Connectivity Company |
| Product Name | Pro AV/IT Integrator Series Fiber Optic Audio/Video Cable |
| Product Line | Pro AV/IT Integrator Series |
| Brand Name | Comprehensive |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Cable Type | Fiber Optic |
| Connector Type on First End | HDMI 2.0b Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 2.0b Digital Audio/Video - Male |
| Supported Resolution | 3840 x 2160 |
| TAA Compliant | Yes |
| Connector on First End Details | 1 x HDMI 2.0b Digital Audio/Video - Male |
| Connector on Second End Details | 1 x HDMI 2.0b Digital Audio/Video - Male |
| Jacket Color | Black |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
