Comprehensive Video Extender Kit
Comprehensive Connectivity

Comprehensive Video Extender Kit

SKU
CHE-HDBTWP240K
Category
Miscellaneous Kits

MSRP$1,065.99

$770.55

Save 28%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Comprehensive Connectivity through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CHE-HDBTWP240K
Category
Miscellaneous Kits

Overview

The CHE-HDBTWP240K supports HDMI, USB 2.0 and VGA with audio inputs within a standard 2-Gang US Decora wall box and can transmit HDMI signal over CAT6/6a/7 to a distance up to 131ft for 4K2K@60Hz (4:4:4) or up to 230ft for 1080p60Hz.

Built in auto switching displays the last connected device, you can use the front button controls for manual switching, or serial RS-232 option for remote control. The USB KVM function enables the USB transmission from the receiver to the transmitter. Bi-directional power allows easy connection to either the wall plate end or receiver end. HDCP and EDID are supported via HDBaseT. Supports any Windows OS and requires no driver set up.

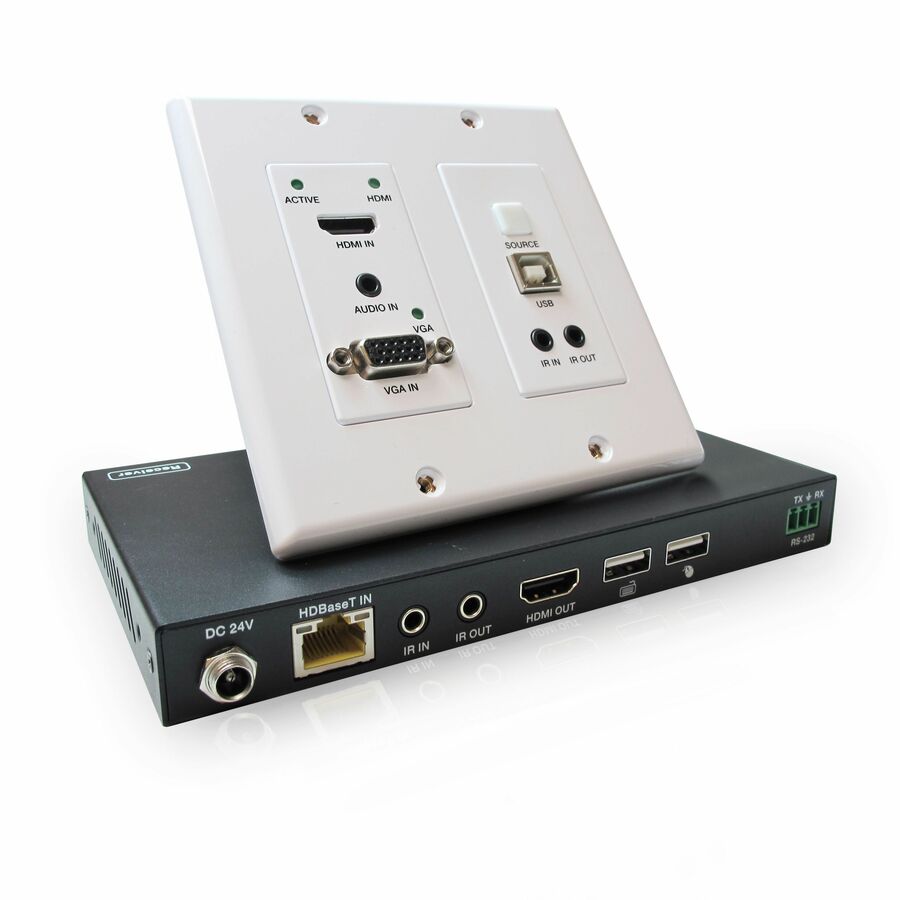

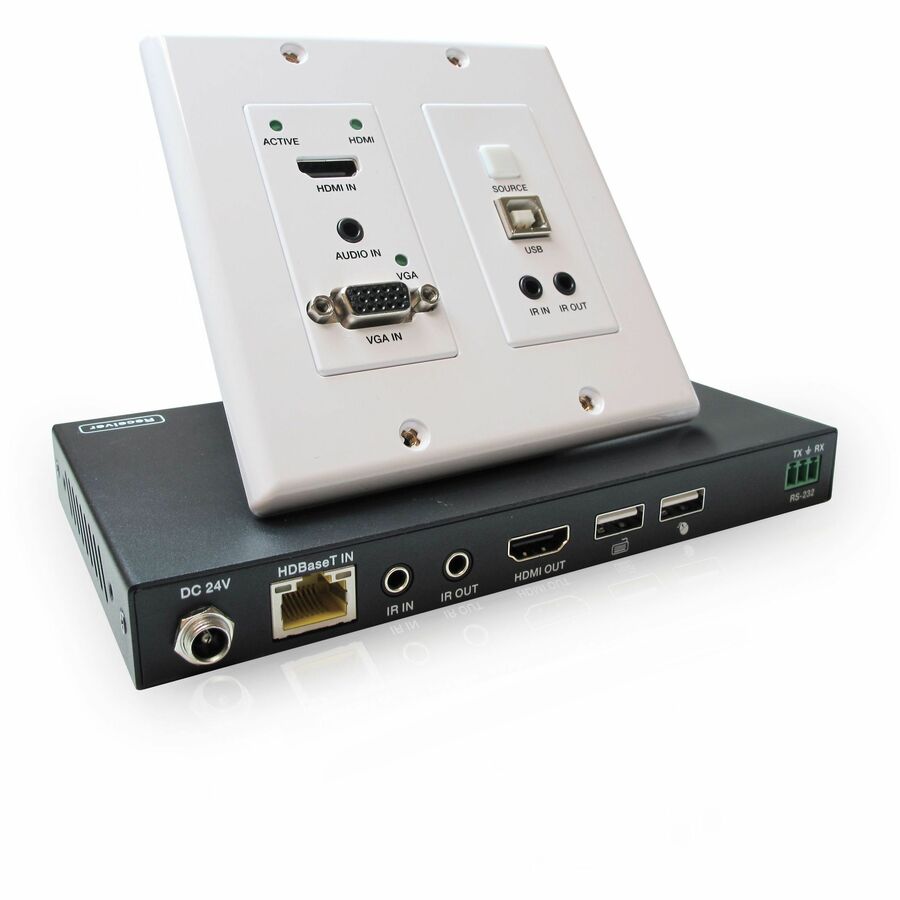

This versatile extender kit includes 1 wall plate transmitter and 1 box style receiver and extends HDMI, USB, VGA and Stereo Audio signals up to 230ft. Connection to the wall box is easy using the 90° RJ45 cable connector. This unit comes with a 3 Year Warranty.

Highlights

  • HDBaseT over a single CAT6/6a/7 cable up to 131 feet (40 meters) distance for 4K@60Hz(4:4:4) or up to 230 feet (70 meters) distance for 1080p@60Hz
  • HDMI input solutions up to 4K2K@60Hz(4:4:4), 4K2K@30Hz, 1080p@120Hz
  • Supports 7.1 channels HD audio format
  • Built-in scaling for VGA input
  • Automatic and manual switching modes
  • HDMI 2.0b 18Gbps
  • HDCP 2.2 compliant
  • Two-way IR, RS-232 and USB 2.0 supported
  • 2-Gang US Decora Wall Plate
  • 24V POC is supported
  • 3 Year Warranty

Specifications

Package Contents
  • 1 x Wall plate transmitter
  • 1 x Box style receiver
Product TypeVideo Extender Kit
DimensionsReceiver - Dimension: 6.78" x 3.83" x 0.78" Trasnmitter - Dimension: 3.6" x 4.13" x 1.7"
Manufacturer Part NumberCHE-HDBTWP240K
Limited Warranty3 Year
Weight (Approximate)Wall plate Transmitter: Weight: .9lbs Receiver Weight: 1.0lbs
ManufacturerComprehensive Connectivity Company
Product NameVideo Extender Kit
Brand NameComprehensive
Country of OriginChina
