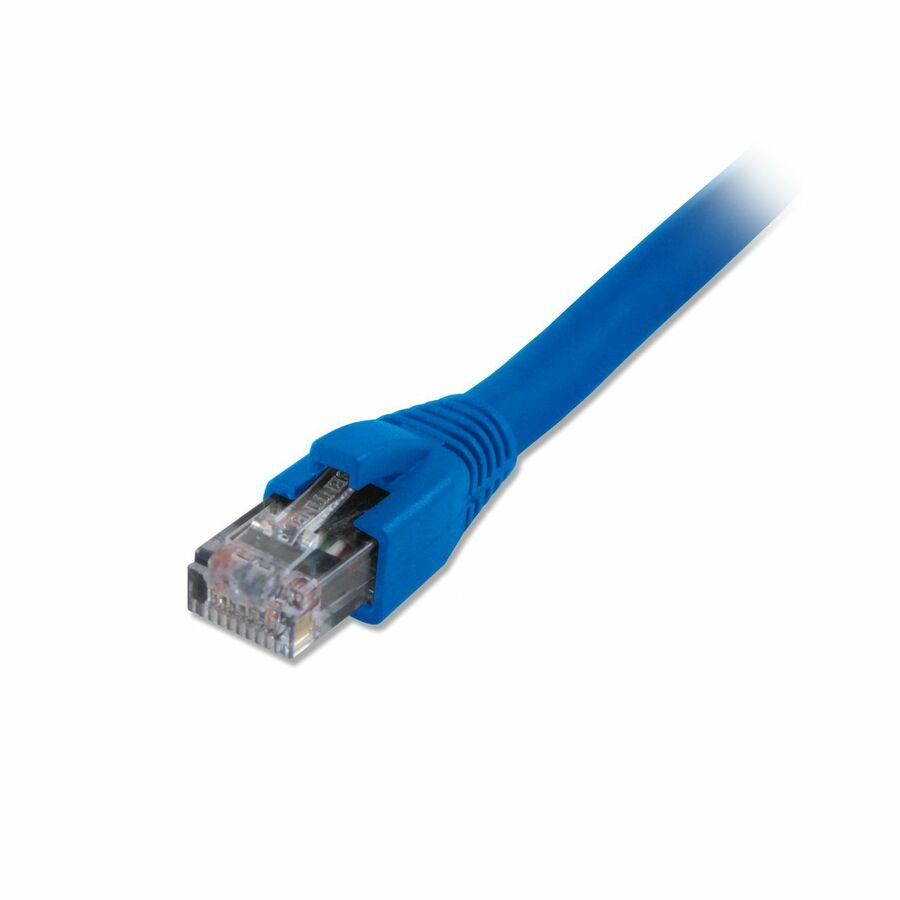

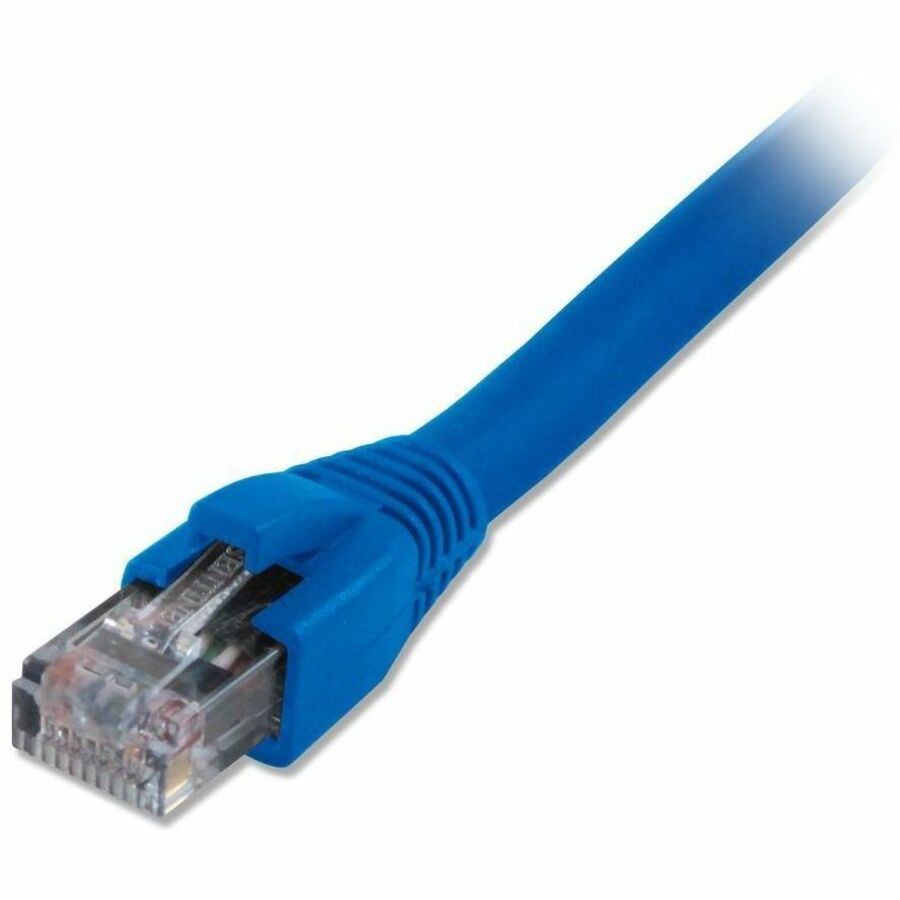

Comprehensive Cat6 Snagless Solid Plenum Shielded Blue Patch Cable 75ft
75 ft Category 6 Network Cable for Network Device - First End: 1 x RJ-45 Network - Male - Second End: 1 x RJ-45 Network - Male - 1 Gbit/s - Patch Cable - Shielding - FT6, Plenum, CMP - 23 AWG - Blue
- SKU
- CAT6SHP-75BLU
- Category
- Connector Cables
MSRP$245.99
$151.78
Save 38%Back ordered — ships when restocked.
Genuine Comprehensive Connectivity through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CAT6SHP-75BLU
- Category
- Connector Cables
Overview
Comprehensive's Category 6 550MHz plenum shielded local area network cable utilizes 4 twisted pairs, an overall shield, plenum jacket, and solid 23 awg construction.
Comprehensive's Category 6 Shielded 550MHz Plenum cable supports all category 6 applications including Ethernet 100BASE -TX, 100BASE-VG and 155 ATM. Particularly suited for high bandwidth applications such as 622 ATM, Wideband, and Ethernet 1000BASE-T. Comprehensive uses 23 AWG solid bare copper conductor insulated with FEP. Two colored mated insulated conductors twisted together to form a pair and four pairs assembled around a pair separator to form a core. The core is overall shielded and jacketed with a low smoke flame retardant PVC. Perfect for distributing data, voice and video on today's high speed ethernet and gigabit networks.
These CAT6 550 Mhz Snagless Patch Cables have a molded low profile, snagless boot that makes installing these cables quick and easy everytime while providing superior strain relief. RoHS Compliant. Lifetime Warranty.
Highlights
- High-Performance Data Communications Cable for Noisy Environments
- Suitable for 550MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI
- Category-6 Shielded Twisted Pair (FTP) Plenum Cable
- 4-Pair - Easily Identified Color-Striped Pairs
- 23AWG Solid Bare Copper Conductors
- Excellent Attenuation and Crosstalk Characteristics
- Exceeds EIA/TIA 568 B.2-1, UL, CSA and ISO/IEC 11801 specifications
- CMP/FT6 rated for use in walls and in ceiling
- UL/cUL or ETL Listed
- Comprehensive Lifetime Warranty
Specifications
| Cable Length | 75 ft |
|---|---|
| Product Type | Network Cable |
| Data Transfer Rate | 1 Gbit/s |
| Device Supported | Network Device |
| Jacket Type | FT6, Plenum, CMP |
| Manufacturer Part Number | CAT6SHP-75BLU |
| Shielding | Yes |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 49 lb |
| Features | Molded, Booted, Strain Relief, Flame Retardant |
| Manufacturer | Comprehensive Connectivity Company |
| Product Name | Cat6 Snagless Solid Plenum Shielded Blue Patch Cable 75ft |
| Brand Name | Comprehensive |
| Country of Origin | China |
| Cable Characteristic | Patch Cable |
| Environmentally Friendly | Yes |
| Cable Type | Category 6 |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| American Wire Gauge | 23 AWG |
| Product Color | Blue |
| Color Family | Blue |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Jacket Color | Blue |
| Boot Type | Snagless |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
