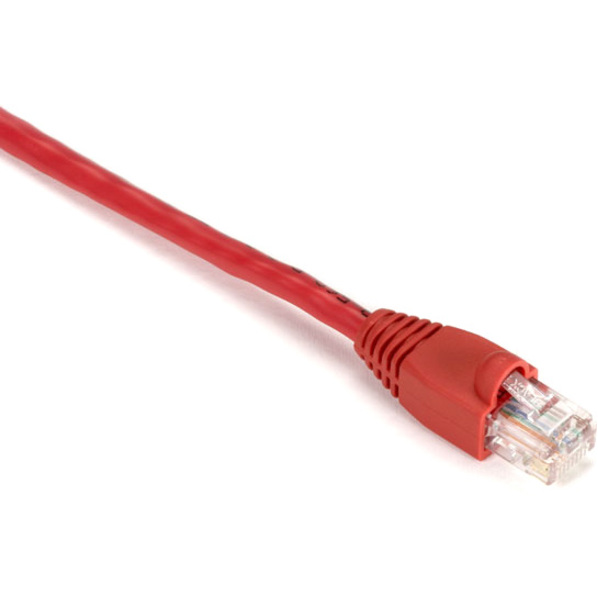

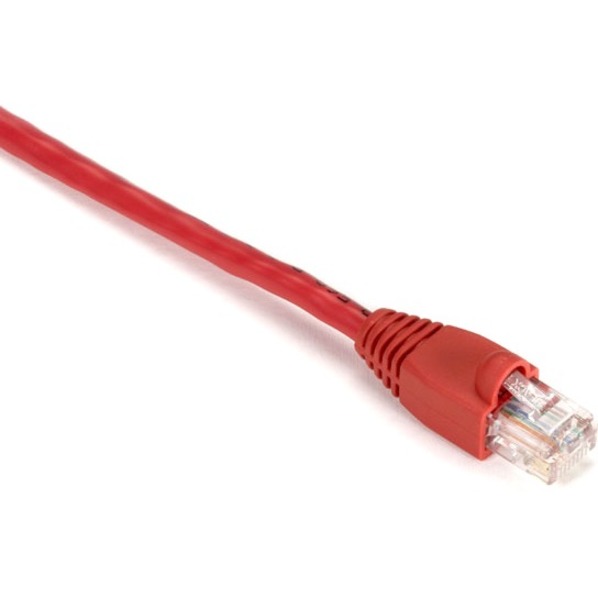

Black Box Gigabase Cat. 5E UTP Patch Cable
RJ-45 Male - RJ-45 Male - 20ft - Red
- SKU
- EVNSL83-0020
- Category
- Connector Cables
MSRP$14.73
$11.74
Save 20%In stock: 1
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- EVNSL83-0020
- Category
- Connector Cables
Overview
Black Box GigaBase Premium CAT5e patch cables are constructed to exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Fast Ethernet applications and guaranteeing the transmission of your voice, data, audio/video and/or PoE signals. Tested to 350-MHz and 1-Gbps performance, these cables exceed the 100-MHz CAT5e spec, greatly reducing impedance, structural return loss, and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity.
These cables have connectors designed for the insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. They also feature snagless boots that provide extra strain relief and prevent connector damage due to cable snags during installation. Available in a variety of lengths and colors, Black Box's GigaBase line of cabling gives you the flexibility to build your install however you want.
Highlights
- GigaBase Premium cable constructed to exceed industry standards
- Cable tested to 350 MHz, surpassing 100-MHz CAT5e standard
- Cabling ETL verified to ANSI/TIA-568-C2
- 50-micron gold-plated contacts provide superior conductivity
- Connector designed for an insertion and extraction life of 750 cycles
- This cable offers superior near-end crosstalk (NEXT) compared to standard CAT5e cable
- Snagless boots prevent connector damage due to snags during installation
- The cable is ideal for 1000BASE-T, 100BASE-TX, 10-BASE-T, and other high-speed applications
Specifications
| Cable Length | 20 ft |
|---|---|
| Product Type | Network Cable |
| Data Transfer Rate | 1 Gbit/s |
| Device Supported | Patch Panel, Wallplate, Network Device |
| Jacket Type | CM |
| Manufacturer Part Number | EVNSL83-0020 |
| Packaged Quantity | 1 Each |
| Shielding | No |
| Limited Warranty | Lifetime |
| Features | Stranded, Booted, Strain Relief, Damage Resistant, Near End Cross Talk (NEXT), PoE |
| Manufacturer | Black Box Corporation |
| Product Name | GigaBase Cat.5e UTP Patch Network Cable |
| Product Line | GigaBase |
| Brand Name | Black Box |
| Country of Origin | China |
| Cable Characteristic | Patch Cable |
| Environmentally Friendly | Yes |
| Cable Type | Category 5e |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| American Wire Gauge | 24 AWG |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Contact Plating | Gold |
| Product Color | Red |
| Color Family | Red |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Boot Type | Snagless |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
