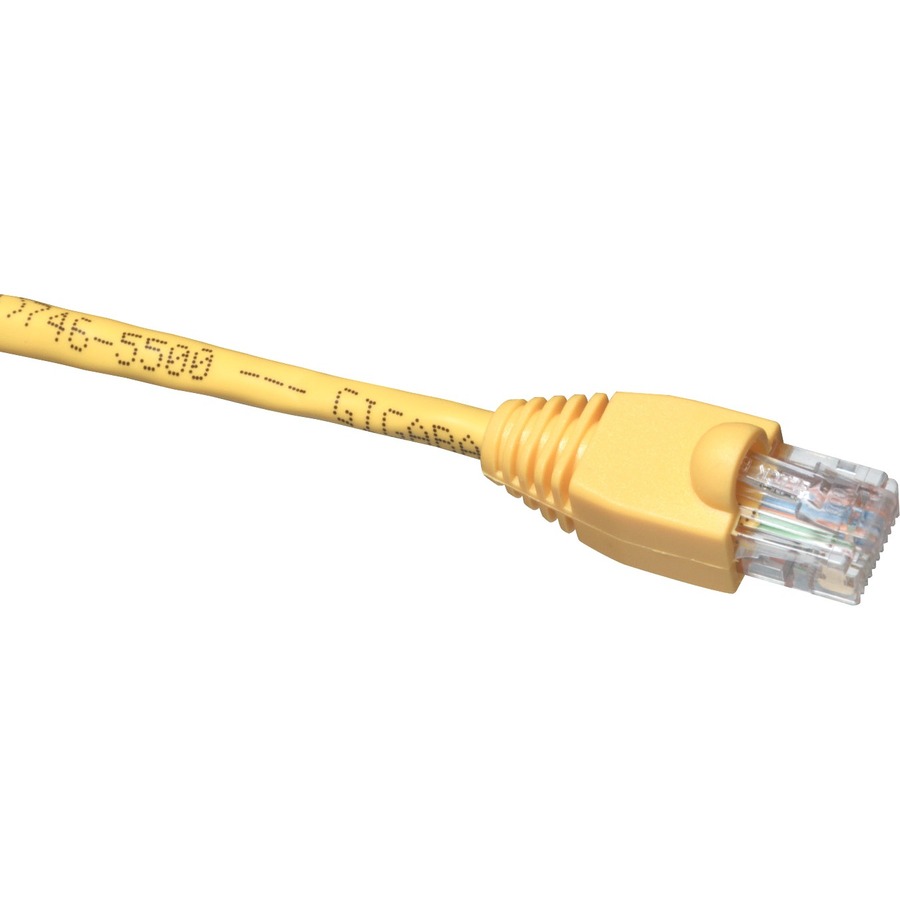

Black Box Gigabase Cat. 5E UTP Patch Cable
RJ-45 Male - RJ-45 Male - 6ft - Yellow
- SKU
- EVCRB84-0006
- Category
- Connector Cables
MSRP$12.30
$9.71
Save 21%Back ordered — ships when restocked.
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- EVCRB84-0006
- Category
- Connector Cables
Overview
Black Box GigaBase Premium CAT5e Crossover Patch Cables exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Fast Ethernet applications and guaranteeing the transmission of your data. They are perfect for making switch-to-switch, computer-to-computer or other crossover connections.
Tested to 350-MHz and 1-Gbps performance, these cables exceed the 100-MHz CAT5e specification, greatly reducing impedance, structural return loss and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity.
These cables have connectors designed for the insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. They also feature snagless boots that provide extra strain relief and prevent connector damage due to cable snags during installation.
Highlights
- GigaBase CAT5e cable perfect for making switch-to-switch or other crossover connections
- Premium cable constructed to exceed industry standards
- Cable tested to 350 MHz, surpassing 100-MHz CAT5e standard
- Cabling ETL verified to ANSI/TIA-568-C.2
- 50-micron gold-plated contacts provide superior conductivity
- Connector designed for an insertion and extraction life of 750 cycles
- This cable offers superior near-end crosstalk (NEXT) compared to standard CAT5e cable
- Snagless boots prevent connector damage due to snags during installation
Specifications
| Cable Length | 6 ft |
|---|---|
| Product Type | Network Cable |
| Device Supported | Patch Panel, Wallplate, Network Device |
| Jacket Type | CM |
| Manufacturer Part Number | EVCRB84-0006 |
| Packaged Quantity | 1 Each |
| Shielding | No |
| Limited Warranty | Lifetime |
| Features | Stranded, Booted, Damage Resistant, Near End Cross Talk (NEXT), Strain Relief |
| Manufacturer | Black Box Corporation |
| Product Name | GigaBase Cat.5e UTP Patch Network Cable |
| Product Line | GigaBase |
| Brand Name | Black Box |
| Country of Origin | China |
| Cable Characteristic | Patch Cable |
| Environmentally Friendly | Yes |
| Cable Type | Category 5e |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| American Wire Gauge | 24 AWG |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Contact Plating | Gold |
| Product Color | Yellow |
| Color Family | Yellow |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Boot Type | Snagless |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
