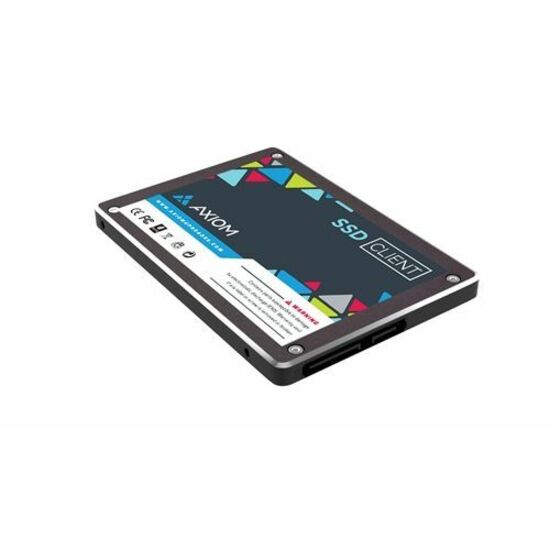

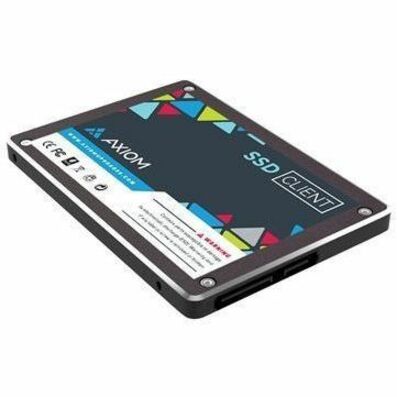

Axiom 1.92TB C565e Mobile SSD 3D TLC 6Gb/s SATA-III
Axiom 1.92TB C565e Series Mobile SSD 6Gb/s SATA-III 3D TLC
- SKU
- SSD2558HX1T9-AX
- Category
- Hard Drives/Solid State Drives
MSRP$1,269.00
$982.98
Save 23%In stock: 12
Genuine Axiom Memory Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SSD2558HX1T9-AX
- Category
- Hard Drives/Solid State Drives
Overview
The Axiom C565e Series SSD features high quality 3D TLC NAND flash and the security features of OPAL 2.0/256-bit AES Encryption these SSDs are loaded with enhancements to promote a secure, high performing and reliable computing environment. The 3D TLC SSD provides outstanding transfer speeds. Improved system startup, data access, application loading, and backup times are realized when upgrading systems to an Axiom SSD. External DRAM and SLC Cache is included and further enhances read/write and IOPS ratings. The 3D TLC SSD is an ultra-low-power storage solution with DevSleep support, providing improved notebook battery life. 3D TLC SSDs are compatible with any operating system and work in both SATA and SAS environments. Includes 2.5mm spacer adapter to fit most notebook applications that use a 7mm or 9.5mm drive bay. Fast Performance
• Highest read and write speeds in its class
• Virtually zero spin up or seek times
• Zero rotational latency
• High sustained data transfer rate Secure
• OPAL 2.0 Compliant
• 256-bit AES compliant Data Encryption Reliable
• TRIM, Wear Leveling, StaticDataRefresh and LDPC ECC functions optimize data processing efficiency
• S.M.A.R.T. and a built-in temperature sensor assist with monitoring drive health
• No volatile memory elements
• Improved resistance to shock & vibration
• Predictable and manageable failure modes reduce IT costs Reduced Power Requirements
• No moving parts
• Super-low operating and standby power needs
• Power requirements notably reduced over a typical HD Improved Operation
• Noise and vibration free
• Virtually no heat emissions
Highlights
- Silicon Motion SM2258 controller
- SLC caching accelerates burst performance
- Direct-to-TLC mode enhances sustained write performance
- Global wear leveling evens program/erase counts to extend drive lifespan
- StaticDataRefresh technology ensures data integrity
- Intelligent garbage collection routines for advanced free space management
- TRIM command support (OS dependent)
- S.M.A.R.T. support
- LDPC hard and soft decode ECC
- DEVSLP support
Specifications
| Package Contents |
|
|---|---|
| Product Type | Solid State Drive |
| Compatibility |
|
| Device Supported | Mobile Computing Device |
| Storage Capacity | 1.92 TB |
| Manufacturer Part Number | SSD2558HX1T9-AX |
| Limited Warranty | 3 Year |
| Drive Type | Internal |
| Durability | Shock Resistant, Vibration Resistant |
| Form Factor | 2.5" |
| Manufacturer | Axiom Memory Solutions |
| Product Name | 1.92TB C565e Mobile SSD 3D TLC 6Gb/s SATA-III |
| Product Line | Client |
| Product Series | C565e |
| Brand Name | Axiom |
| Encryption Standard | 256-bit AES |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Random 4KB Read | 100000IOPS |
| Random 4KB Write | 91000IOPS |
| Operating System Compatibility | ChromeOS |
| TAA Compliant | Yes |
| Endurance (DWPD) | 0.27 |
| Endurance (TBW) | 600 TB |
| Mean Time Between Failures (MTBF) | 171.1 Year |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Maximum Sequential Read | 565 MB/s |
| Maximum Sequential Write | 530 MB/s |
