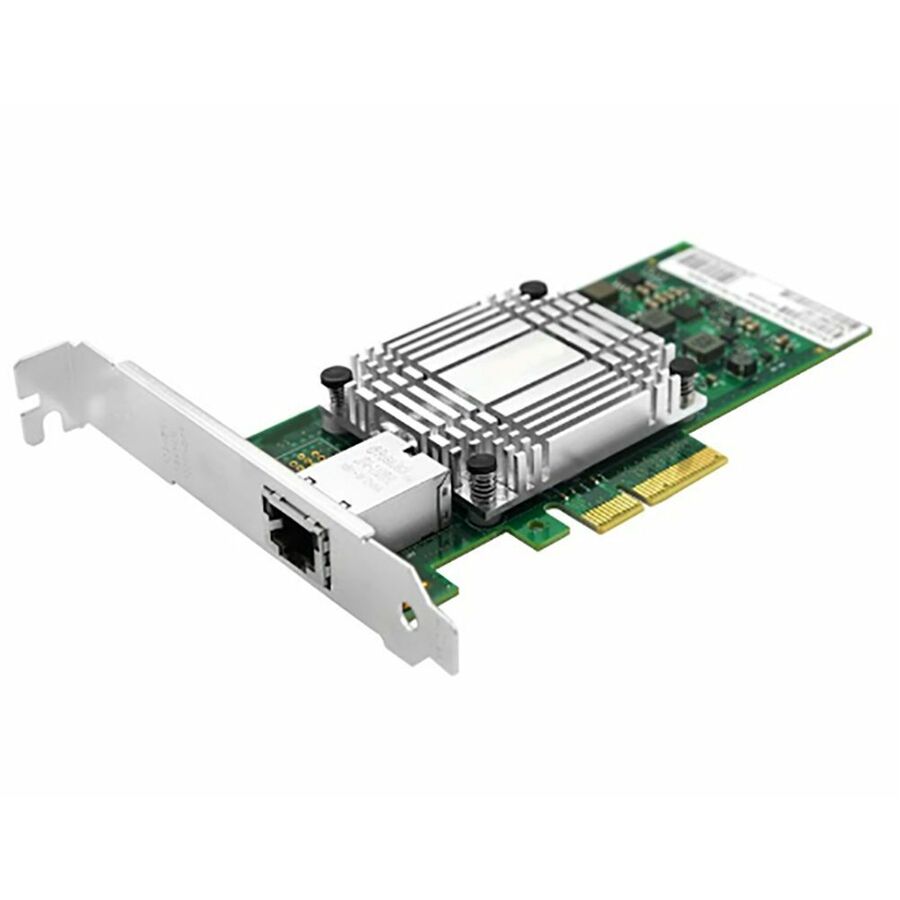

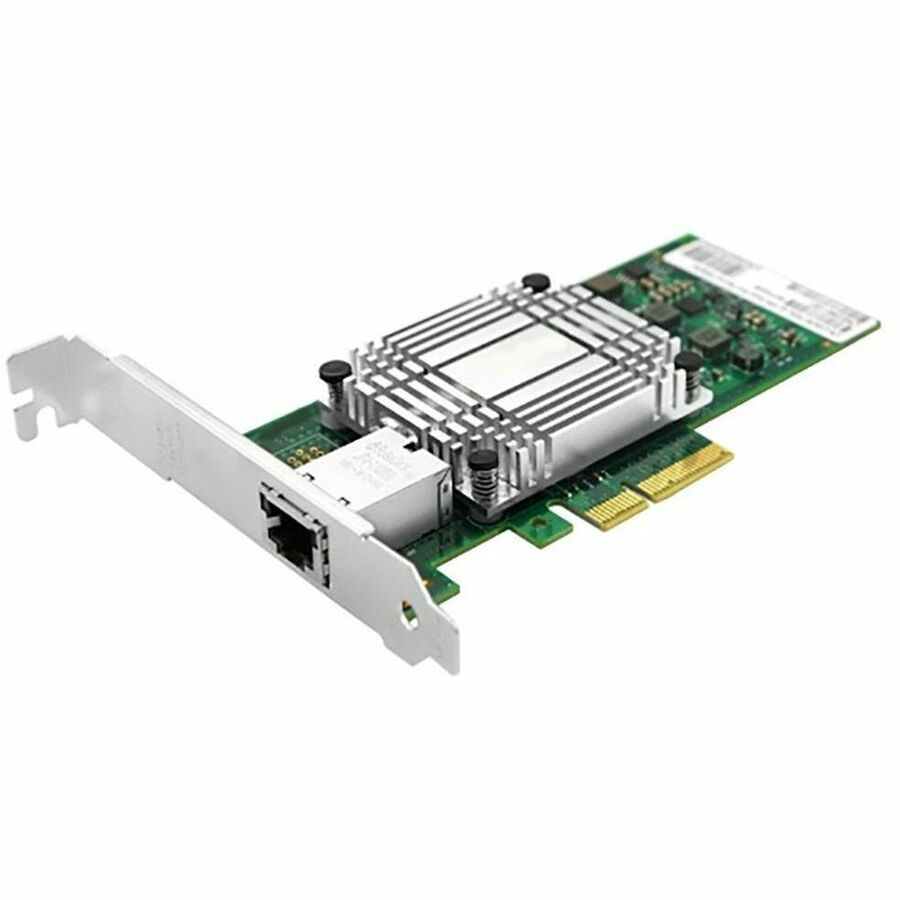

Axiom Single-Port, High-Speed 10GBase-T/NBase-T Add-In Card For Synology NAS Servers
PCI Express 3.0 x4 - 10 Gbit/s Data Transfer Rate - Intel X550AT - 1 Port(s) - 1 - Twisted Pair - 10GBase-T - Plug-in Card
- SKU
- E10G18-T1-AX
- Category
- Network Interface Cards
MSRP$346.15
$273.92
Save 21%In stock: 12
Genuine Axiom Memory Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- E10G18-T1-AX
- Category
- Network Interface Cards
Overview
Axiom's 10GbE Copper Network Adapters are the latest generation of high-performance PCIe 3.0 x4 Lane 10 Gigabit NIC Cards, based on the Intel X550AT controller. The server adapter simplifies migration to 10 Gigabit Ethernet (GbE), Provides iSCSI FCoE Virtualization and Flexible Port Partitioning (FPP).
Key Features
• Low cost, low power, 10GbE performance for the entire datacenter.
• New generation single- and dual-port 1OGBASE-T controller with integrated MAC and PHY
• Standard CAT6a cabling with RJ45 connectors.
• Supports NBASE-T technology (2.5 and 5.0 GbE over CAT 5e)
• Backward compatibility with existing 1000BASE-T networks simplifies the transition to 10GbE.
• PCI Express - (PCIe) v3.0 with up to 8.0 GT/s
• Unified networking delivering LAN iSCSI and FCoE in one low-cost CNA.
• Flexible 1/0 virtualization for port partitioning and Quality of Service (QoS) of up to 64 virtual ports
• Reliable, proven 10GbE technology from Intel Corporation.
• Includes Full Height and Half Height Mounting Brackets
Highlights
- 10Gigabit Ethernet Card guarantees a replacement networking interface to client, server or workstation
- PCI Express 3.0 x4 interface provides enhanced bandwidth for the quick access of data by the operating system and applications
- Add your computer to your home or office network with this single port 10gigabit ethernet card conveniently
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable
Specifications
| Package Contents |
|
|---|---|
| Host Interface | PCI Express 3.0 x4 |
| Product Type | 10Gigabit Ethernet Card |
| Device Supported | NAS Storage Device |
| Manufacturer Part Number | E10G18-T1-AX |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 6.56 oz |
| Form Factor | Plug-in Card |
| Manufacturer | Axiom Memory Solutions |
| Product Model | E10G18-T1-AX |
| Product Name | Single-Port, High-Speed 10GBase-T/NBase-T Add-In Card For Synology NAS Servers |
| Network Technology | 10GBase-T |
| Brand Name | Axiom |
| Height | 6.6" |
| Width | 0.7" |
| Depth | 2.8" |
| Chipset Manufacturer | Intel |
| Chipset Model | X550AT |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Number of Network (RJ-45) Ports | 1 |
| Media Type Supported | Twisted Pair |
| Total Number of Ports | 1 |
