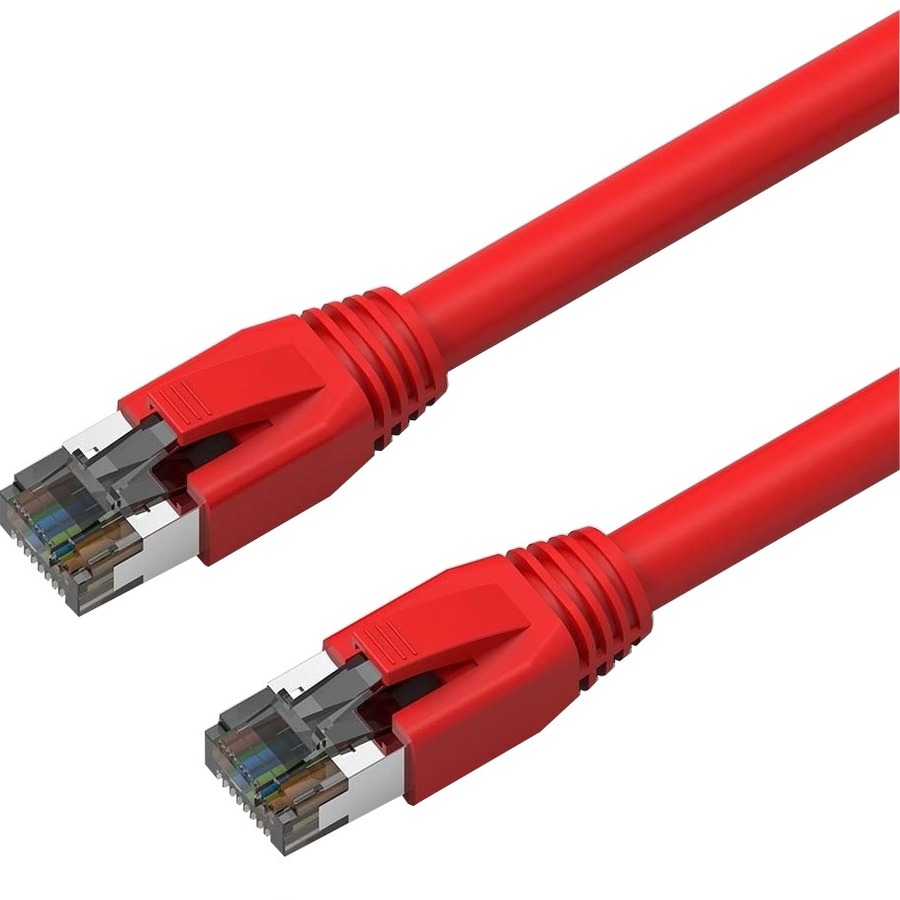

Axiom 7FT CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (Red)
7 ft Category 8 Network Cable for Network Device - First End: RJ-45 Network - Male - Second End: RJ-45 Network - Male - 40 Gbit/s - Patch Cable - Shielding - Gold, Nickel Plated Contact - Red
- SKU
- C8SBSFTP-R7-AX
- Category
- Connector Cables
MSRP$28.00
$23.17
Save 17%In stock: 1
Genuine Axiom Memory Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- C8SBSFTP-R7-AX
- Category
- Connector Cables
Overview
Axiom's CAT8 Ethernet Cables are the first future proof, cost effective, high performance solution capable to reach up to 40Gbps transfer speeds and up to 2GHz of bandwidth. They are made of (4) twisted pure copper wire pairs and each pair is foil-shielded and also the 4 pairs have an overall braided shield. This double shielding structure provides a maximum EMI protection. The snagless boot protects the locking tabs on the RJ45 connectors from being damaged. Our Category 8 shielded cables are offered in a variety of lengths from 6 inch to 50 feet and are available in 9 different colors
• Conductor: 4-pair S/FTP stranded copper (6-inch to 7ft use 24AWG wire and 10ft to 50ft use 26AWG wire)
• Shielding: Each pair Foil shielded / 4 Pair Braid Shield
• Connector: 8P8C RJ45 50 micron gold-plated contacts two-piece with nickel plated shielding
• Provides EMI/RFI shielding in Ethernet networks
• Wiring: T568B standard
• Jacket: PVC
• Standard: Category 8 Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant
• Snagless Rubber Boots with Strain Relief
• Max Bandwidth: Up to 2,000 MHz (2GHz)
• Max data rate: Up to 40Gps
• Min Avg. jacket Thickness: 0.60 +/- 0.1mm
• Backward Compatible with all categories Cat5E, Cat6, Cat6A, Cat7 Networks
• Available in all lengths from 6-Inch to 50ft
• Colors: K= Black, B= Blue, G=Gray, N=Green, O=Orange, P= Purple, R= Red, W=White, Y= Yellow
Highlights
- Allows you to access all of the networked data, swiftly and securely
- Features Category 8 cable type to better accommodate your precise requirements with maximum productivity
- Fully compatible with network devices
Specifications
| Cable Length | 7 ft |
|---|---|
| Product Type | Network Cable |
| Data Transfer Rate | 40 Gbit/s |
| Device Supported | Network Device |
| Manufacturer Part Number | C8SBSFTP-R7-AX |
| Shielding | Yes |
| Features | Double Shielded, Strain Relief, EMI/RF Protection |
| Manufacturer | Axiom Memory Solutions |
| Product Name | 7FT CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (Red) |
| Brand Name | Axiom |
| Cable Characteristic | Patch Cable |
| Environmentally Friendly | Yes |
| Cable Type | Category 8 |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Shielding Material | Foil |
| Contact Plating | Gold, Nickel |
| Product Color | Red |
| Connector on First End Details | RJ-45 Network - Male |
| Connector on Second End Details | RJ-45 Network - Male |
| Product Material | Copper |
| Connector Material | Polyvinyl Chloride (PVC) |
| Boot Type | Snagless |
