Altronix
Altronix AL1002ULADA Proprietary Power Supply
Wall Mount - 110 V AC Input - 24 V DC Output
- SKU
- AL1002ULADA
- Category
- Power Supplies
MSRP$859.95
$458.91
Save 47%Back ordered
Back ordered — ships when restocked.
Genuine Altronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- AL1002ULADA
- Category
- Power Supplies
Overview
Altronix AL1002ULADA is an extremely cost effective voltage regulated remote NAC Power Extender. It may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC) expansion (supports ADA requirements) and providing auxiliary power to support system accessories.
Highlights
- NAC Power Extender.
- 24VDC @ 10A. 2 Class A or 4 Class B NAC circuits.
- Operates 2-wire Horn/Strobes, generates Cooper/Wheelock, System Sensor, Gentex, Faraday and Amseco sync protocols.
- 1A aux. output with battery backup.
- UL listed.
Specifications
| Product Type | Proprietary Power Supply |
|---|---|
| Compatibility | Fire Alarm Control Panel |
| Input Voltage | 110 V AC |
| Manufacturer Part Number | AL1002ULADA |
| Packaged Quantity | 1 |
| Limited Warranty | Lifetime |
| Output Voltage | 24 V DC |
| Weight (Approximate) | 13.30 lb |
| Form Factor | Wall Mount |
| Manufacturer | Altronix Corporation |
| Product Model | AL1002ULADA |
| Product Name | AL1002ULADA Proprietary Power Supply |
| Protection Type | Thermal Overload, Short Circuit |
| Brand Name | Altronix |
| Output Current | 10 A |
| Country of Origin | United States |
| Height | 15.5" |
| Width | 12.2" |
| Depth | 4.5" |
| Environmentally Friendly | Yes |
| Output Voltage Detail | 24 V DC @ 10 A |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
More Power Supplies from Altronix

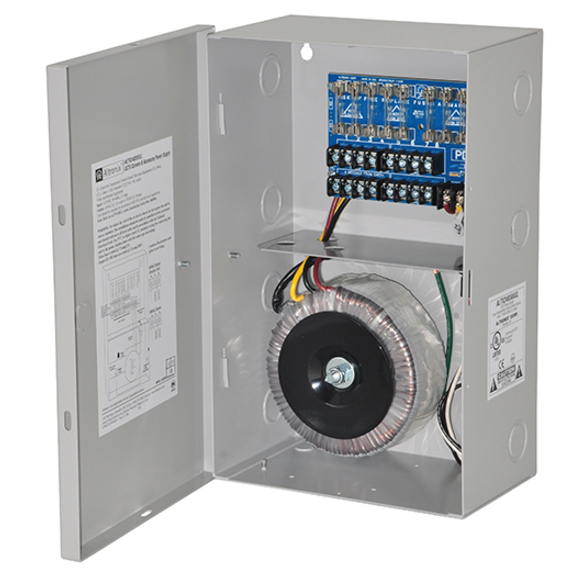

View the Altronix catalog →- AltronixAltronix 8 Fused Outputs CCTV Power Supply - Wall Mount - 115 V AC Input - 24 V AC, 28 V AC OutputALTV248300UL3
$221.59
Back ordered - AltronixAltronix AC CCTV Power Supply - Wall Mount - 230 V AC Input - 24 V AC, 28 V AC OutputALTV248300220
$291.01

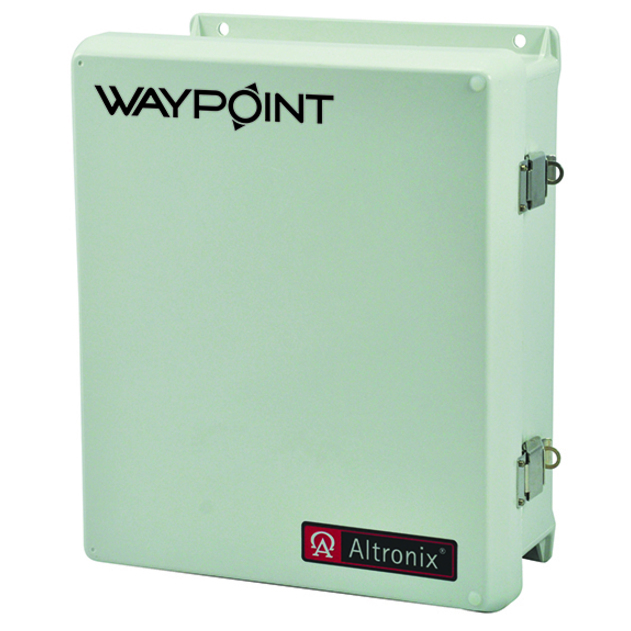

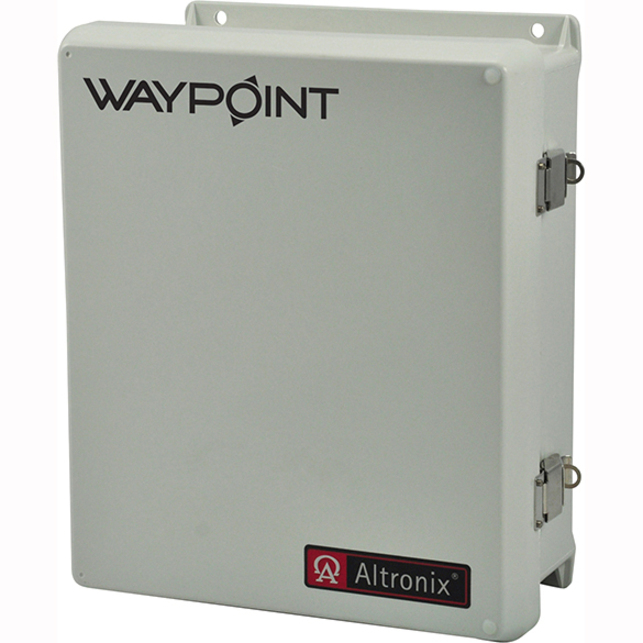

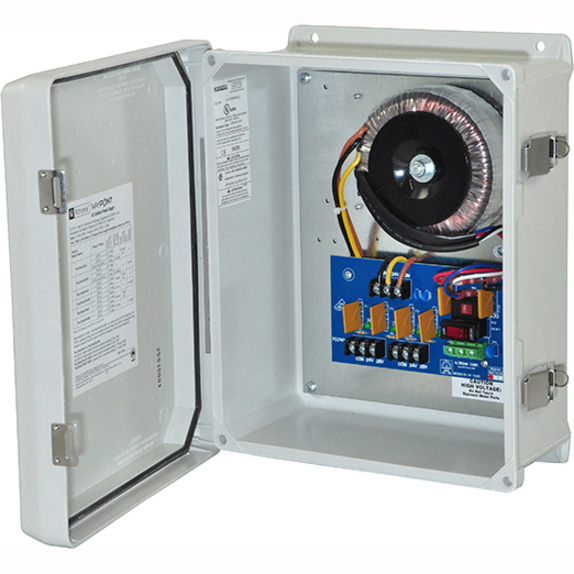

Back ordered - AltronixAltronix AC Outdoor Power Supply - 120 V AC, 230 V AC Input - 24 V AC, 28 V AC OutputWAYPOINT10ADU
