Allied Telesis QSFP28 Module
Allied Telesis

Allied Telesis QSFP28 Module

For Data Networking, Optical Network - 1 x LC 100GBase-LR4 Network - Optical Fiber - Single-mode - 100 Gigabit Ethernet - 100GBase-LR4 - Hot-swappable

SKU
AT-QSFP28LR4
Category
Modules

MSRP$9,707.00

$8,102.05

Save 17%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Allied Telesis through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
AT-QSFP28LR4
Category
Modules

Overview

QSFP28 100 Gigabit Series

Quad Small Form-Factor Pluggable Modules

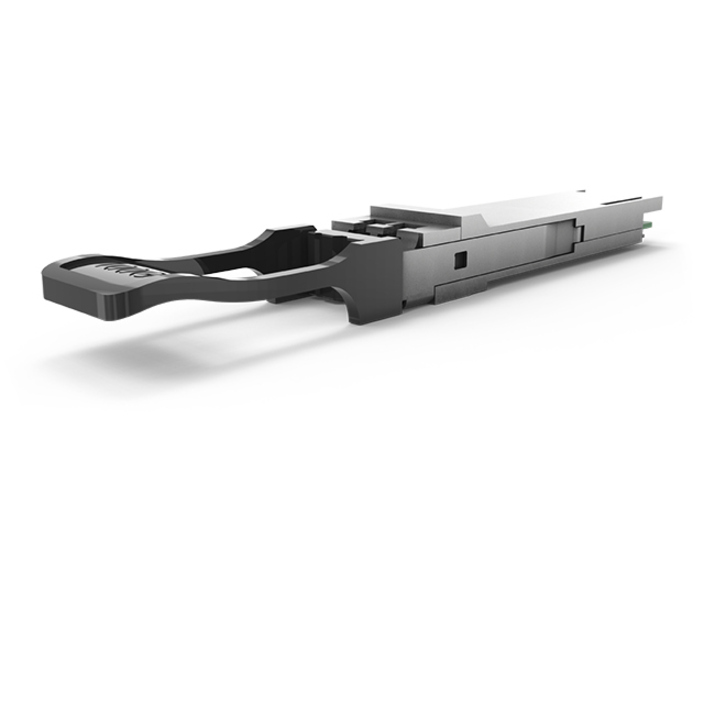

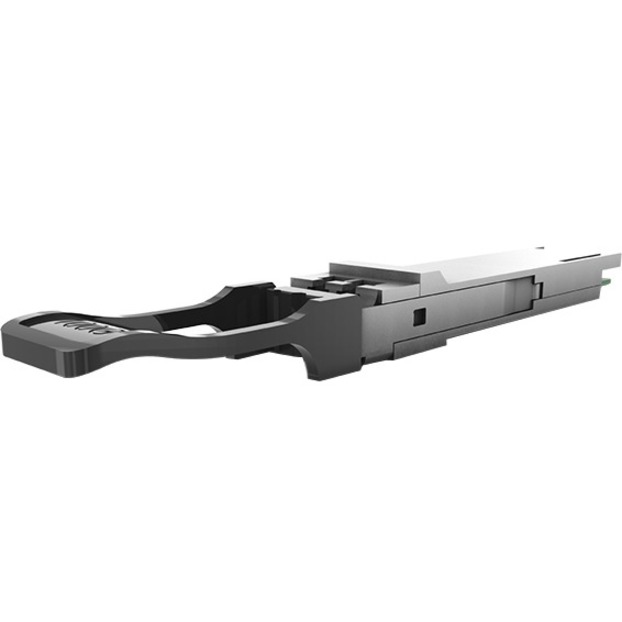

The Allied Telesis QSFP28 Series offers the latest industry-standard connectivity in a flexible, small form factor. These hot-swappable transceiver modules simply plug into any compatible Allied Telesis product.

Options

Allied Telesis QSFP28 Series 100 Gigabit Quad Small Form-Factor Pluggables (QSFPs) are supported on all Allied Telesis devices with QSFP28 uplink connections.

The QSFP28 is hot-swappable to allow for network changes without removal or reconfiguration of costly network equipment.

Applications

The QSFP28 Series supports 100GbE interconnects. They are ideal for Datacom/Telecom switch and router connections, as well as data aggregation, backplane, proprietary protocol and high-density applications.

Interoperability

The Allied Telesis QSFP28 is fully compliant with industry-standard networking regulations so it may be used on any networking equipment which complies with industry standards.

Highlights

  • Compliant to IEEE 802.3bm 100GBASE-SR4 standard (QSFP28-SR4)
  • Compliant to IEEE 802.3ba 100GBASE-LR4 standard (QSFP28-LR4)
  • MSA compliant
  • Compliant to SFF-8665 (QSFP28 Solution) Revision 1.8
  • Up to 25Gbps data rate per wavelength
  • Up to 10 km transmission on single mode fiber (SMF)
  • Operating case temperature: 0~70°C
  • Low power consumption of max 2.5W (Typ. 1.8W) (SR4) and 4.0W (LR4)
  • MPO connector (SR4)
  • LC duplex connector (LR4)

Specifications

Application/UsageData Networking, Optical Network
Product TypeQSFP28
CompatibilityMSA Compliant
Manufacturer Part NumberAT-QSFP28LR4
Interfaces/Ports Details1 x LC 100GBase-LR4 Network
Connector TypeLC
Form FactorHot-swappable
ManufacturerAllied Telesis, Inc
Product NameQSFP28 Module
Network Technology100GBase-LR4
Brand NameAllied Telesis
Country of OriginSingapore
Environmentally FriendlyYes
Ethernet Technology100 Gigabit Ethernet
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports1
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
