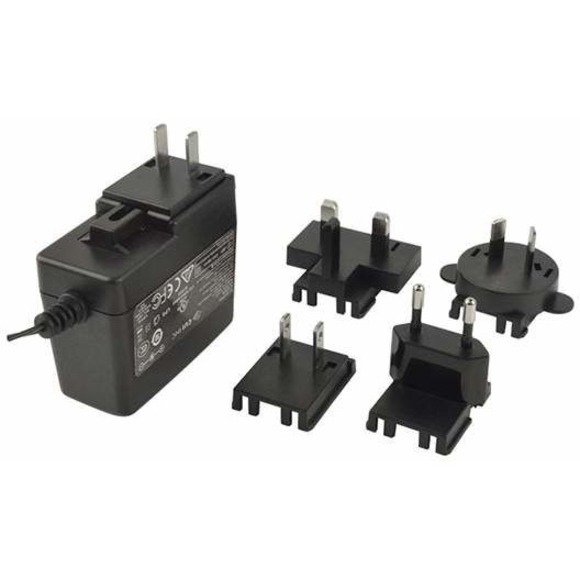

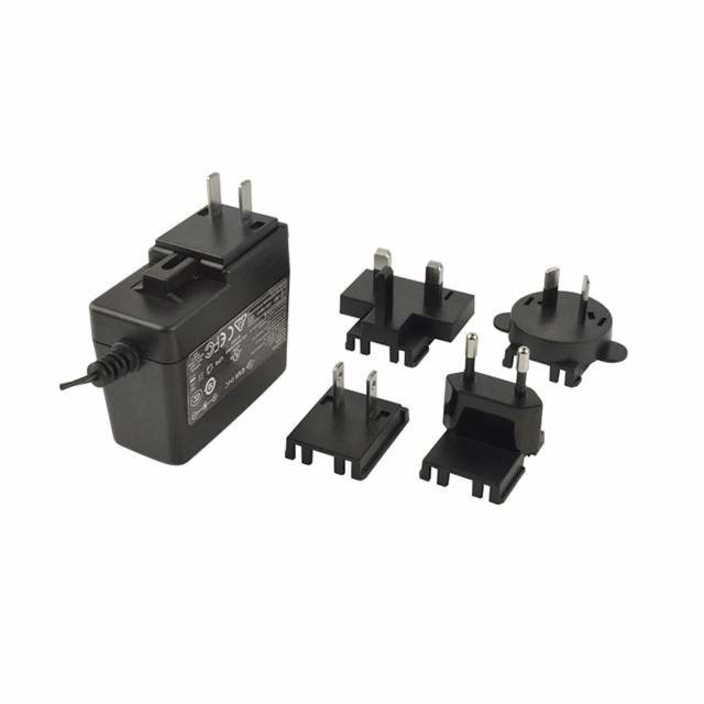

B+B SmartWorx SMI18-12-V-P230-C1 AC Adapter
Advantech

B+B SmartWorx SMI18-12-V-P230-C1 AC Adapter

18 W - 120 V AC, 230 V AC Input - 12 V DC Output - 1.60 A

SKU
SMI18-12-V-P230-C1
Category
Power Adapters

$35.59

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SMI18-12-V-P230-C1
Category
Power Adapters

Overview

CUI Inc. SMI Family Plug Wall Adapters are Ac-Dc power supplies with interchangeable blades. The series are each designed to meet the latest Level VI efficiency standards set to go into effect February 2016. This standard aims to significantly lower the amount of power consumed when the end application is not in use or is no longer connected to the system.

Designed for global use, CUI's SMI adapters include plug options for North America, Europe, the United Kingdom, Australia, and China. These high efficiency power supply adapters are a continuation of CUI's initiative to provide customers with global solutions utilizing the latest in green power technology.

Highlights

  • Up to 18 W continuous power
  • DOE Level VI, CEC, ErP Stage 2
  • no load power consumption < 0.1 W
  • universal input voltage range
  • interchangeable Ac blades for global use
  • over voltage, over current, and short circuit protections
  • UL/cUL, RCM, CCC, and PSE safety approvals

Specifications

Product TypeAC Adapter
Input Voltage120 V AC, 230 V AC
Manufacturer Part NumberSMI18-12-V-P230-C1
Output Voltage12 V DC
Weight (Approximate)6 oz
ManufacturerAdvantech Co., Ltd
Product ModelSMI18-12-V-P230-C1
Product NameSMI18-12-V-P230-C1 AC Adapter
Brand NameB+B SmartWorx
Country of OriginCzech Republic
Height2.6"
Width1.4"
Environmentally FriendlyYes
Maximum Output Current1.60 A
Maximum Output Power18 W
Energy Efficiency ComplianceEnergy-related Products Directive (ErP)
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
