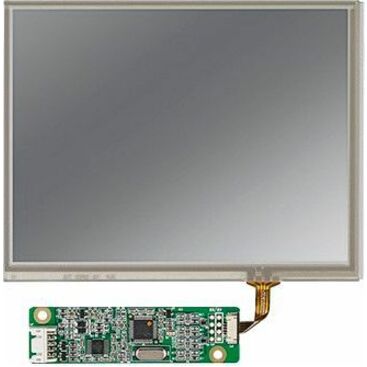

Advantech IDK-1105R-50VGB1 6" Class LED Touchscreen Monitor - 4:3 - 50 ms
5.7" Viewable - 4-wire Resistive - 640 x 480 - VGA - In-plane Switching (IPS) Black Technology - 262k - 500 Nit - LED Backlight - USB
- SKU
- IDK-1105R-50VGB1
- Category
- Touchscreen Monitors
$154.38
Back ordered — ships when restocked.
Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- IDK-1105R-50VGB1
- Category
- Touchscreen Monitors
Overview
Introduction

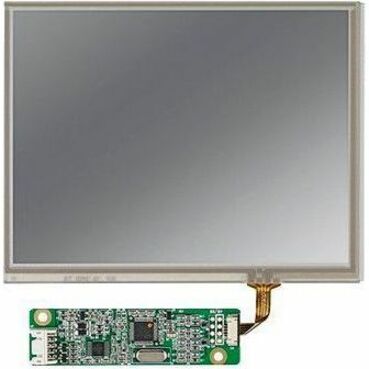

The Advantech IDK-1105 series comes with a 5.7" industrial grade LCD display with 4-wire resistive touch. The series is also available with flexible options for LCD screens enhanced treatment such as Anti-Reflection surface treatment and optical bonding solution. IDK-1105 series supports 4-wire resistive touch with low power consumption at the maximum of 2.1 Watt. IDK-1105 series is ideal for embedded applications which customers have maximum flexibility for mechanical design.
Highlights
- Enjoy vibrant visuals and responsive interaction with the advanced vga, led touchscreen monitor LED touchscreen
- VGA touchscreen provides VGA resolution up to 640 x 480 pixels for basic display needs and legacy system compatibility
- 4-wire Resistive technology measures voltage changes between top and bottom sheets to accurately determine touch location
- LED backlight technology reduces power use and hazardous materials for eco-friendly performance
- View content easily in bright environments with 500 Nit brightness for uninterrupted touch control
- LED Touchscreen Monitor features durable 3H glass hardness that resists scratches, dust, and moisture for long-lasting touchscreen protection
Specifications
| Aspect Ratio | 4:3 |
|---|---|
| Product Type | LED Touchscreen Monitor |
| Manufacturer Part Number | IDK-1105R-50VGB1 |
| Packaged Quantity | 1 |
| Response Time | 50 ms |
| Touchscreen Type | 4-wire Resistive |
| Weight (Approximate) | 8.11 oz |
| Brightness | 500 Nit |
| Color Supported | 262k |
| Features | Wide Viewing Angle, Anti-reflective |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IDK-1105R-50VGB1 |
| Product Name | IDK-1105 5.7" VGA Industrial Display kit with Touch Solution and LVDS Interface |
| Product Series | IDK-1105 |
| Viewable Screen Size | 5.7" |
| Maximum Resolution | 640 x 480 |
| Brand Name | Advantech |
| Screen Mode | VGA |
| Height | 3.9" |
| Width | 5" |
| Depth | 0.4" |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 170° |
| USB | Yes |
| Backlight Technology | LED |
| Native Contrast Ratio | 1,200:1 |
| Panel Technology | In-plane Switching (IPS) Black Technology |
| Screen Size Class | 6" |
| Glass Hardness | 3H |
| Operating Temperature Range | -4°F (-20°C) to 158°F (70°C) |
| Operating Humidity Range | 5% to 90% (Non-condensing) |
