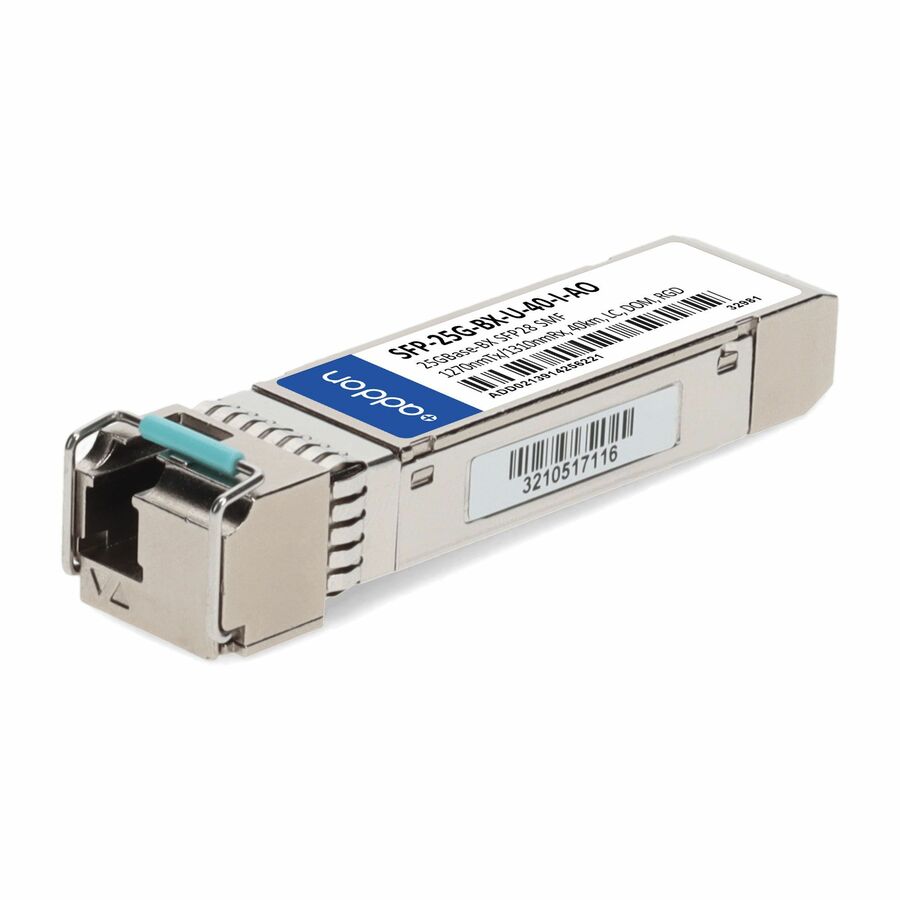

AddOn Cisco® SFP-25G-BX-U-40-I Compatible TAA 25GBase-BX SFP28 Transceiver (SMF, 1270nmTx/1310nmRx, 40km, LC, DOM, -40 to 85C)
For Data Networking, Optical Network - LC 25GBase-BX Network - Optical Fiber - 9/125 µm - 1270 nm, 1310 nm Wavelength - Single-mode - 25 Gigabit Ethernet - 25GBase-BX - 25 Gbit/s - 40 km Maximum Distance - Hot-swappable - 1 - TAA Compliant
- SKU
- SFP-25G-BX-U-40-I-AO
- Category
- Modules
MSRP$1,500.00
$854.00
Save 43%Back ordered — ships when restocked.
Genuine AddOn through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SFP-25G-BX-U-40-I-AO
- Category
- Modules
Overview
This Cisco SFP-25G-BX-U-40-I compatible SFP28 transceiver provides 25GBase-BX throughput up to 40km over single-mode fiber (SMF) using a wavelength of 1270nmTx/1310nmRx via an LC connector. This bidirectional unit must be used with another transceiver or network appliance of complementing wavelengths. It can operate at temperatures between -40 and 85C. It is guaranteed to be 100% compatible with the equivalent Cisco transceiver. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Highlights
- Electrical interface specifications per SFF-8431
- Management interface specifications per SFF-8432 and SFF-8472
- SFP28 MSA package with Single LC receptacle
- DFB Laser, APD photo-detector
- Up to 25.78G bi-directional data links
- Single +3.3V power supply
- Class 1 laser safety certified
- Operating case temperature: -40o C to +85o C
- Up to 40km on 9/125µm SMF
- RoHS Compliant
Specifications
| Application/Usage | Data Networking, Optical Network |
|---|---|
| Product Type | SFP28 |
| Compatibility | MSA Compliant |
| Manufacturer Part Number | SFP-25G-BX-U-40-I-AO |
| Maximum Distance Supported | 40 km |
| Packaged Quantity | 1 |
| Interfaces/Ports Details | LC 25GBase-BX Network |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 0.20 lb |
| Connector Type | LC |
| Features | Digital Optical Monitoring (DOM), Bi-Directional (BiDi) |
| Form Factor | Hot-swappable |
| Manufacturer | AddOn |
| Product Name | Cisco SFP28 Module |
| Network Technology | 25GBase-BX |
| Brand Name | AddOn |
| Country of Origin | United States/United Kingdom |
| Height | 0.4" |
| Width | 0.6" |
| Depth | 2.2" |
| Environmentally Friendly | Yes |
| Maximum Data Transfer Rate | 25 Gbit/s |
| Ethernet Technology | 25 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 1 |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS), Restriction of Hazardous Substances (RoHS) 2 |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Fiber Optic Cable Wavelength | 1270 nm, 1310 nm |
