AddOn MSA and TAA Compliant 25GBase-CU QSFP28 to 1xSFP28 Direct Attach Cable (Passive Twinax, 5m)
AddOn

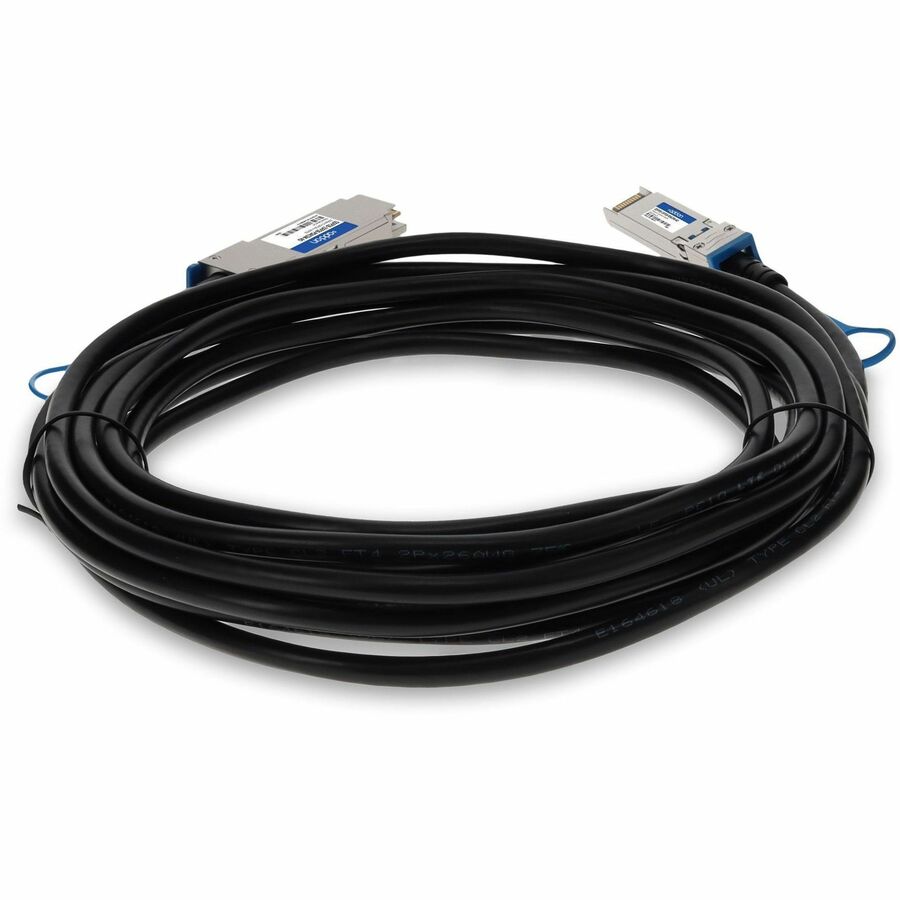

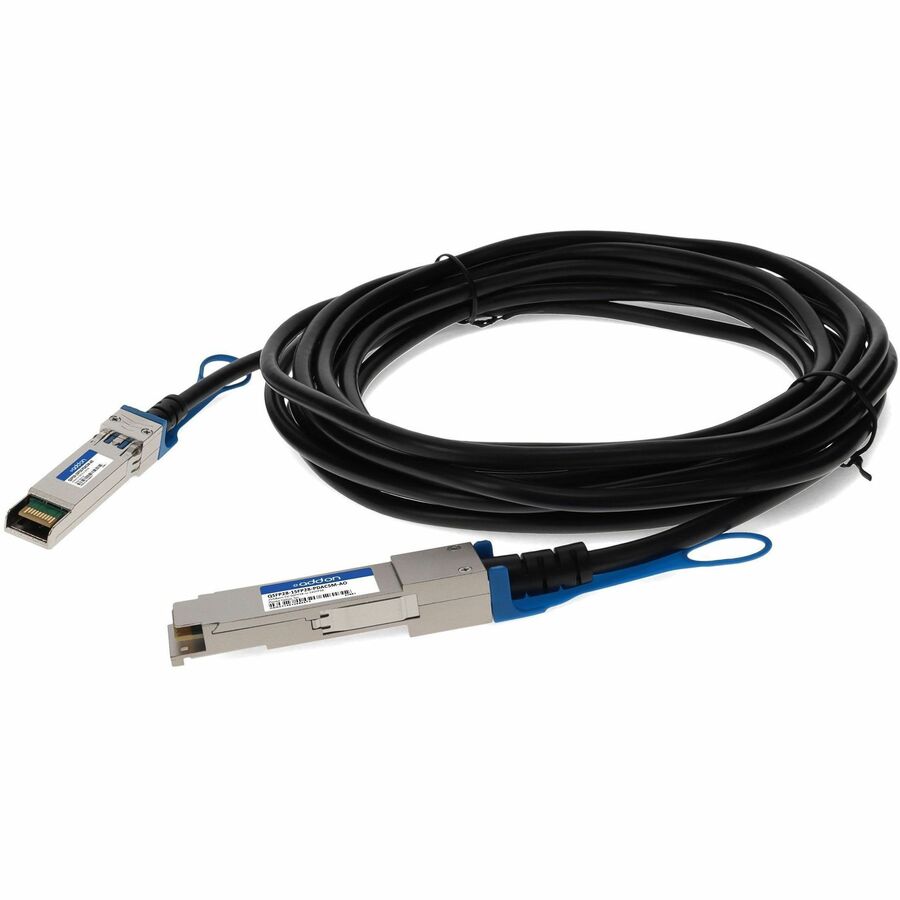

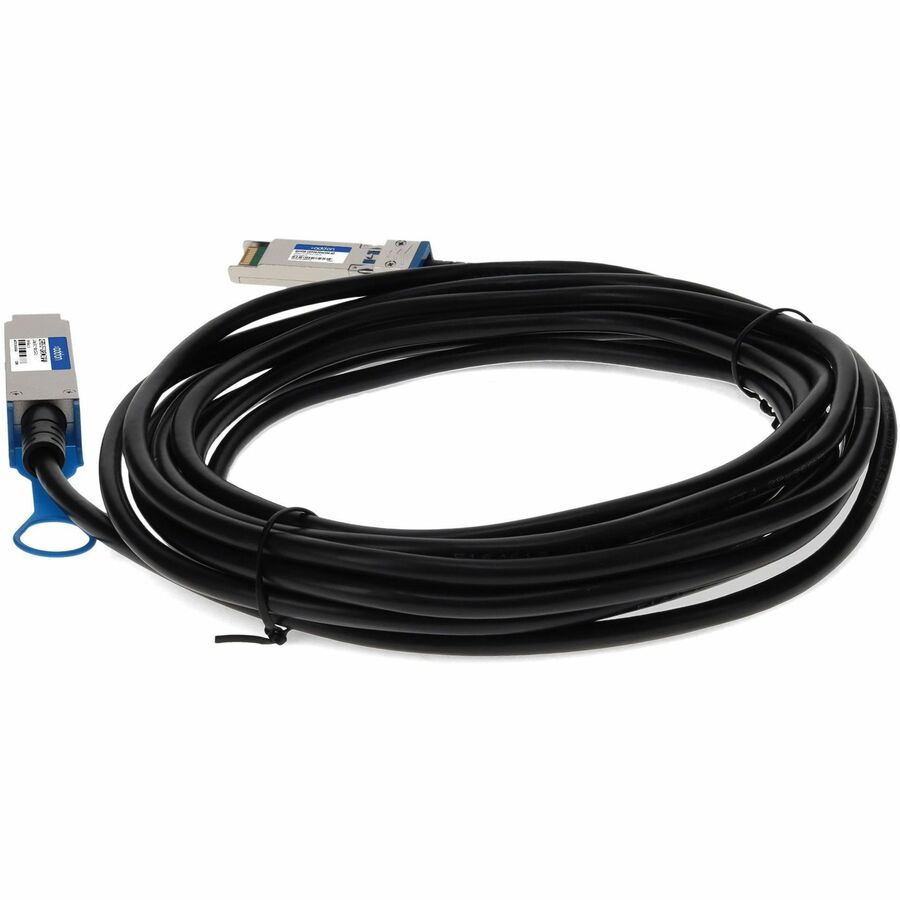

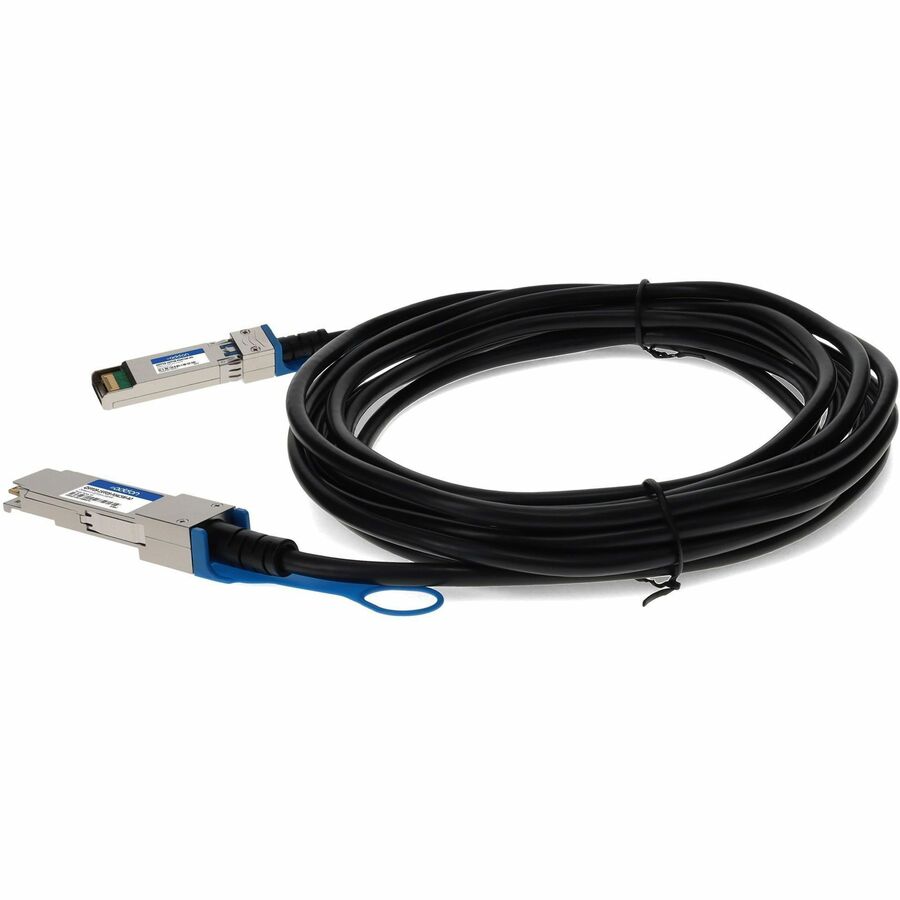

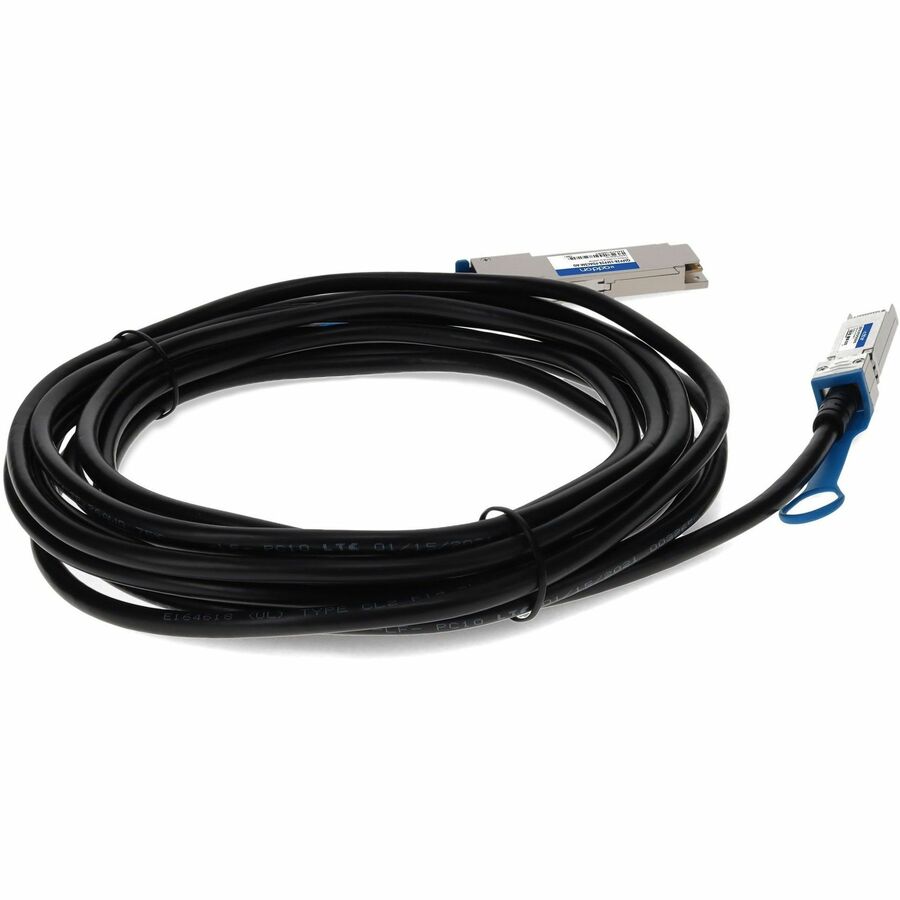

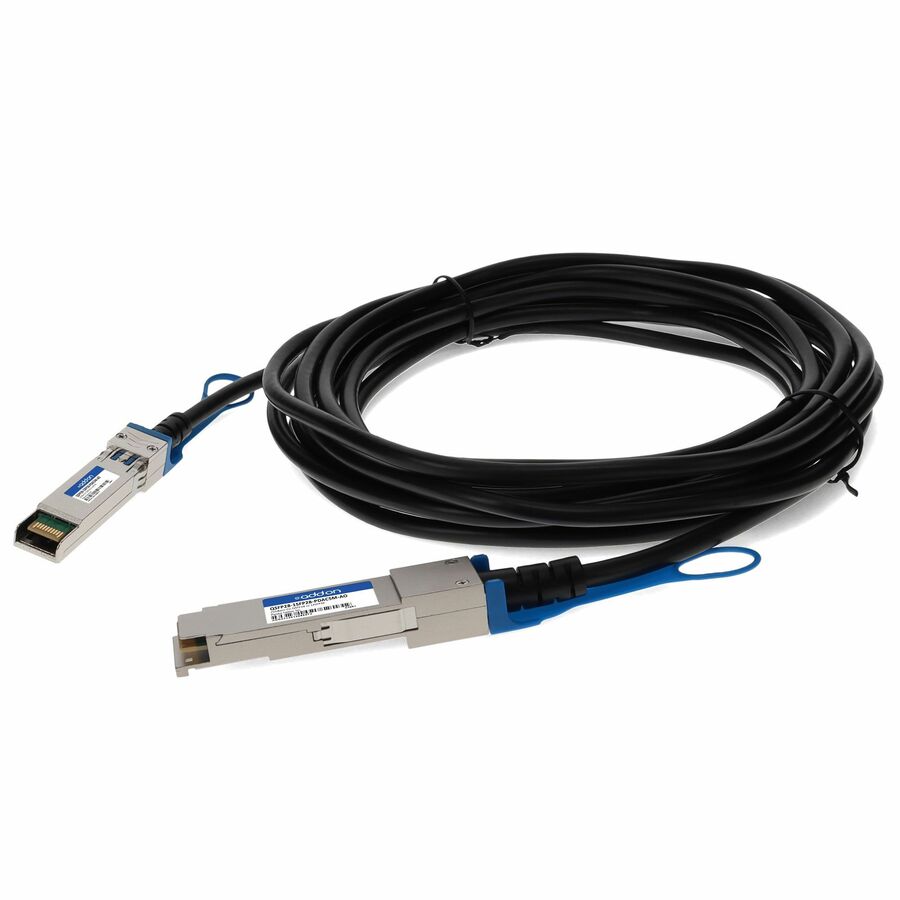

AddOn MSA and TAA Compliant 25GBase-CU QSFP28 to 1xSFP28 Direct Attach Cable (Passive Twinax, 5m)

16.40 ft Twinaxial Network Cable for Network Device - First End: 1 x QSFP28 Network - Male - Second End: 1 x SFP28 Network - Male - 25 Gbit/s - 26 AWG - Black - 1.0 - TAA Compliant

SKU
QSFP28-1SFP28-PDAC5M-AO
Category
Connector Cables

MSRP$390.00

$222.04

Save 43%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine AddOn through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
QSFP28-1SFP28-PDAC5M-AO
Category
Connector Cables

Overview

This is an MSA compliant 25GBase-CU QSFP28 to 1xSFP28 direct attach cable that operates over passive copper with a maximum reach of 5.0m (16.4ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

Highlights

  • QSFP28 End: Compliant with QSFP28 MSA specifications
  • SFP28 End: Compliant with SFP28 MSA specifications
  • 1 independent duplex channels operating at 25Gbps
  • AC coupled inputs and outputs
  • 100 Ohm differential impedance
  • 26AWG to 30AWG Wire Gauge
  • All-metal housing for superior EMI performance
  • Single power supply 3.3V, low power consumption
  • Operating Temperature: 0°C to 70°C
  • ROHS Complian

Specifications

Cable Length16.40 ft
Product TypeNetwork Cable
Data Transfer Rate25 Gbit/s
Device SupportedNetwork Device
Manufacturer Part NumberQSFP28-1SFP28-PDAC5M-AO
Packaged Quantity1.0
Limited WarrantyLifetime
FeaturesPassive
ManufacturerAddOn
Product NameTwinaxial Network Cable
Brand NameAddOn
Country of OriginUnited States
Environmentally FriendlyYes
Cable TypeTwinaxial
Connector Type on First EndQSFP28 Network - Male
Connector Type on Second EndSFP28 Network - Male
American Wire Gauge26 AWG
TAA CompliantYes
Product ColorBlack
Color FamilyBlack
Connector on First End Details1 x QSFP28 Network - Male
Connector on Second End Details1 x SFP28 Network - Male
Product MaterialCopper
Connector Gender on First EndMale
Connector Gender on Second EndMale
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Restriction of Hazardous Substances (RoHS) 2
