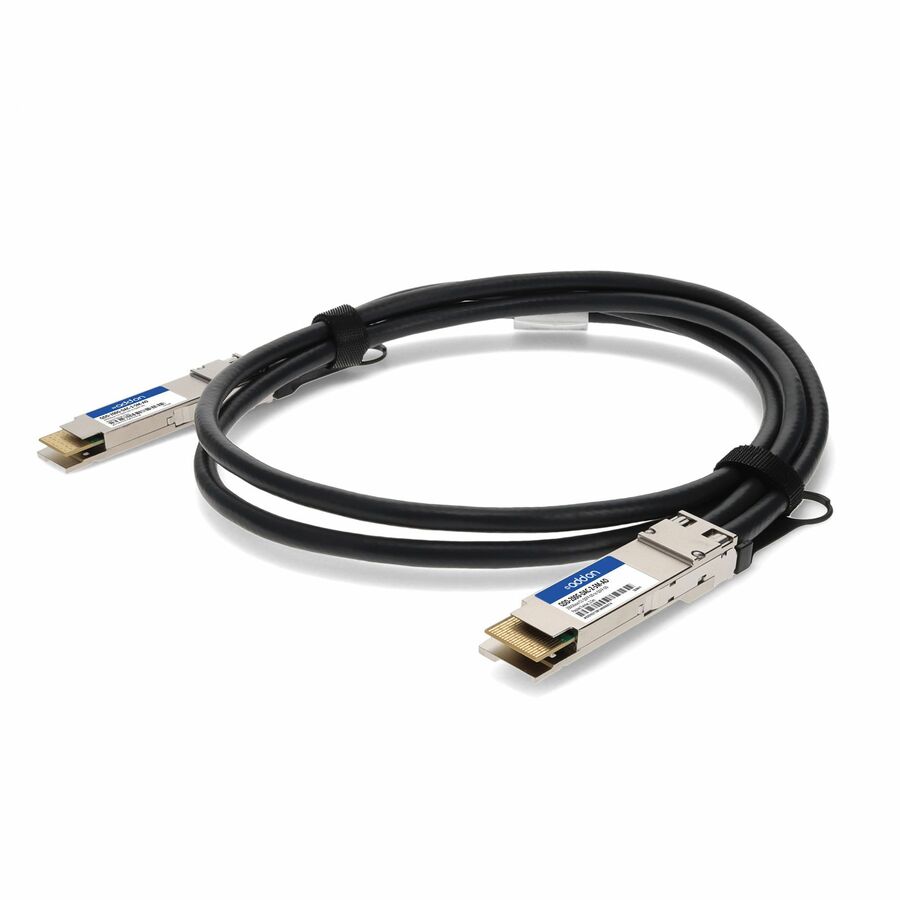

AddOn Juniper Networks® QDD- 200G-DAC-2-5M Compatible TAA Compliant 200GBase-CU QSFP-DD to QSFP-DD NRZ Direct Attach Cable (Passive Twinax, 2.5m)
AddOn

AddOn Juniper Networks® QDD- 200G-DAC-2-5M Compatible TAA Compliant 200GBase-CU QSFP-DD to QSFP-DD NRZ Direct Attach Cable (Passive Twinax, 2.5m)

8.20 ft Twinaxial Network Cable for Network Device - First End: 1 x QSFP-DD Network - Male - Second End: 1 x QSFP-DD Network - Male - 200 Gbit/s - Shielding - VW-1 - 28 AWG - 1.0 - TAA Compliant

SKU
QDD-200G-DAC-2-5M-AO
Category
Connector Cables

MSRP$800.00

$455.47

Save 43%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine AddOn through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
QDD-200G-DAC-2-5M-AO
Category
Connector Cables

Overview

This is a Juniper Networks® QDD- 200G-DAC-2-5M compatible TAA compliant 200GBase-CU QSFP-DD to QSFP-DD NRZ direct attach cable that operates over passive copper with a maximum reach of 2.5m (8.2ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

Highlights

  • Compliant with QSFP-DD MSA Specification Rev 3.4
  • SFF-8679 electrical interface compliant
  • SFF-8636 management interface support
  • Compliant with IEEE802.3Bj, By, IEEE802.3CD Standard
  • Support 25G (PAM4) electrical data rates/channel
  • I2C for EEPROM communication
  • Pull to Release latch design
  • Excellent EMI/EMC performance 360-degree cable shield termination
  • Advantage dual side pre-solder automated assembly technologies
  • Low loss, stronger mechanical features, more flexible

Specifications

Cable Length8.20 ft
Product TypeNetwork Cable
Data Transfer Rate200 Gbit/s
Device SupportedNetwork Device
Jacket TypeVW-1
Manufacturer Part NumberQDD-200G-DAC-2-5M-AO
Packaged Quantity1.0
ShieldingYes
Limited WarrantyLifetime
FeaturesNon-Return-to-Zero (NRZ), Passive
ManufacturerAddOn
Product NameTwinaxial Network Cable
Brand NameAddOn
Country of OriginUnited States
Environmentally FriendlyYes
Cable TypeTwinaxial
Connector Type on First EndQSFP-DD Network - Male
Connector Type on Second EndQSFP-DD Network - Male
American Wire Gauge28 AWG
TAA CompliantYes
Connector on First End Details1 x QSFP-DD Network - Male
Connector on Second End Details1 x QSFP-DD Network - Male
Product MaterialCopper
Connector Gender on First EndMale
Connector Gender on Second EndMale
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Restriction of Hazardous Substances (RoHS) 2
