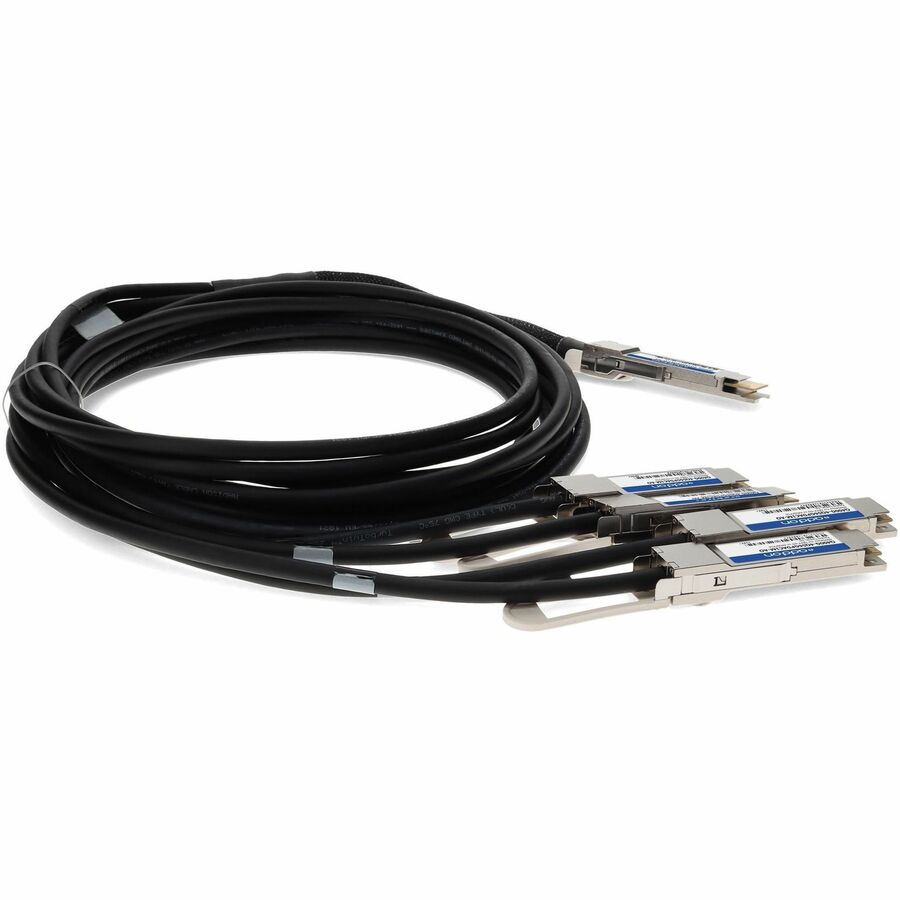

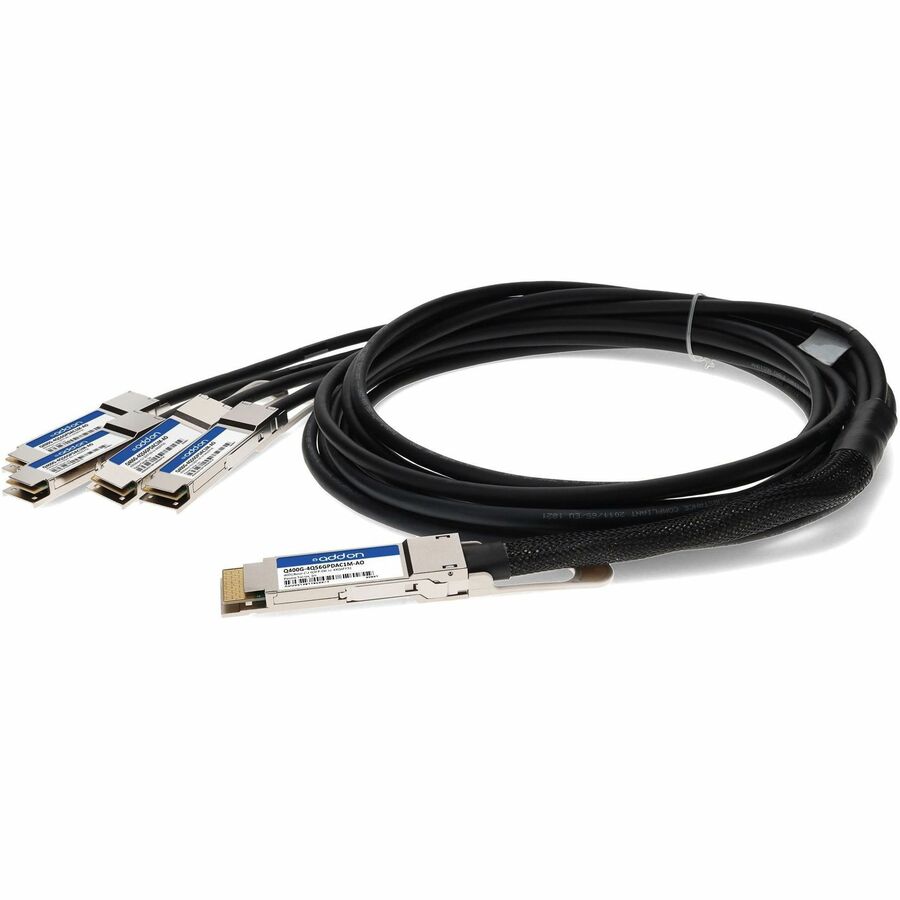

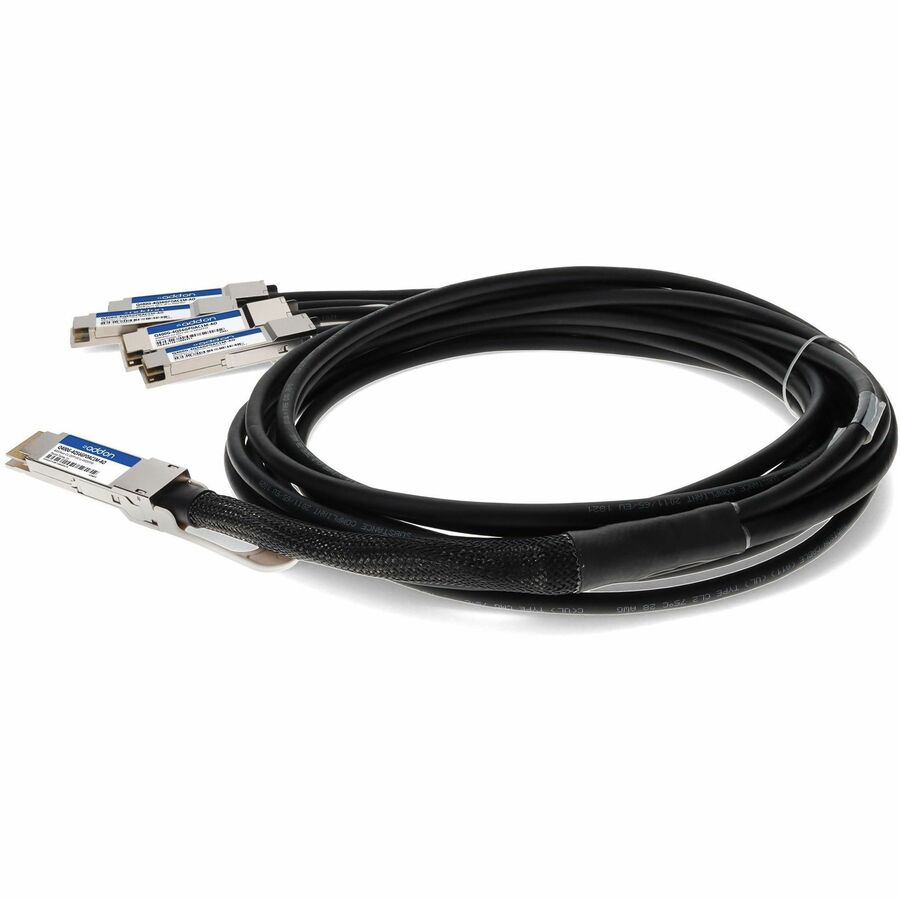

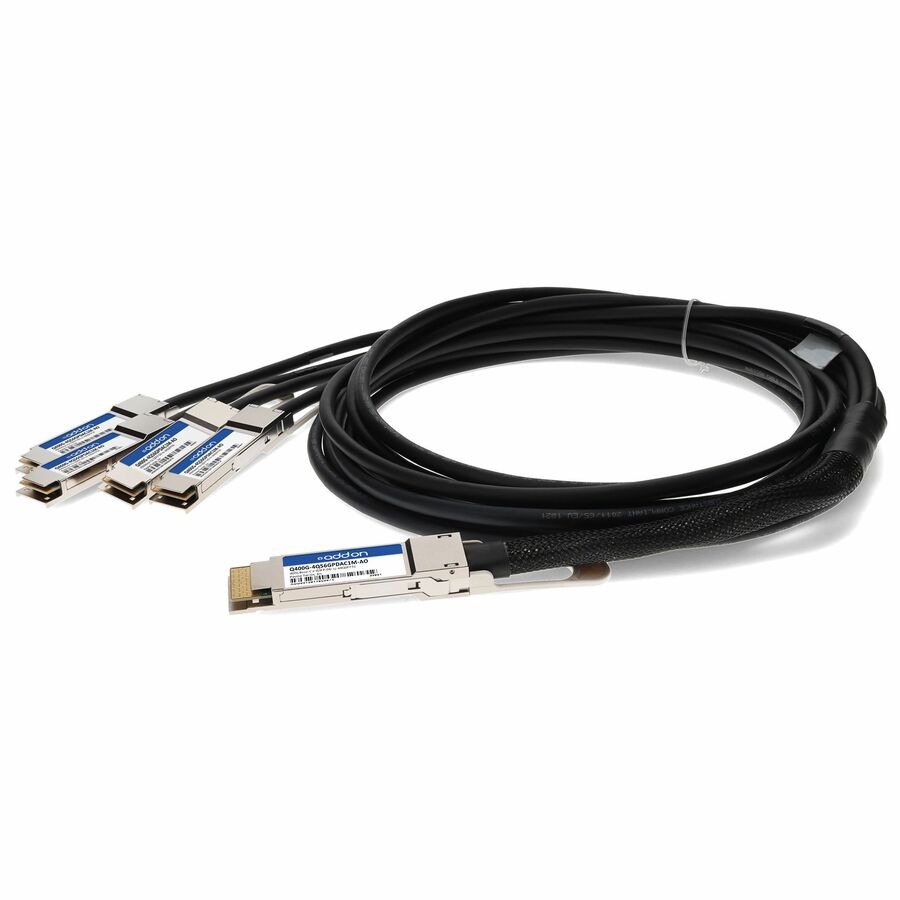

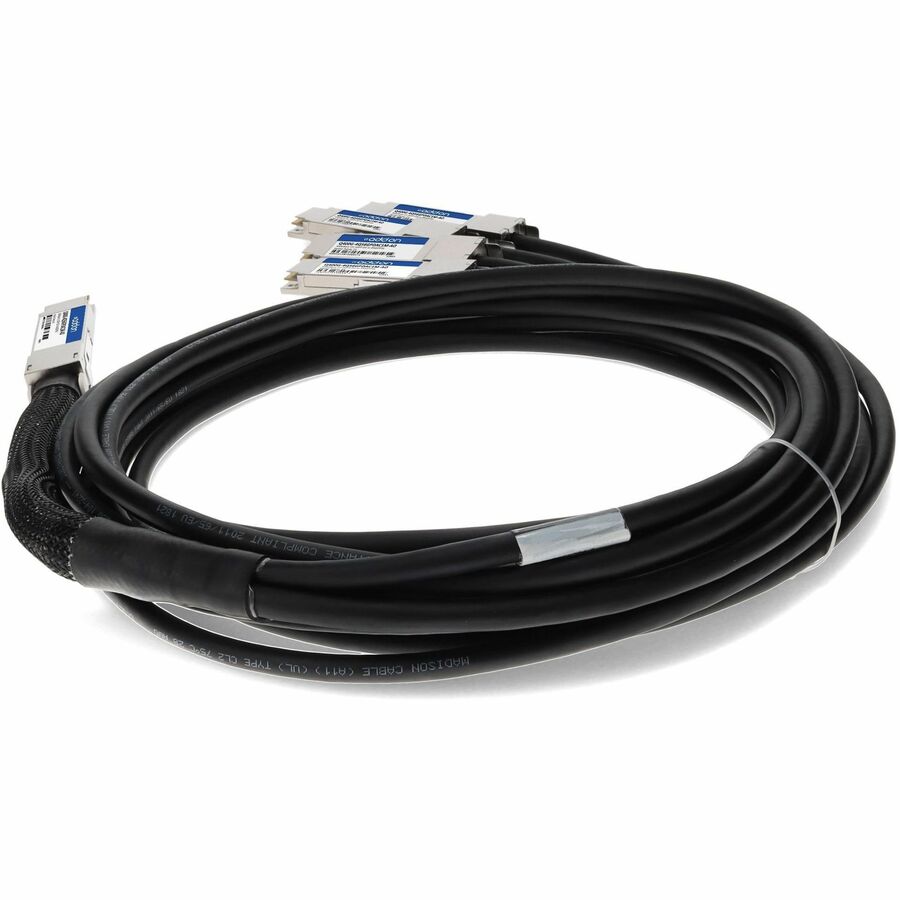

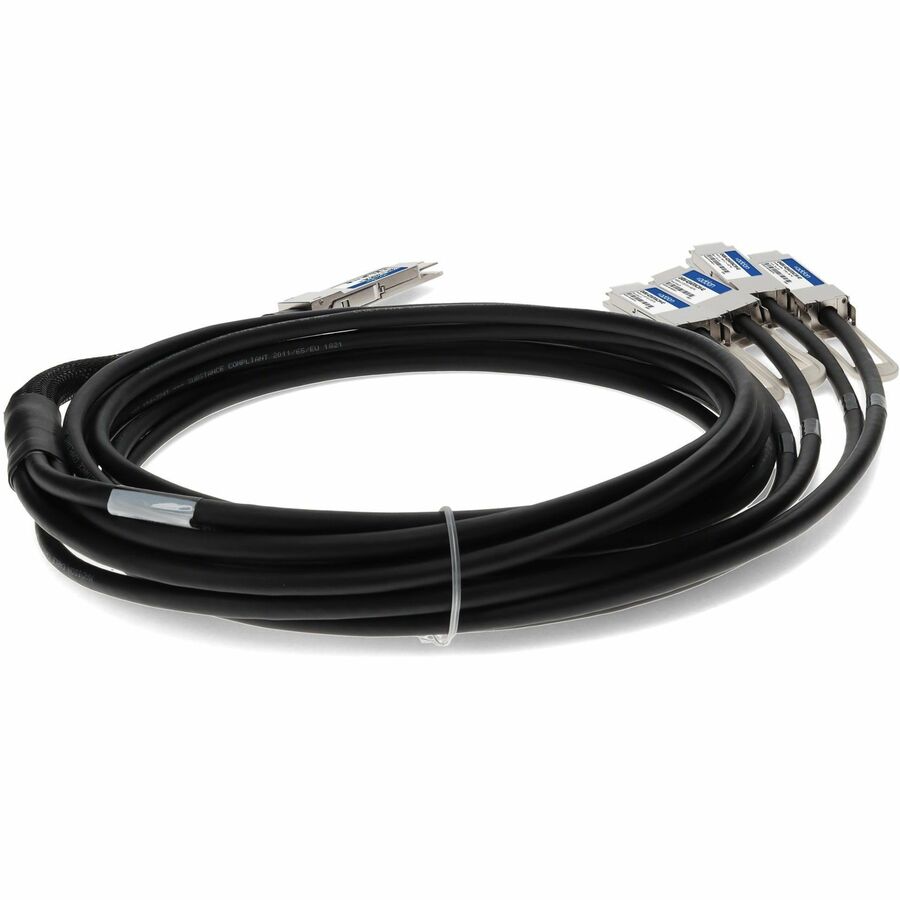

AddOn MSA and TAA Compliant 400GBase-CU QSFP-DD 400G to 4xQSFP56 100G PAM-4 Direct Attach Cable (Passive Twinax, 1m)
3.28 ft Twinaxial Network Cable for Network Device - First End: 1 x QSFP-DD Network - Male - Second End: 4 x QSFP56 Network - Male - 400 Gbit/s - Shielding - VW-1 - 32 AWG - 1 - TAA Compliant
- SKU
- Q400G-4Q56GPDAC1M-AO
- Category
- Connector Cables
MSRP$800.00
$455.47
Save 43%In stock: 3
Genuine AddOn through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- Q400G-4Q56GPDAC1M-AO
- Category
- Connector Cables
Overview
This is an industry standard 400GBase-CU QSFP-DD 400G to 4xQSFP56 100G PAM-4 direct attach cable that operates over passive copper with a maximum reach of 1.0m (3.3ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Highlights
- Compliant with QSFP-DD MSA Specification Rev 3.4
- SFF-8679 electrical interface compliant
- SFF-8636 management interface support
- Compatible with IEEE 802.3bj, IEEE 802.3by, IEEE 802.3cd
- Supports aggregate data rates of 100 and 400Gbps
- I2C for EEPROM communication
- Pull-to-release slide latch design
- 28AWG through 32AWG cable
- Excellent EMI/EMC performance 360-degree cable shield termination
- Advantage dual side pre-solder automated assembly technologies
Specifications
| Application/Usage | Industrial |
|---|---|
| Cable Length | 3.28 ft |
| Product Type | Network Cable |
| Data Transfer Rate | 400 Gbit/s |
| Device Supported | Network Device |
| Jacket Type | VW-1 |
| Manufacturer Part Number | Q400G-4Q56GPDAC1M-AO |
| Packaged Quantity | 1 |
| Shielding | Yes |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 0.30 lb |
| Features | Passive |
| Manufacturer | AddOn |
| Product Name | Twinaxial Network Cable |
| Brand Name | AddOn |
| Country of Origin | United States/United Kingdom |
| Environmentally Friendly | Yes |
| Cable Type | Twinaxial |
| Connector Type on First End | QSFP-DD Network - Male |
| Connector Type on Second End | QSFP56 Network - Male |
| American Wire Gauge | 32 AWG |
| Jacket Material | Polyvinyl Chloride (PVC) |
| TAA Compliant | Yes |
| Connector on First End Details | 1 x QSFP-DD Network - Male |
| Connector on Second End Details | 4 x QSFP56 Network - Male |
| Product Material | Copper |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
