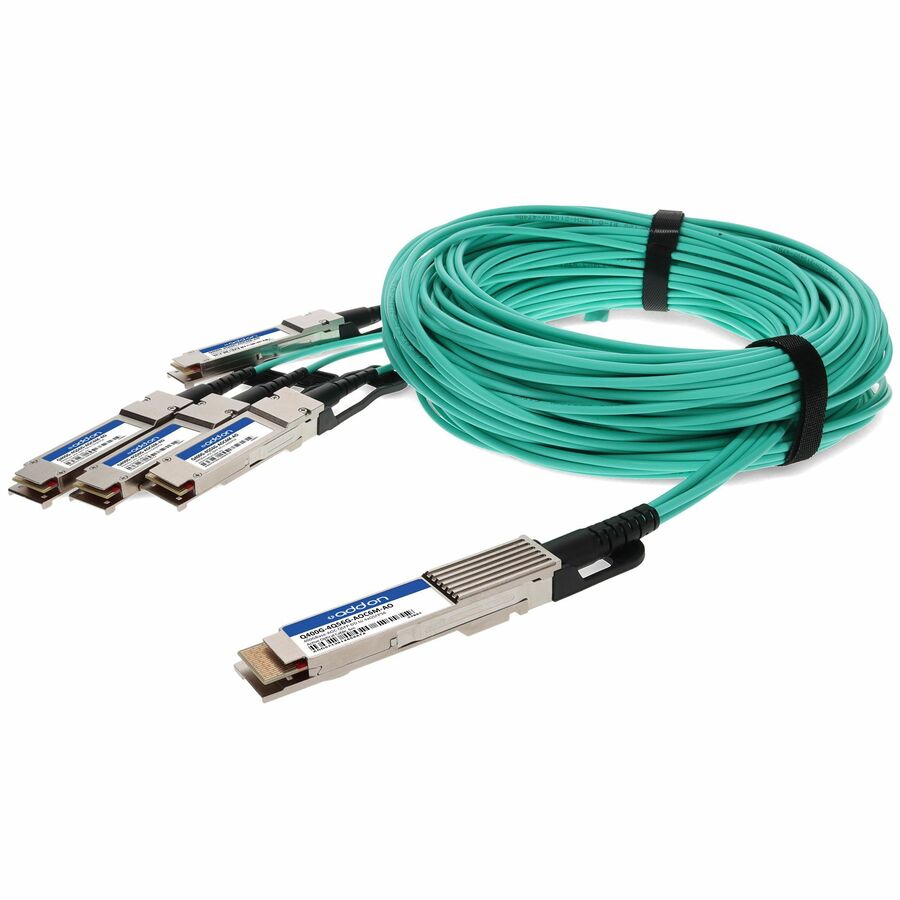

AddOn MSA and TAA Compliant 400GBase-AOC QSFP-DD to 4xQSFP56 PAM-4 Active Optical Cable (850nm, MMF, 6m) CMIS 3.0
AddOn

AddOn MSA and TAA Compliant 400GBase-AOC QSFP-DD to 4xQSFP56 PAM-4 Active Optical Cable (850nm, MMF, 6m) CMIS 3.0

19.69 ft Fiber Optic Network Cable for Network Device, Transceiver, Server, Switch, Storage Adapter - First End: 1 x QSFP-DD Network - Second End: 4 x QSFP56 Network - 400 Gbit/s - LSZH - Multi-mode - Aqua - 1.0 - TAA Compliant

SKU
Q400G-4Q56G-AOC6M-AO
Category
Connector Cables

MSRP$29,920.00

$17,034.45

Save 43%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine AddOn through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
Q400G-4Q56G-AOC6M-AO
Category
Connector Cables

Overview

This is an MSA and TAA compliant 400GBase-AOC QSFP-DD to 4xQSFP56 active optical cable that operates over multi-mode fiber with a maximum reach of 6.0m (19.7ft). At a wavelength of 850nm, it has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This active optical cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

Highlights

  • Low latency DSP-free electronics-based CDR
  • Multi-data rate up to 56.15 Gb/s per lane
  • PAM4 modulation
  • Single 3.3 V power supply
  • Low power consumption: 7.6W on 400G end,2.3W on 100G end with all CDRs enabled
  • QSFP-DD MSA compliant
  • Commercial operating case temperature range: 0 to 70°C
  • Hot pluggable
  • RoHS/REACH compliant
  • TUV-certified
  • LSZH-rated cable

Specifications

Cable Length19.69 ft
Product TypeNetwork Cable
Data Transfer Rate400 Gbit/s
Device SupportedNetwork Device, Transceiver, Server, Switch, Storage Adapter
Jacket TypeLSZH
Manufacturer Part NumberQ400G-4Q56G-AOC6M-AO
Packaged Quantity1.0
Limited WarrantyLifetime
FeaturesAOC Technology, Lead-free, Bendable, CMIS 3.0
ManufacturerAddOn
Product NameFiber Optic Network Cable
Brand NameAddOn
Environmentally FriendlyYes
Cable TypeFiber Optic
Connector Type on First EndQSFP-DD Network
Connector Type on Second EndQSFP56 Network
Fiber Optic ModeMulti-mode
TAA CompliantYes
Product ColorAqua
Color FamilyGreen
Connector on First End Details1 x QSFP-DD Network
Connector on Second End Details4 x QSFP56 Network
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
