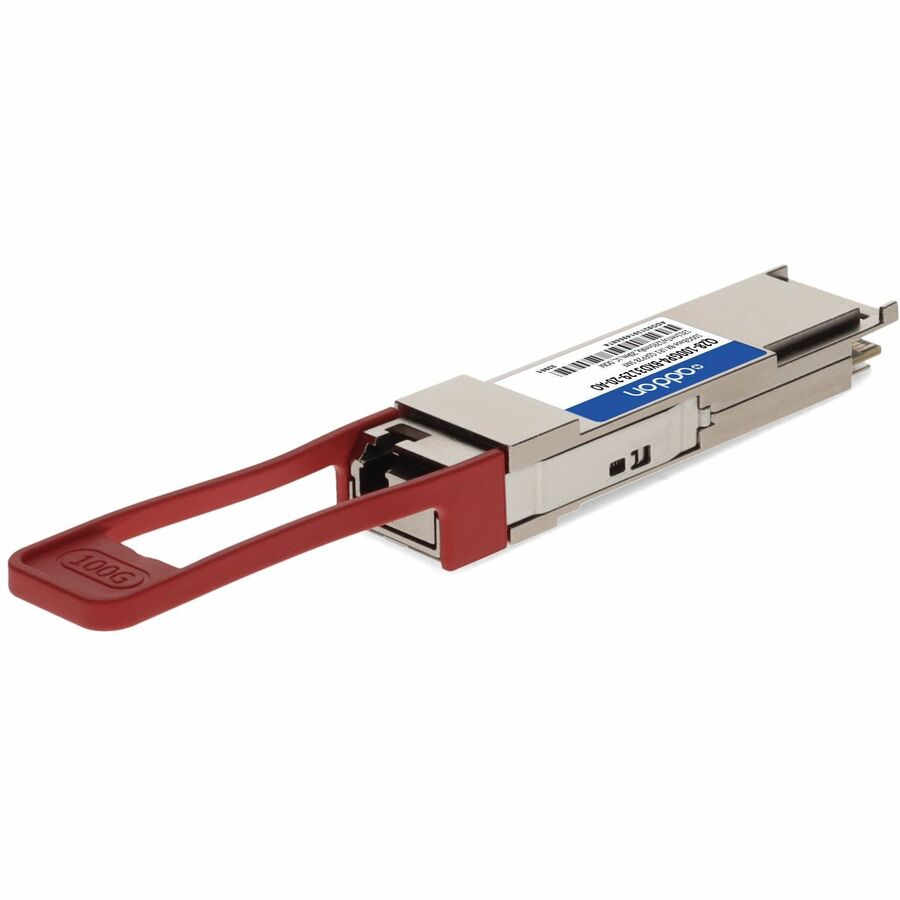

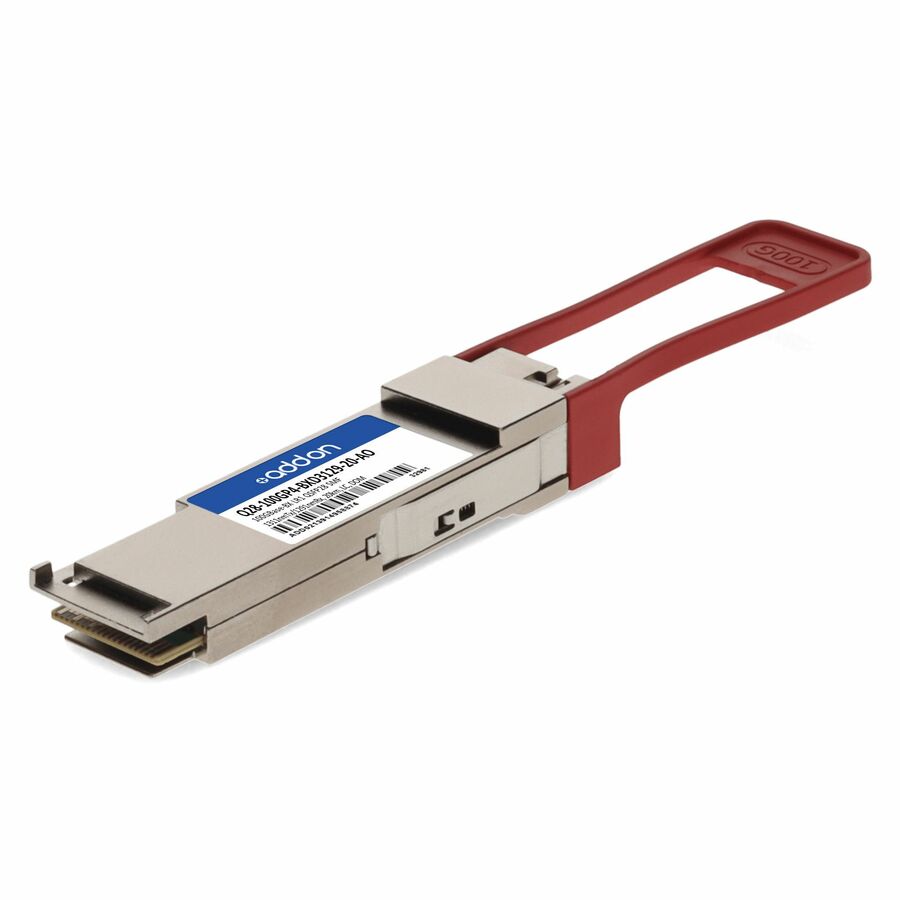

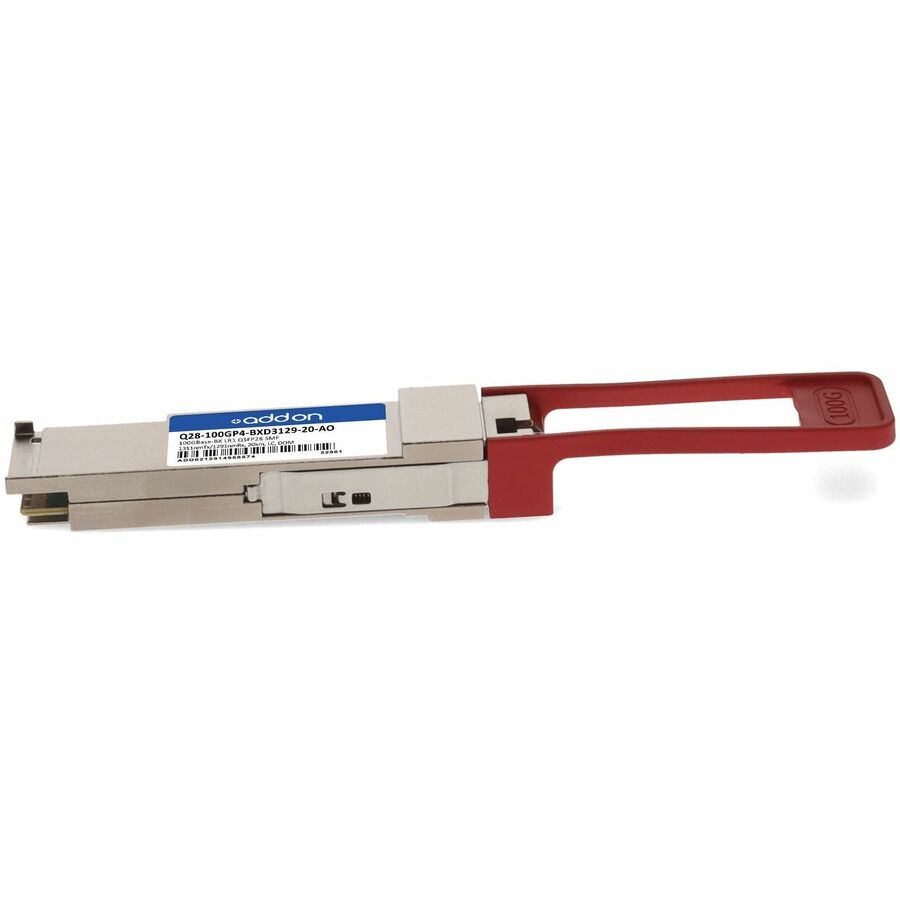

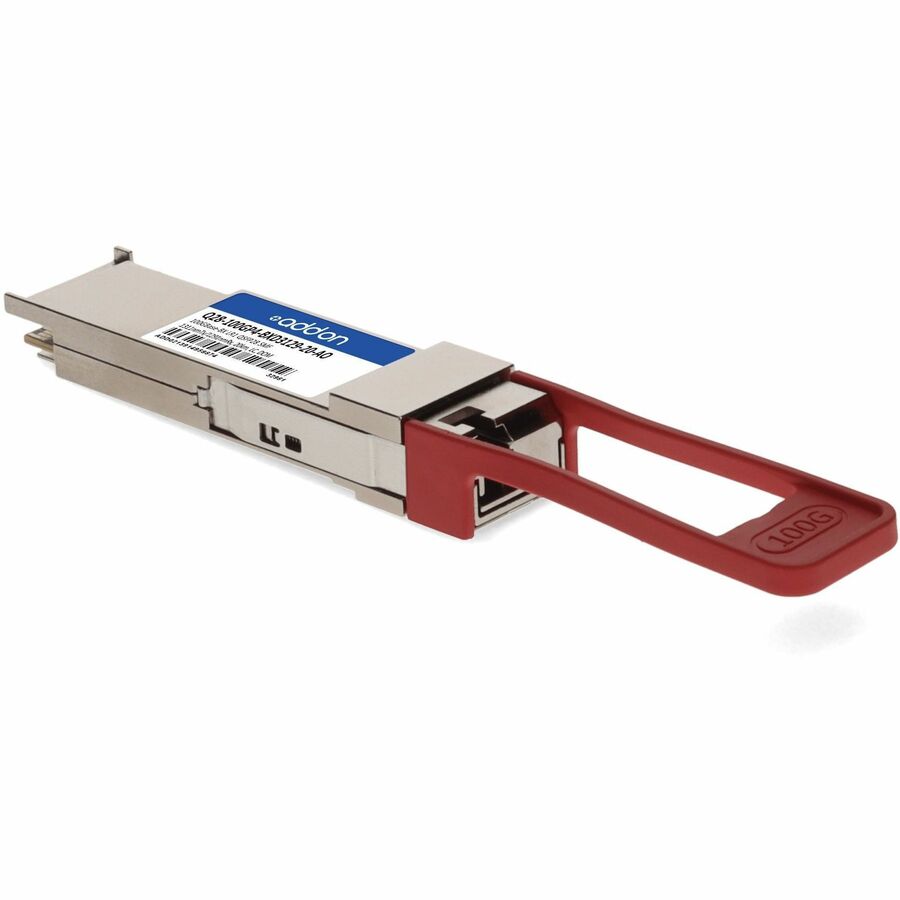

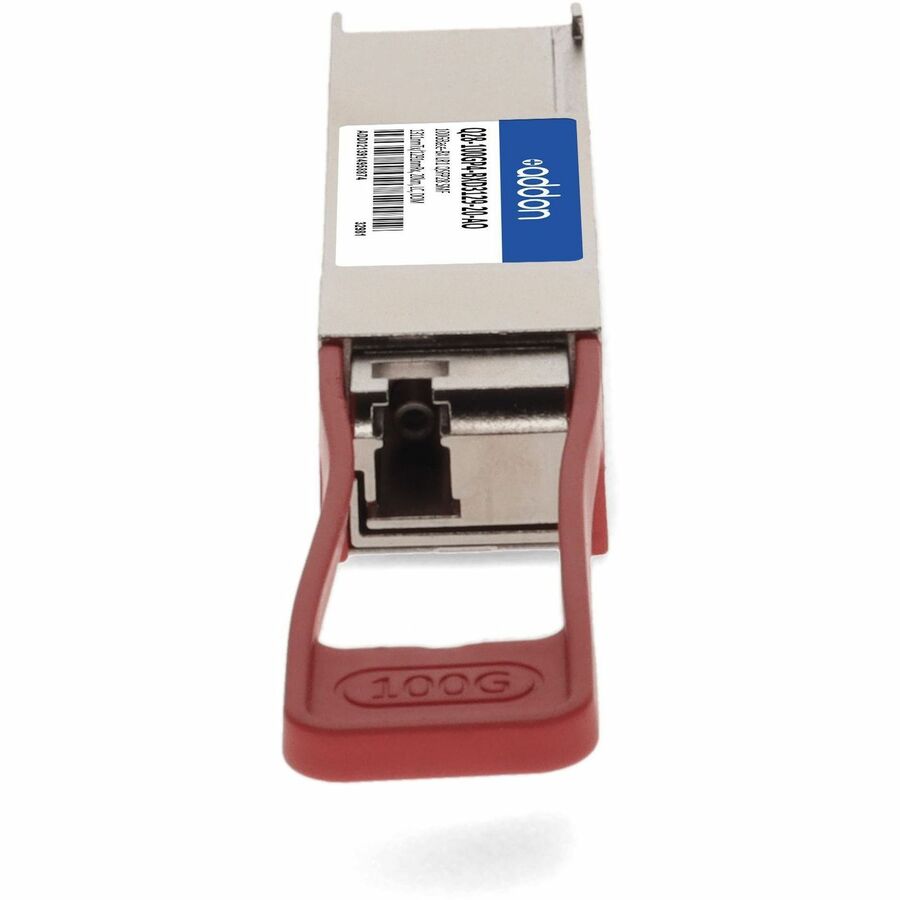

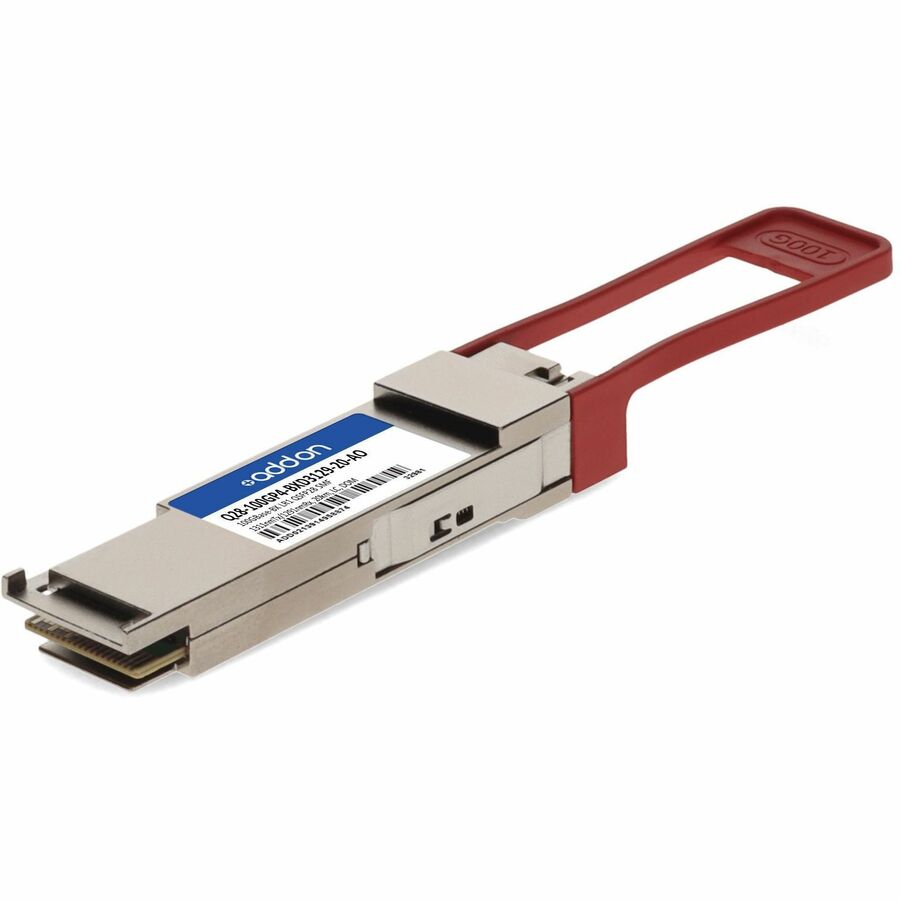

AddOn MSA and TAA 100GBase-BX LR1 PAM4 QSFP28 Transceiver Single Lambda (SMF, 1311nmTx/1291nmRx, 20km, LC, DOM)
For Data Networking, Optical Network - 1 x LC 100GBase-BX Network - Optical Fiber - 1291 nm, 1311 nm Wavelength - Single-mode - 100 Gigabit Ethernet - 100GBase-BX20 km Maximum Distance - 1 - TAA Compliant
- SKU
- Q28-100GP4-BXD3129-20-AO
- Category
- Modules
MSRP$12,000.00
$6,832.00
Save 43%Back ordered — ships when restocked.
Genuine AddOn through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- Q28-100GP4-BXD3129-20-AO
- Category
- Modules
Overview
This MSA compliant QSFP28 transceiver provides 100GBase-BX LR1 throughput up to 20km over single-mode fiber (SMF) PAM4 using a wavelength of 1311nmTx/1291nmRx via an LC connector. This bidirectional unit must be used with another transceiver or network appliance of complementing wavelengths. It can operate at temperatures between 0 and 70C. All of our transceivers are built to comply with Multi-Source Agreement (MSA) standards and are uniquely serialized and tested for data-traffic and application to ensure seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Highlights
- Compliant with QSFP28 MSA
- Supports 100Gbps
- Compliant with SFF-8636 Rev 2.10a
- 4x25G Electrical Interface Compliant with OIF CEI-28G-VSR
- Bidi LC Connectors
- Single 3.3V Power Supply
- Commercial Temperature 0 to 70 Celsius
- Single-mode Fiber
- RoHS Compliant and Lead Free
Specifications
| Application/Usage | Data Networking, Optical Network |
|---|---|
| Product Type | QSFP28 |
| Compatibility | MSA Compliant |
| Manufacturer Part Number | Q28-100GP4-BXD3129-20-AO |
| Maximum Distance Supported | 20 km |
| Packaged Quantity | 1 |
| Interfaces/Ports Details | 1 x LC 100GBase-BX Network |
| Limited Warranty | Lifetime |
| Connector Type | LC |
| Manufacturer | AddOn |
| Product Name | QSFP28 Module |
| Network Technology | 100GBase-BX |
| Brand Name | AddOn |
| Country of Origin | United States/United Kingdom |
| Environmentally Friendly | Yes |
| Ethernet Technology | 100 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 1 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Fiber Optic Cable Wavelength | 1291 nm, 1311 nm |
