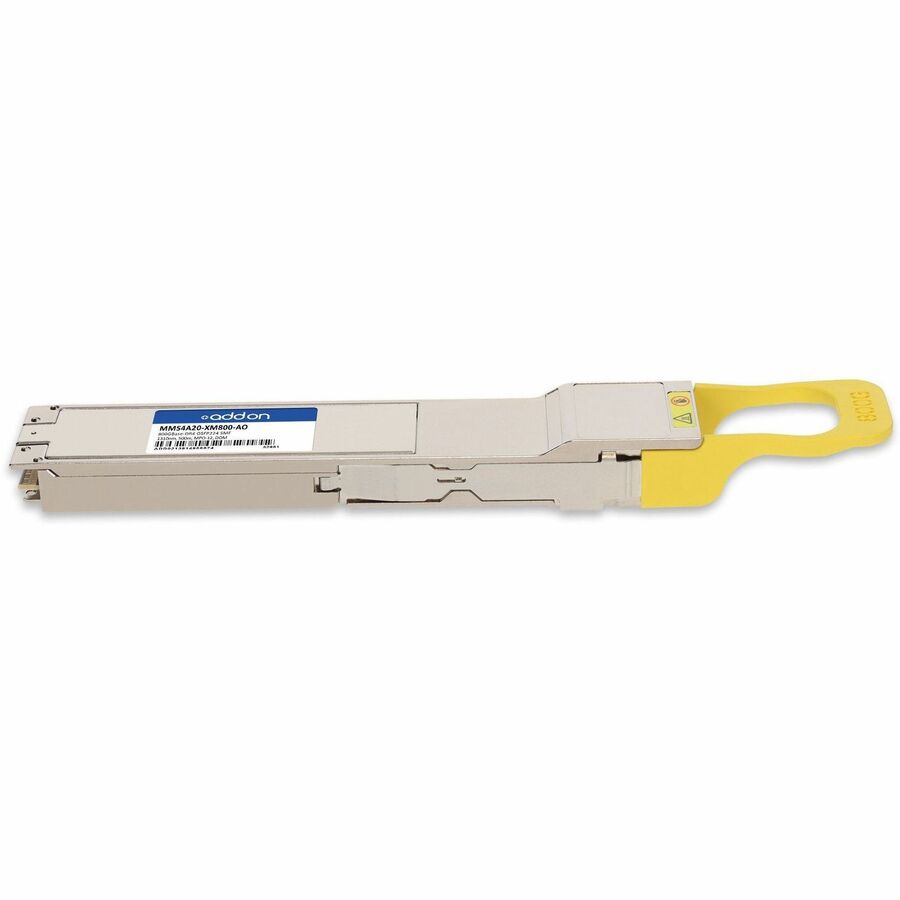

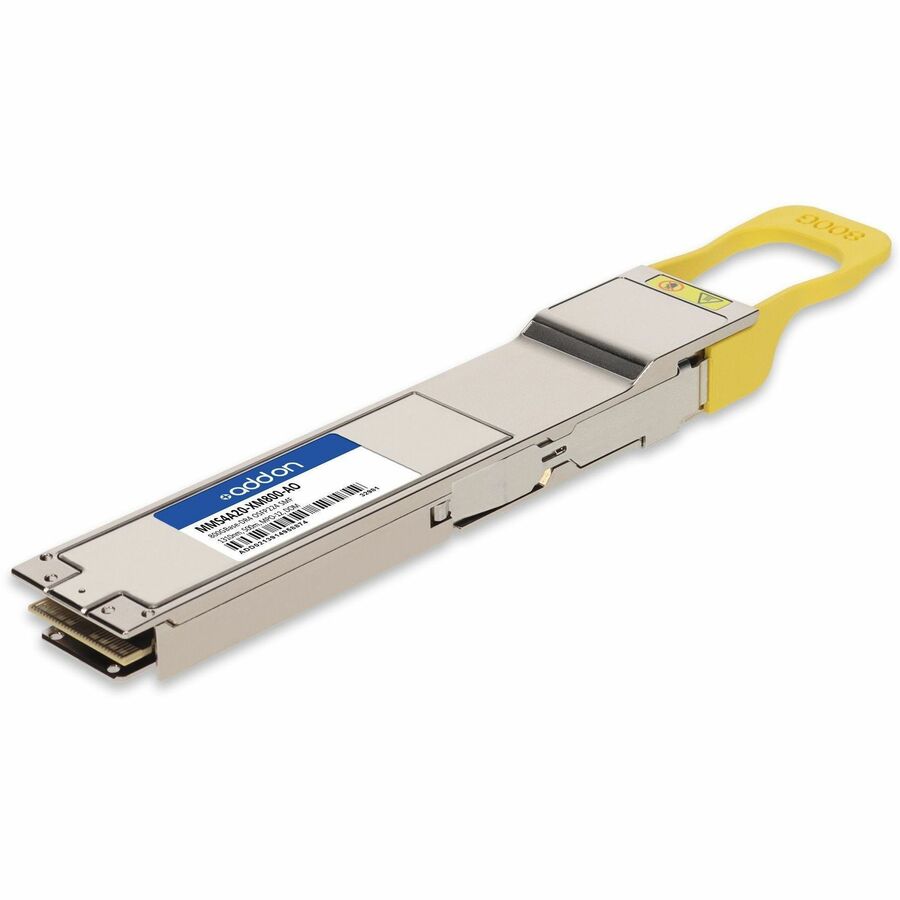

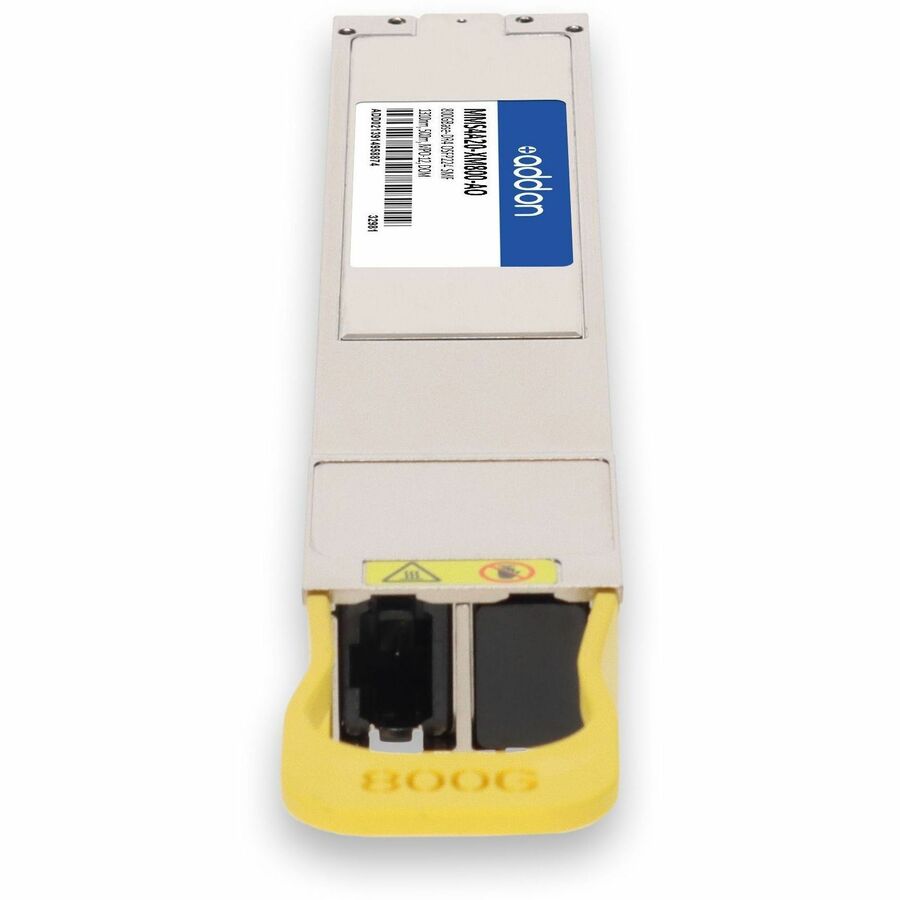

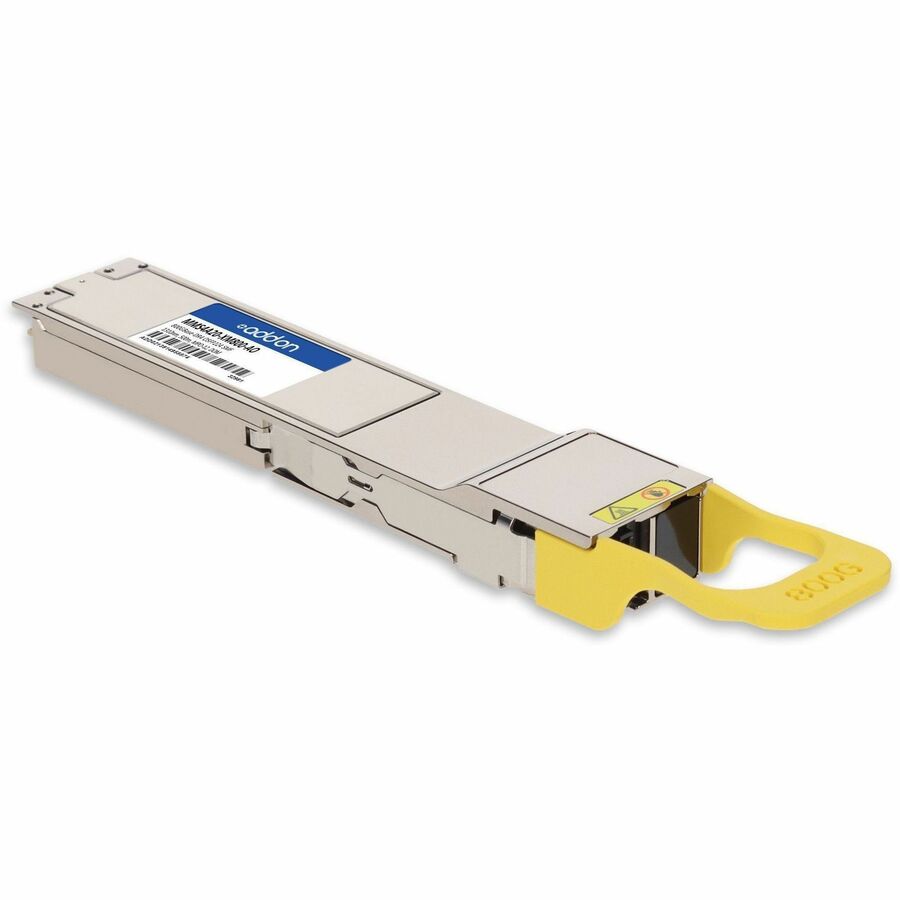

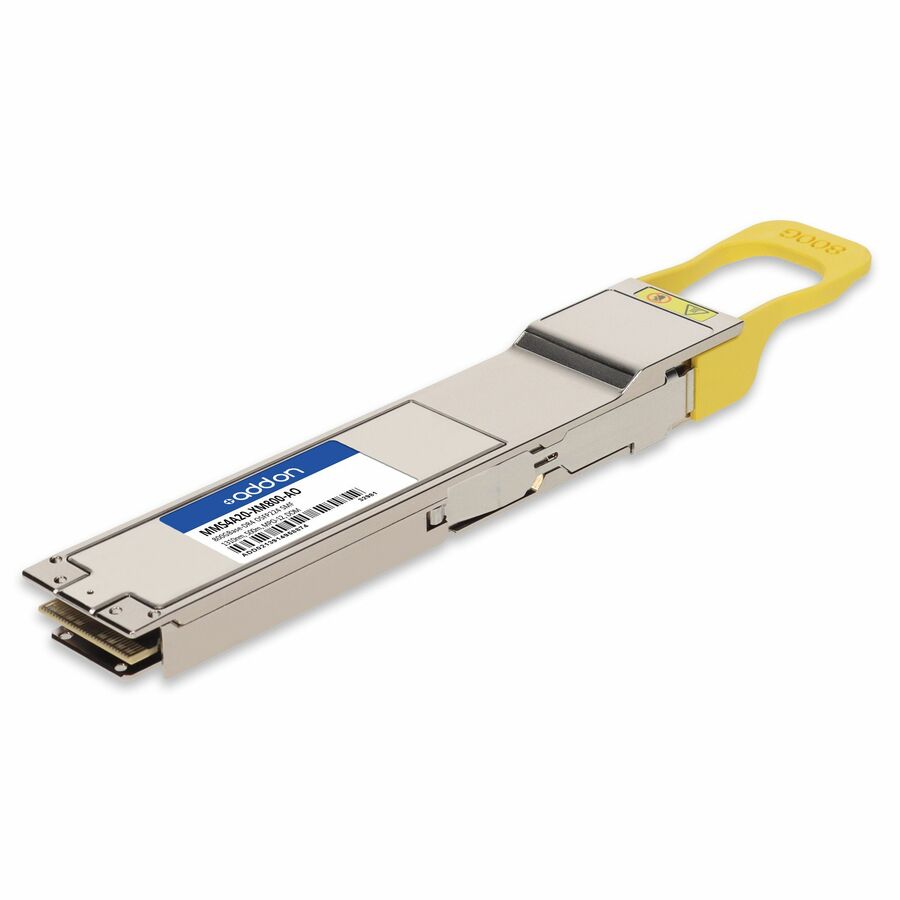

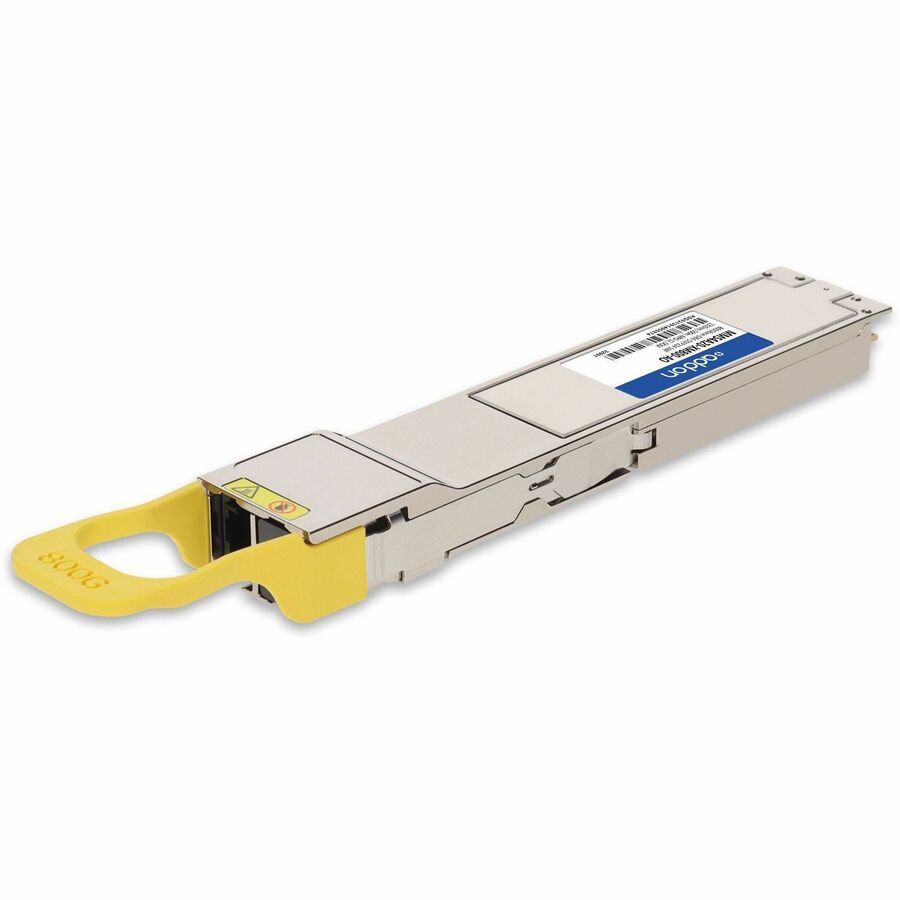

AddOn NVIDIA/Mellanox MMS4A20-XM800 Compatible TAA 800GBase-DR4 OSFP224-RHS Transceiver (SMF, 1310nm, 500m, MPO, DOM, CMIS 5.3)
For Data Networking, Optical Network - 1 x MPO-12 800GBase-DR4 Network - Optical Fiber - 1310 nm Wavelength - Single-mode - 800 Gigabit Ethernet - 800GBase-DR4 - 800 Gbit/s - 0.50 km Maximum Distance - 1 - TAA Compliant
- SKU
- MMS4A20-XM800-AO
- Category
- Modules
MSRP$4,236.00
$2,411.70
Save 43%Back ordered — ships when restocked.
Genuine AddOn through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MMS4A20-XM800-AO
- Category
- Modules
Overview
This Mellanox MMS4A20-XM800 compatible OSFP224 transceiver provides 800GBase-DR4 throughput up to 500m over single-mode fiber (SMF) PAM4 using a wavelength of 1310nm via a 2xMPO connector. It can operate at temperatures between 0 and 70C. All of our transceivers are built to comply with Multi-Source Agreement (MSA) standards and are uniquely serialized and tested for data-traffic and application to ensure seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Highlights
- OSFP-224 module enables compact high-performance deployment, helping align connectivity with space-efficient hardware designs
- 800GBase-DR4 network technology for fast, dependable connectivity with maximum efficiency
- 800 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- For transmitting data at gigabit speed over hundreds of miles with little integrity loss, single-mode fiber optic is an ideal solution
- OSFP-224withdata networkingapplication/usage ensures reliability, maximum efficiency and robust performance
Specifications
| Application/Usage | Data Networking, Optical Network |
|---|---|
| Product Type | OSFP-224 |
| Compatibility | MSA Compliant |
| Manufacturer Part Number | MMS4A20-XM800-AO |
| Maximum Distance Supported | 0.50 km |
| Packaged Quantity | 1 |
| Interfaces/Ports Details | 1 x MPO-12 800GBase-DR4 Network |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 0.20 lb |
| Connector Type | MPO-12 |
| Features | Digital Optical Monitoring (DOM) |
| Manufacturer | AddOn |
| Product Name | Mellanox OSFP-224 Module |
| Network Technology | 800GBase-DR4 |
| Brand Name | Addon |
| Country of Origin | United States/United Kingdom |
| Height | 0.4" |
| Width | 0.8" |
| Depth | 4.9" |
| Maximum Data Transfer Rate | 800 Gbit/s |
| Ethernet Technology | 800 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 1 |
| TAA Compliant | Yes |
| Fiber Optic Cable Wavelength | 1310 nm |
