Mellanox MCP1600-C02AE30L Compatible TAA Compliant 100GBase-CU QSFP28 Direct Attach Cable (Passive Twinax, 2.5m, 30AWG)
AddOn

Mellanox MCP1600-C02AE30L Compatible TAA Compliant 100GBase-CU QSFP28 Direct Attach Cable (Passive Twinax, 2.5m, 30AWG)

8.20 ft Twinaxial Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - 30 AWG - 1.0 - TAA Compliant

SKU
MCP1600-C02AE30L-AO
Category
Connector Cables

MSRP$270.00

$153.72

Save 43%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine AddOn through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
MCP1600-C02AE30L-AO
Category
Connector Cables

Overview

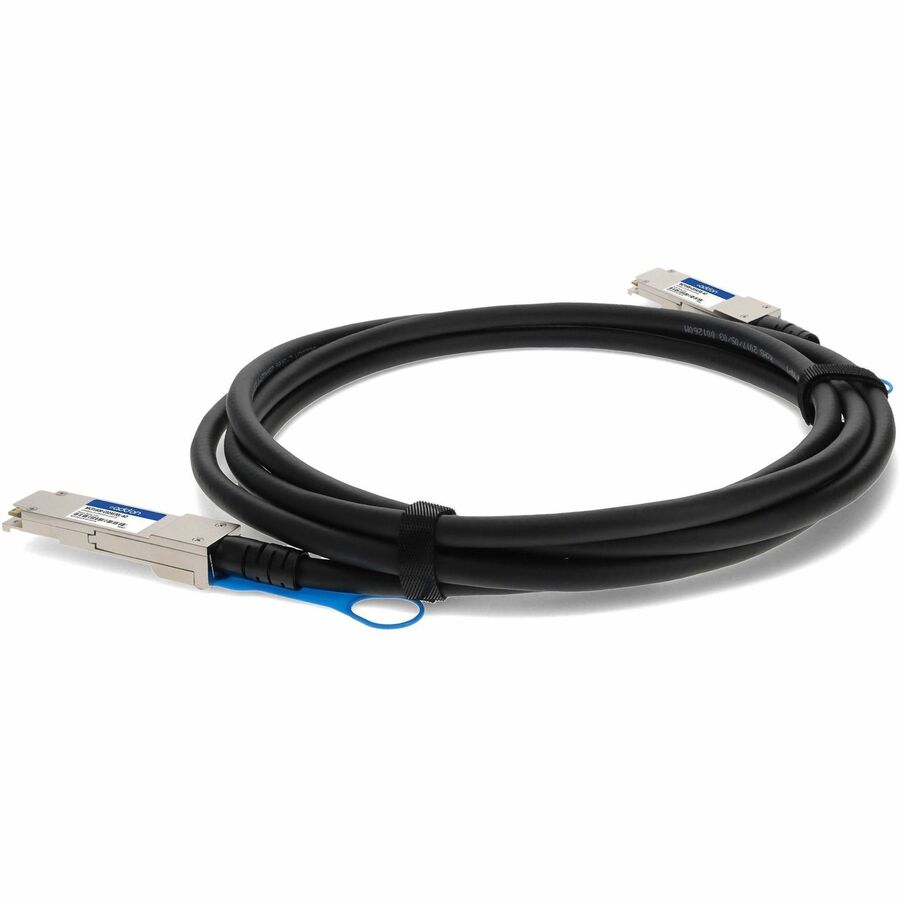

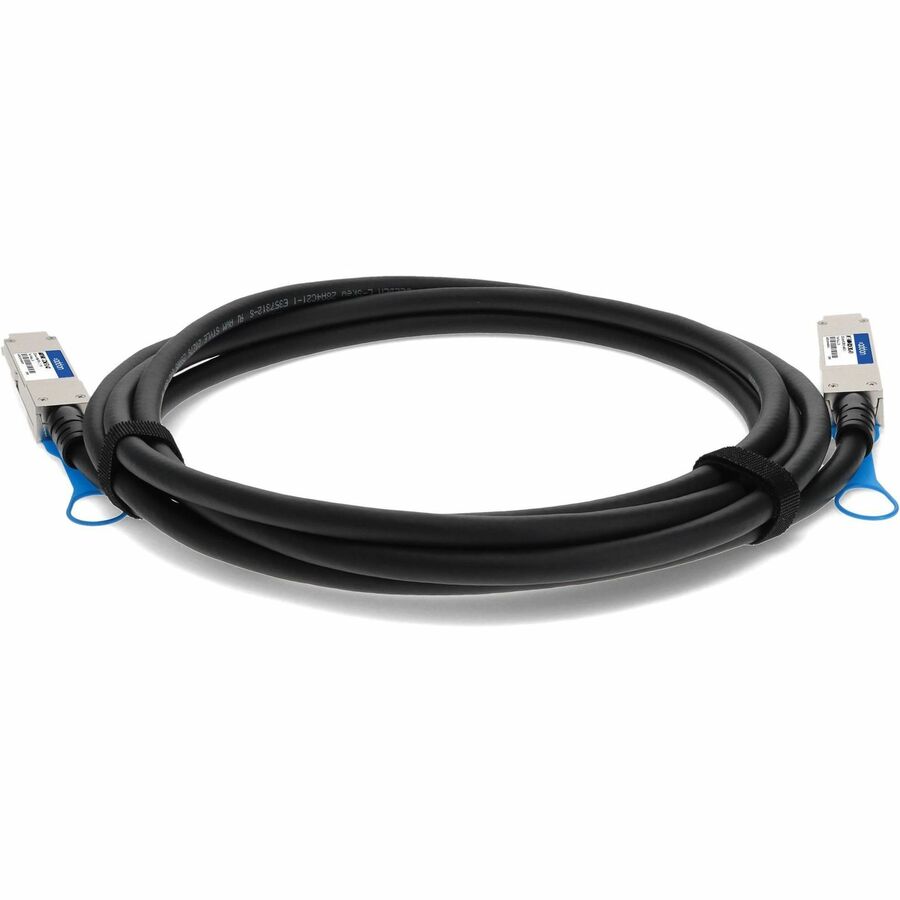

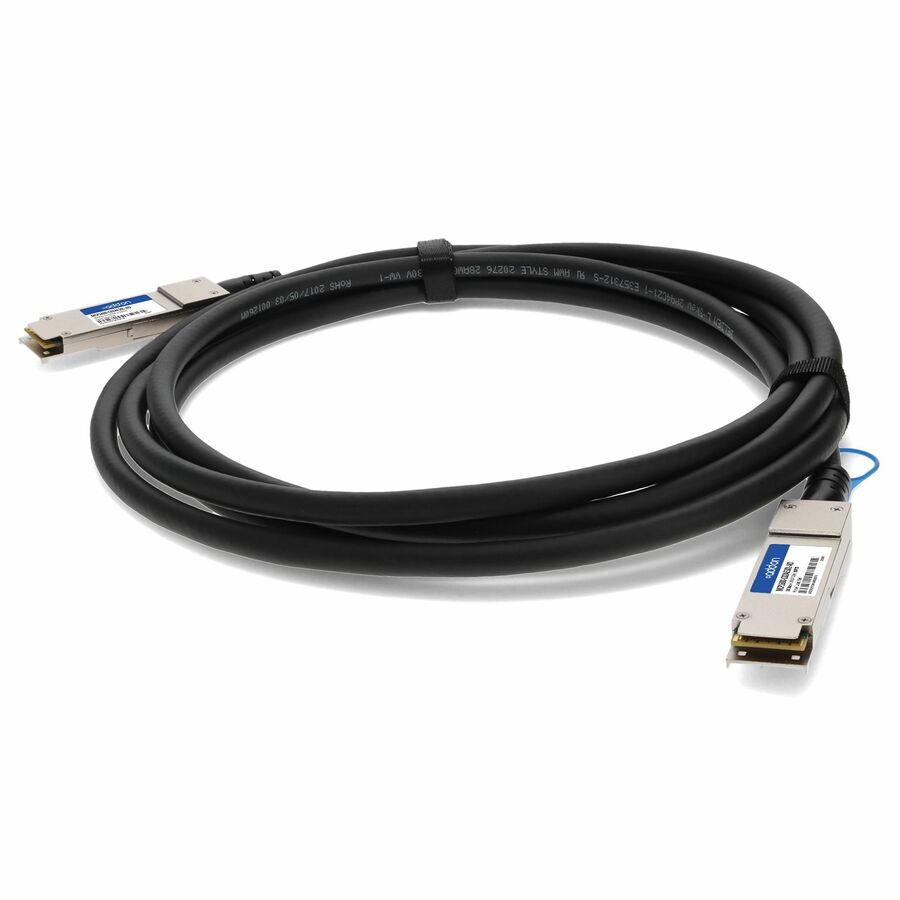

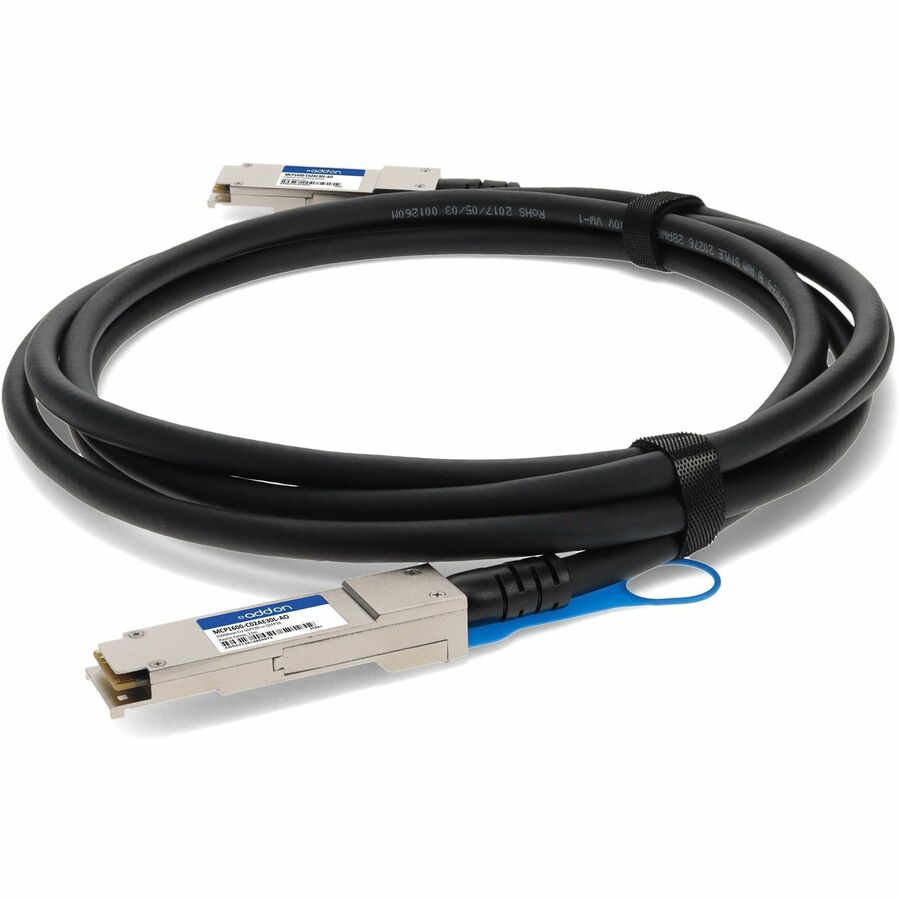

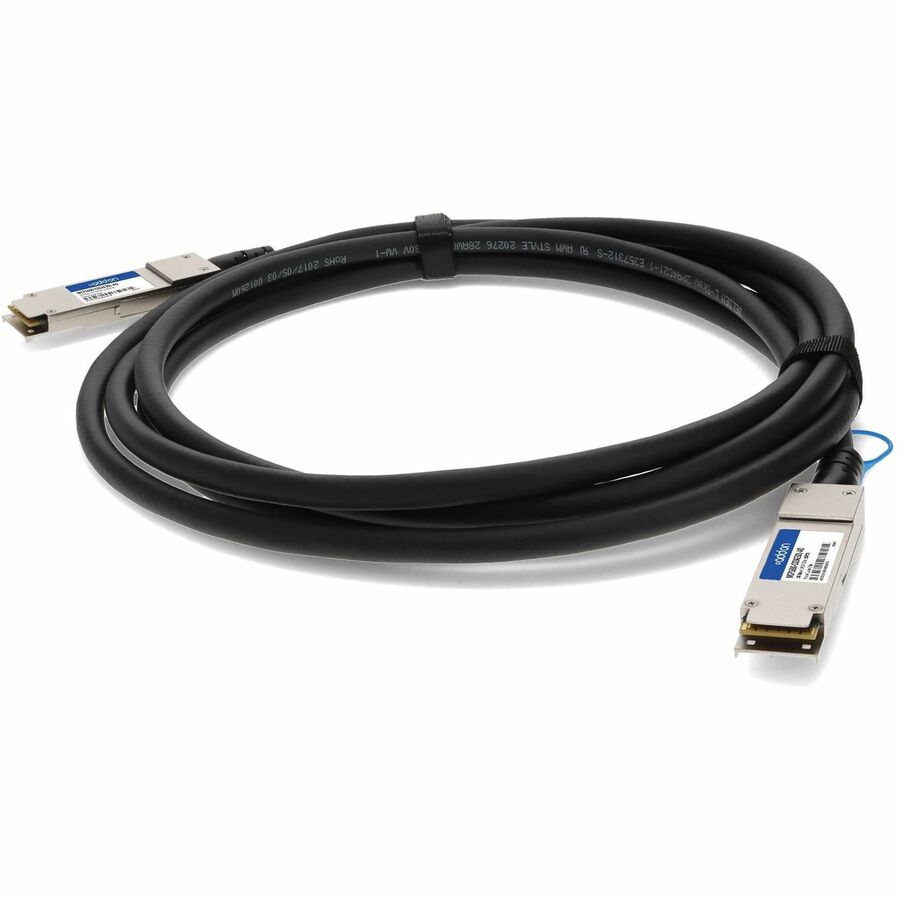

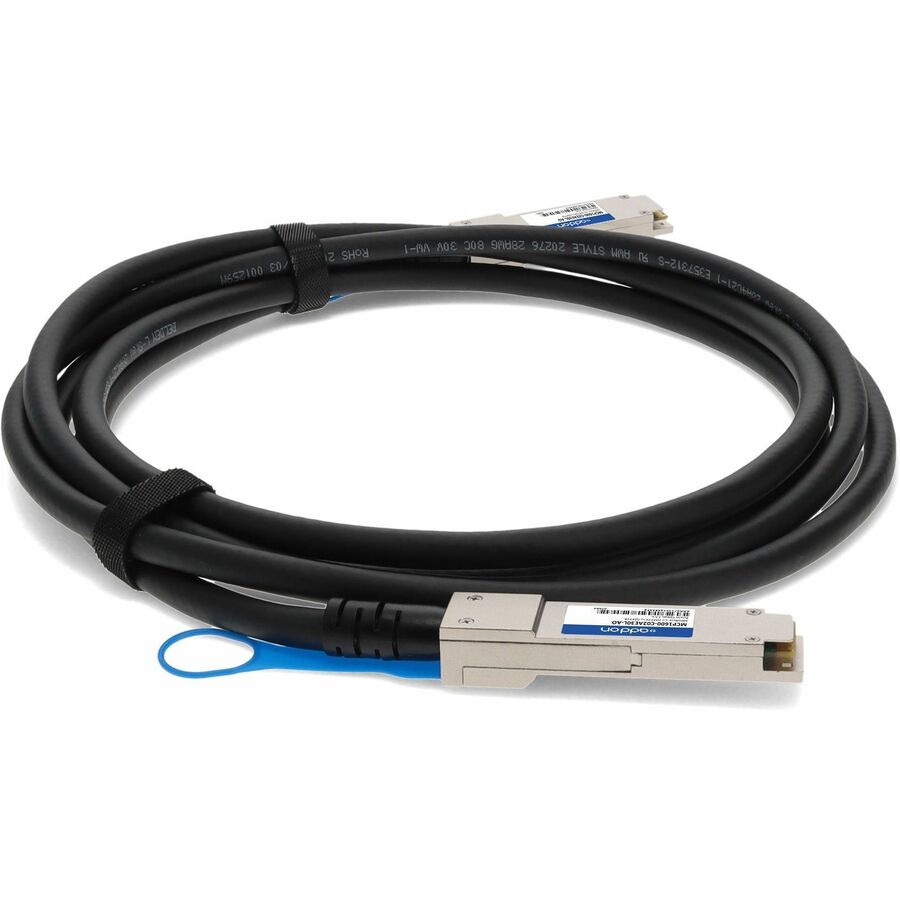

This is a Mellanox MCP1600-C02AE30L compatible 100GBase-CU QSFP28 to QSFP28 direct attach cable that operates over passive copper with a maximum reach of 2.5m (8.2ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

Highlights

  • Up to 100 Gbps bi-directional data links
  • AC coupled inputs and outputs
  • Compliant with QSFP28 MSA specifications
  • All-metal housing for superior EMI performance
  • Single power supply 3.3V, low power consumption
  • 100 Ohm differential impedance
  • ROHS Compliant
  • Operating Temperature: 0 to 70 Celsius

Specifications

Application/UsageData Transmission
Cable Length8.20 ft
Product TypeNetwork Cable
Data Transfer Rate100 Gbit/s
Device SupportedNetwork Device
Impedance110 Ohm
Manufacturer Part NumberMCP1600-C02AE30L-AO
Packaged Quantity1.0
Limited WarrantyLifetime
FeaturesPassive
ManufacturerAddOn
Product NameTwinaxial Network Cable
Brand NameAddOn
Country of OriginUnited States/United Kingdom
Cable TypeTwinaxial
Connector Type on First EndQSFP28 Network
Connector Type on Second EndQSFP28 Network
American Wire Gauge30 AWG
TAA CompliantYes
Connector on First End Details1 x QSFP28 Network
Connector on Second End Details1 x QSFP28 Network
Product MaterialCopper
Connector Gender on First EndMale
Connector Gender on Second EndMale
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
