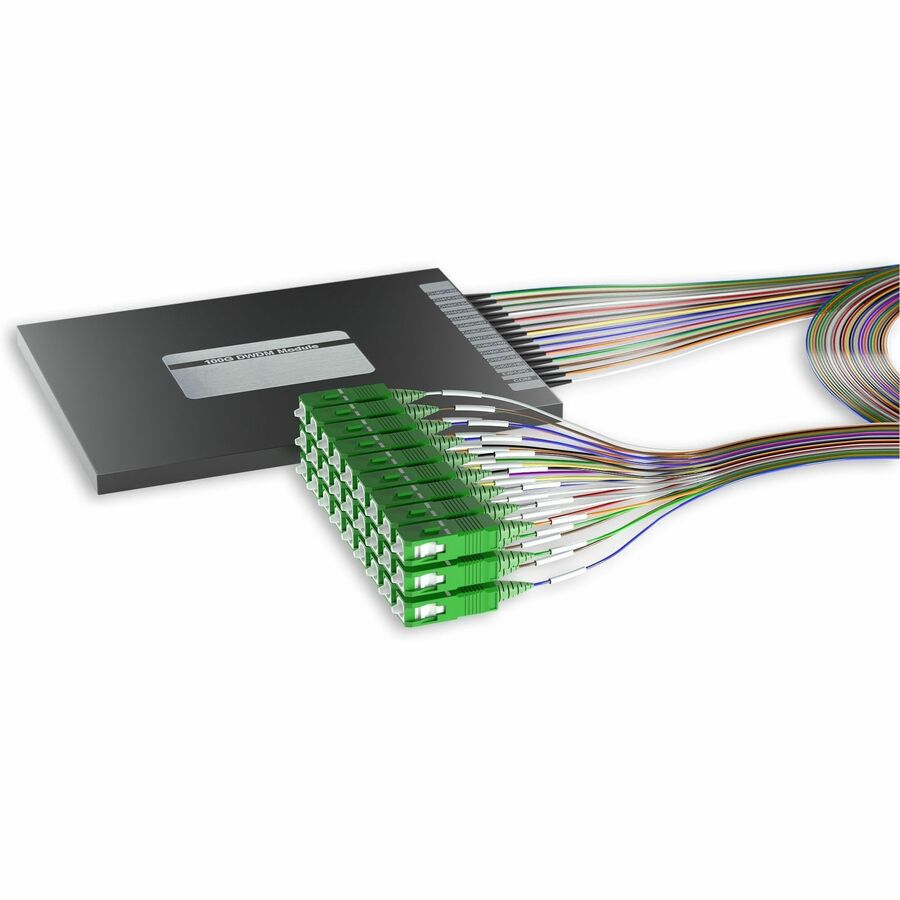

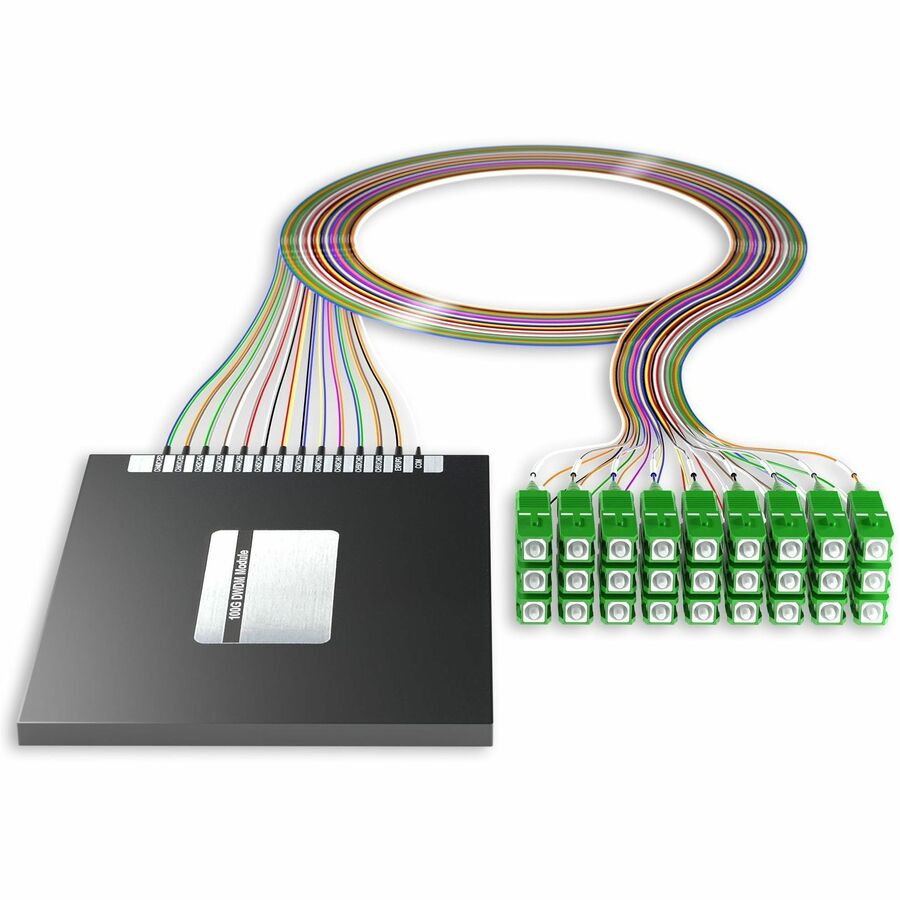

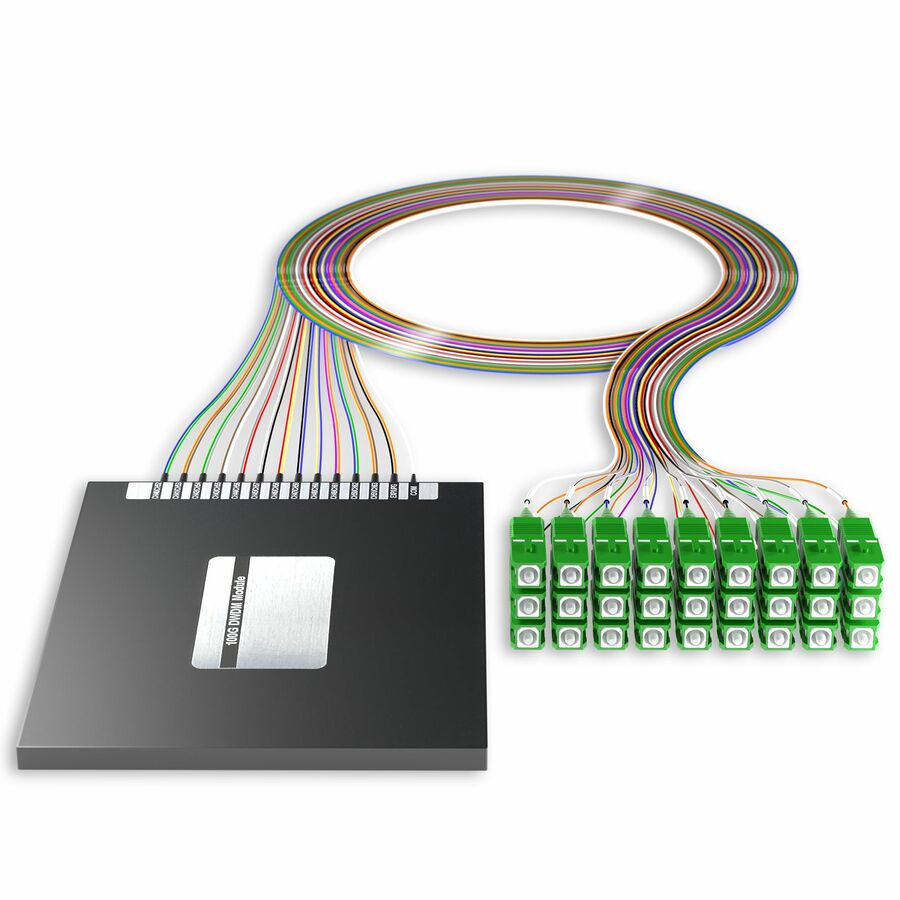

AddOn 24+2 Channel OSP DWDM Mux/Demux C40-C63 with Upgrade and Express Ports, SC/APC Connectors on 40in Single-Mode Pigtails

This 24-Channel DWDM Optical Passive Mux/Demux is engineered to maximize the capacity of existing fiber optic networks while minimizing the need for new fiber deployment. Operating with 100GHz channel spacing and supporting ITU channels C40-C63 (1525-1570nm range), this module enables the multiplexing or demultiplexing of four discrete wavelengths over a single-mode fiber. The unit includes both an Upgrade Port (UPG) and an Express Port (EXP) to ensure seamless scalability and future expansion. The UPG supports additional wavelengths within the 1525-1570nm range (excluding active channels), while the EXP accommodates O-band and L-band wavelengths (1260-1520nm and 1580-1620nm), providing a cost-effective path for network growth. Optimized for low signal attenuation, the DWDM channels deliver a maximum insertion loss of 3.4 dB, ensuring efficient signal performance across both active and expansion paths. Equipped with SC/APC connectors on 40-inch, 900um fiber pigtails, this DWDM Mux/Demux is optimized for outside plant environments (OSP) and easily integrates into standard fiber optic splice enclosures.
