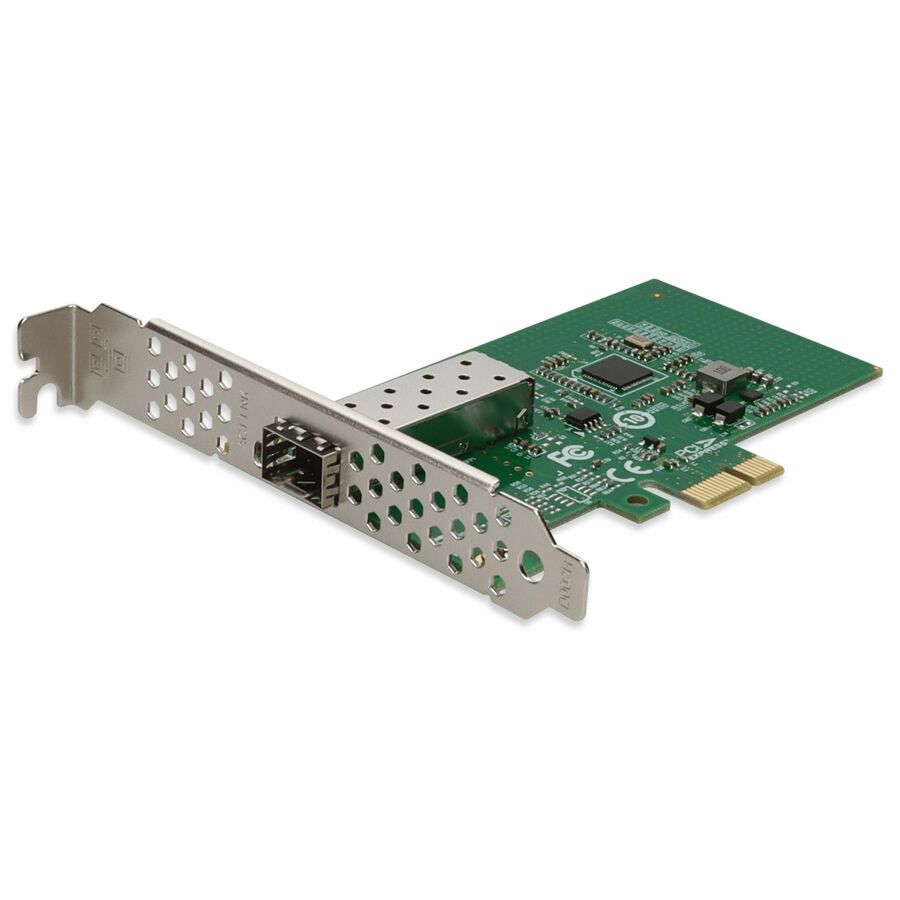

AddOn 1Gbs Single Open SFP Port PCIe 2.0 x1 Network Interface Card with Wake on Lan
PCI Express 2.0 x1 - 8 Gbit/s Data Transfer Rate - Intel I210 - Optical Fiber - Multi-mode, Single-mode - 1000Base-X - SFP - Plug-in Card
- SKU
- ADD-PCIE-1SFP-X1-V2
- Category
- Network Interface Cards
MSRP$228.50
$130.09
Save 43%Back ordered — ships when restocked.
Genuine AddOn through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- ADD-PCIE-1SFP-X1-V2
- Category
- Network Interface Cards
Overview
This is a Gigabit Ethernet PCIe 2.0 x1 network interface card with a single open SFP port that complies with IEEE 802.3 standards. It is based on an Intel I210 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 1Gbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The single open SFP port allows users to choose from a range of SFP transceivers to accommodate multi-mode (MMF) and single-mode (SMF) fiber, granting customizable reach. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time.
Highlights
- This Gigabit Ethernet card guarantees a replacement networking interface to client, server or workstation
- Enjoy superfast data transfer of up to 500 MB/s with PCI Express 2.0 x1 card, between the network card and motherboards
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
- With the 1000Base-X technology get up to 1000Mbps data transfer rate over the supported network cable
Specifications
| Package Contents |
|
|---|---|
| Host Interface | PCI Express 2.0 x1 |
| Product Type | Gigabit Ethernet Card |
| Device Supported | Server |
| Manufacturer Part Number | ADD-PCIE-1SFP-X1-V2 |
| Packaged Quantity | 1 |
| Weight (Approximate) | 3.20 oz |
| Form Factor | Plug-in Card |
| Manufacturer | AddOn |
| Product Name | Gigabit Ethernet Card |
| Network Technology | 1000Base-X |
| Brand Name | AddOn |
| Expansion Slot Type | SFP |
| Country of Origin | China |
| Height | 4.2" |
| Width | 0.8" |
| Depth | 3.7" |
| Chipset Manufacturer | Intel |
| Chipset Model | I210 |
| Maximum Operating Distance | 328.08 ft |
| Maximum Data Transfer Rate | 8 Gbit/s |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode, Single-mode |
| Total Number of Expansion Slots | 1 |
| TAA Compliant | No |
